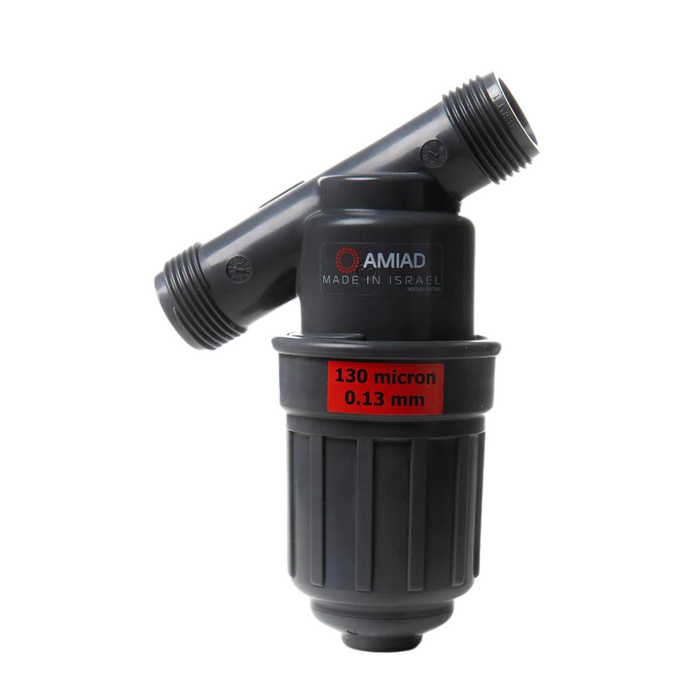

Amiad 25mm Tagline Polypropylene Filters
25mm Tagline Polypropylene Filters
Tagline filters are high quality all plastic agricultrual irrigation filters with screen or disc elements for a wide range of applications.
The Tagline filters are made from high quality engineered plastic materials providing excellent mechanical strength, durability and ease of installation.
- Easy maintenance; No tools required for extracting the elements from the filter housing for rinsing
- High quality, excellent mechanical strength and corrosion resistance
- Low pressure loss
- Interchangeable filter elements for wide range of flow rates, various filtration degrees and irrigation applications
- Screen cylinders or Disc elements
Screen Elements: The screen elements are constructed of molded plastic ribs that support a stainless steel weave-wire or weaved nylon mesh for a filtration range of 80 to 300 micron. The direction of flow in the screen elements is from the inside out. Suspended solids accumulate on the inner side of the screen. The screen can be easily extracted from the filter housing for manual rinsing. The screen elements are designed for creating very low head loss, retention of organic substances and are especially suitable for separating inorganic particles. The screen cylinder incorporates two O-rings to ensure perfect sealing inside the filter housing.
Disc Elements: The disc elements are made to provide high retention of organic substances and are constructed from plastic discs that are stacked onto a telescopic core. The discs are grooved on both sides and intersect to form the filtration element when compressed on the telescopic core. The disc element incorporates two O-rings to ensure perfect sealing inside the filter housing. The direction of flow in these elements is from the outside - in along the element, therefore the effective filtration area is comprised of both the outside surface and the channels formed by the intersected grooves. Suspended organic particles adhere to the grooved surface adding depth to the filtration process. Cleaning the disc element is made simple by the unique design of the telescopic core which allows the discs to separate during the cleaning process while maintaining perfect sealing when the element is in the filter housing.
With their Screen and Disc elements, Amiad TAGLINE filters are made for wide range of irrigation applications. The TAGLINE filters are available in various filtration degrees to cover the needs of modern irrigation systems. TAGLINE filters are made from high quality engineered plastic materials providing excellent mechanical strength, durability and ease of installation. Amiad’s TAGLINE filters are easy to maintain; no tools are needed for extracting the filter element from the filter housing for rinsing.
