TH 3" 0.50kW Submersible Solar Bore Pump Complete Kit with x4 200W Solar Panels & 40m Cable - FREE SHIPPING AUSTRALIA-WIDE

This solar pump package is suitable for bore deep from 20m-80m. Daily water flow base on 6-8 hours peak sun per day in winter and 8-10 hours in summer. This pump is suitable for 3" or large bore. It used for pumping water from rivers, dams, creeks and springs and transferring water from one site to another.

Installation is effortless with a simple plug-and-go setup, and once installed, it operates at no additional cost. These helical rotor pumps eliminate the need for expensive inverters and batteries to function; however, the controller allows for the integration of storage batteries if desired.

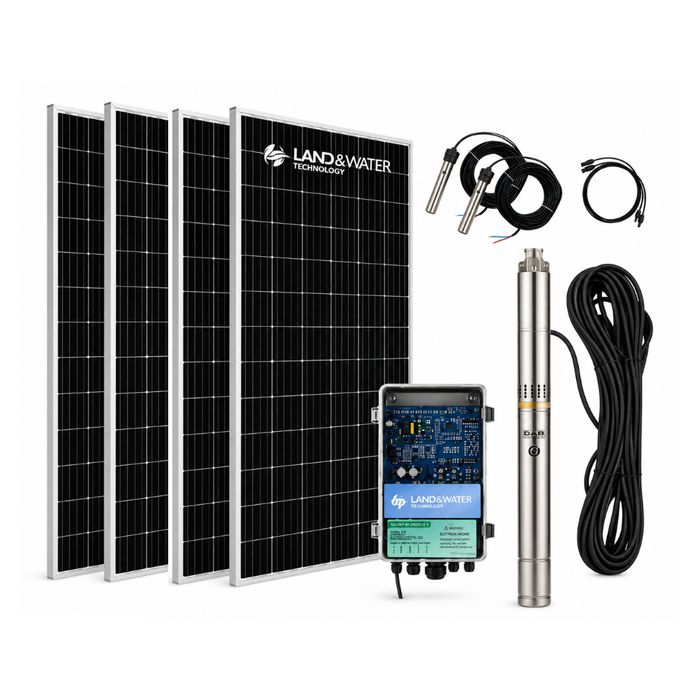

INCLUSIONS

• 3" 500W/48V stainless steel solar pump with 40M fitted power cable
• 4 x 200W mono crystalline A grade solar panels (Dimension: 1580 x 808 x 35mm.  Weight: 16Kg)
• 1x Auto control box
• 1x Spare helical screw rotor
• 2x 2m MC4 cable extension for solar panel connect to control box
• 1x 40m & 10m combined water sensor (one for bore and other for water tank)
• 2x MC4 Y connectors
• User manual
• 24 months Warranty
• Free Delivery in Australia

EXCLUSIONS

• Stainless Steel Wire (safety cable)
• Panels frames to support solar panels
• Poly pipe from pump to water tank

PUMP SPECIFICATIONS

Heads             L/min                        Gallon/h

80m                         7L                               93
70m                         10L                             133
60m                         16L                             213
50m                         20L                             266
30m-40m                 24L                             320
10m-20m                 30L                             400

Pump recommended to run under 80m dynamic head.

• Pump power:  500W/48V-DC
• Pump type:     Helical screw rotor
• Outlet:             3/4"
• Weight:           13kg
• Dimension:    76mm x 450mm
• Submerge depth:    <30m

AUTO CONTROL BOX SPECIFICATIONS

• Water level control of tank and bore by sensors
• Motor speed adjustable
• Low power protection
• Solar and/or batteries power input option
• MPPT Maximum Power Point Tracking system
• Allow input power voltage up to 100V/DC (solar panel open circuit maximum voltage)
