Bianco Summit VMS20 Series 304ss Vertical Multistage Variable Speed Packaged Pump Station with NXT VFD Drive (Max 470LPM)

The Bianco Summit VMS20 Series Variable Speed Packaged Pump Station is the ultimate high-capacity pressure boosting solution for large-scale commercial, industrial, and irrigation systems. Delivering a maximum flow rate of 470 litres per minute, this system is built for performance, efficiency, and advanced control in the most demanding water supply environments.

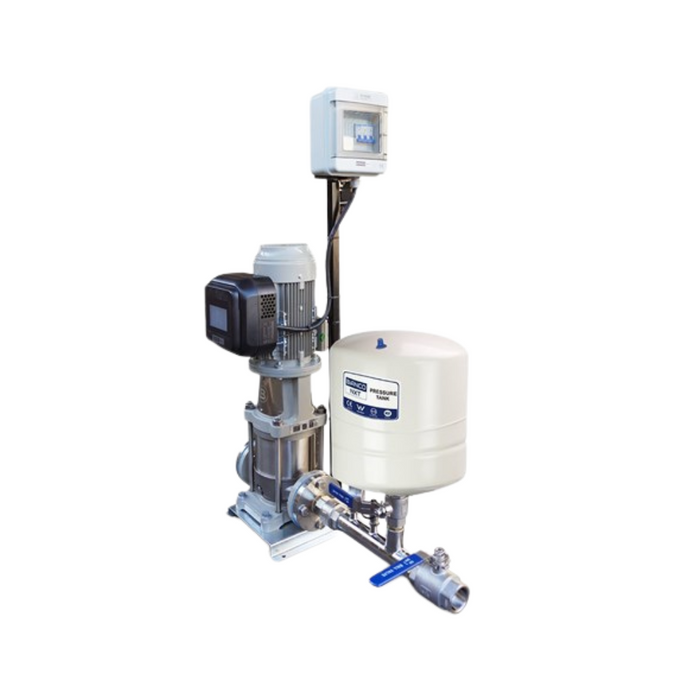

At its core is the heavy-duty Bianco VMS20 vertical multistage pump, constructed from 304 stainless steel for long-lasting durability, corrosion resistance, and high-pressure capability. The station comes fully assembled on a galvanised steel base and includes a stainless steel manifold, WaterMarked spring check valve, stainless steel isolation ball valve, a 30-bar liquid-filled pressure gauge, and a 10-bar rated stainless steel pressure tank with isolating valve.

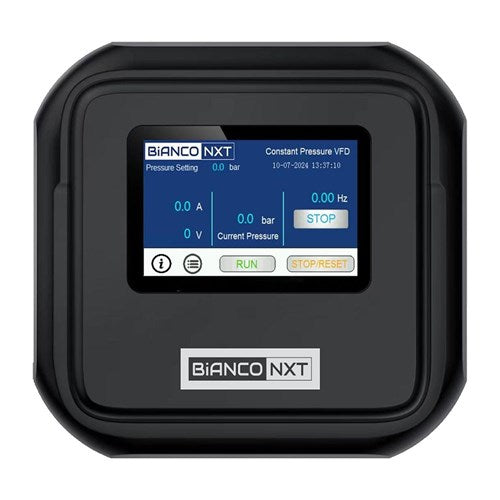

Precision control is delivered by the Bianco NXT DRIVE—a powerful Variable Frequency Drive that automatically adjusts motor speed to maintain constant pressure in response to real-time demand. With a full-colour touchscreen interface, intuitive setup wizard, and real-time diagnostics, the NXT DRIVE offers both ease of use and advanced system protection. Paired with a 4–20mA pressure transducer, it provides exact pressure control while minimising energy usage and wear.

With soft-start functionality, intelligent fault protection, and high output capacity, the VMS20 Series is ideal for installations where pressure stability, flow performance, and efficiency are critical.

KIT INCLUDES

• VMS Pump
• NXT Drive (Variable Frequency Drive)
• Counter Flange (in DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• Pressure Transducer
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single/Double/Triple Base
• Ball Valve (304 Stainless Steel)
• Pressure Tank Included in Scope of Supply

FEATURES

• Complete variable speed pressure pump system
• NXT DRIVE with full-colour touchscreen and intuitive setup
• 4–20mA pressure transducer for accurate constant pressure control
• High-efficiency 304 stainless steel pump, shaft, and impellers
• Includes galvanised base, SS manifold, check valve, and isolation valves
• 10-bar stainless steel pressure tank with isolator
• VFD enables soft-start, energy saving, and system protection
• IP55-rated, fan-cooled motor with Class F insulation
• Operates in temperatures from -15°C to +120°C and pressures up to 33 bar

APPLICATIONS

• Variable speed pressure boosting for residential and commercial sites
• Water supply with stable pressure for irrigation systems
• Energy-efficient booster setups for multi-storey buildings
• Water transfer requiring constant pressure delivery
• Compact plant rooms or systems requiring VFD integration

MODELS
