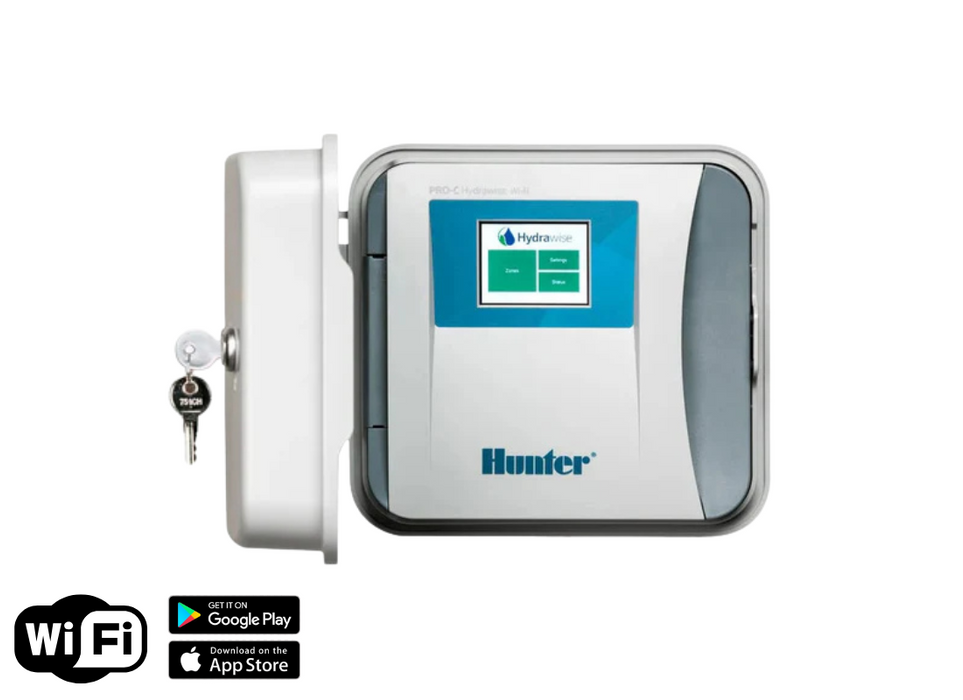

Hunter HPC Hydrawise™ 4 Station Next Generation Modular WIFI Irrigation Controller and Modules (Expandable to 23 Stations)

The Hunter HPC combines the modularity of the trusted Pro-C™ Controller with the advanced power of Hydrawise™ software, creating a next-generation smart irrigation solution. Perfect for contractors and homeowners alike, the HPC controller helps save time, conserve water, and protect landscapes while meeting the growing demand for smart home integration.

Equipped with a vibrant 4" full-colour touchscreen display, the HPC offers an intuitive, user-friendly interface for easy programming directly at the control panel. With built-in Wi-Fi, it connects seamlessly to Hydrawise™ software for remote management, real-time alerts, and Predictive Watering™ adjustments based on local weather data. For added flexibility, the HPC is compatible with Hunter’s ROAM and ROAM XL remotes for quick on-site control.

Designed to grow with your landscape, the HPC is expandable from 4 to 23 stations with plug-in modules, and up to 32 stations with the optional Hybrid EZ Decoder system. It also features a built-in milliamp sensor for automatic wire fault detection, reducing troubleshooting time in the field. When paired with an HC Flow Meter, users can track total system and zone-specific water use, and receive alerts for leaks or broken sprinklers.

The HPC is EPA WaterSense certified and supports integration with Amazon Alexa™ for convenient voice control. Whether for residential or light commercial projects, it’s the ultimate balance of flexibility, efficiency, and smart irrigation control.

FEATURES

• 4-station base model, expandable up to 23 stations with modules
• Hybrid EZ Decoder system option up to 32 stations (28 stations max two-wire only)
• Standard programming: 6 independent programs with 6 start times each
• Advanced programming: station-based with up to 6 total start times
• 2 sensor inputs for Clik Sensors or HC Flow Meters
• 1 P/MV output for pump start relay or master valve
• Wi-Fi enabled for Hydrawise™ smart irrigation management
• Built-in milliamp sensor for wire fault detection and alerts
• 7 cm (4") full-colour touchscreen display
• Compatible with ROAM and ROAM XL remotes


ELECTRICAL SPECIFICATIONS

• Transformer input: 120 or 230 VAC
• Transformer output: 24 VAC, 1 A
• Station output: 24 VAC, 0.56 A
• P/MV output: 24 VAC, 0.28 A
• Wi-Fi: 2.4 GHz (802.11 b/g/n, 20 MHz)
• Security protocols: WPA/WPA2 Personal, TLS, SSL
• Approvals: IP44 (outdoor), UL, cUL, FCC, CE, UKCA, RCM, ISED
• Warranty: 2 year
