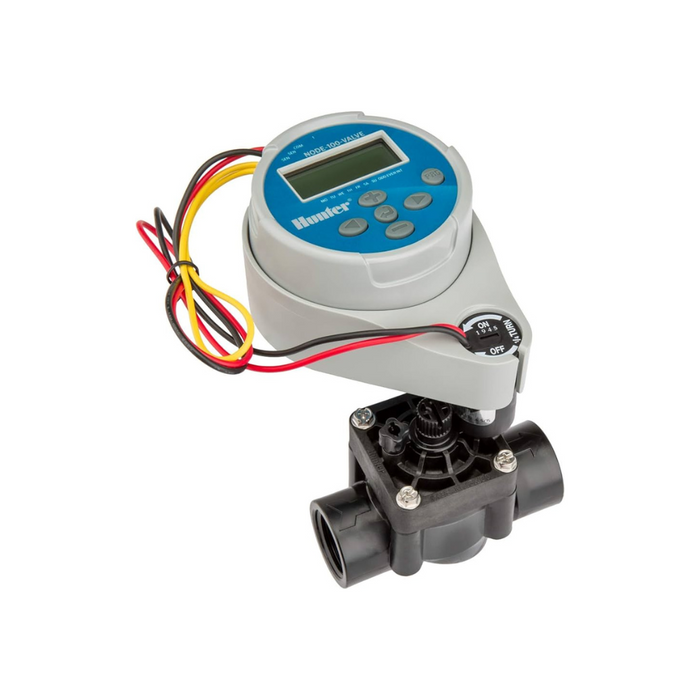

Hunter Node 100 DC Battery Operated Irrigation Controller with PGV-101G-B and DC Coil

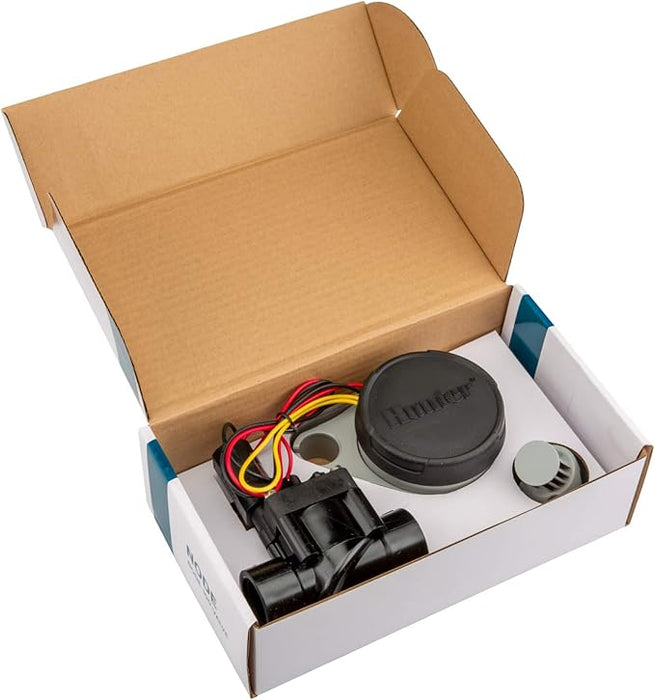

Designed for remote locations or power-restricted areas, the Hunter Node-100DC is a compact, battery-operated irrigation controller that delivers reliable performance where it's needed most. This unit comes complete with a Hunter PGV101GB 25mm FBSP solenoid valve, pre-fitted with a DC latching coil—making it a true plug-and-play solution.

The controller mounts directly onto the valve without the need for screws, drilling, or additional wiring. Its rugged, waterproof (IP68-rated) body is built to withstand tough environments such as valve boxes and underground enclosures.

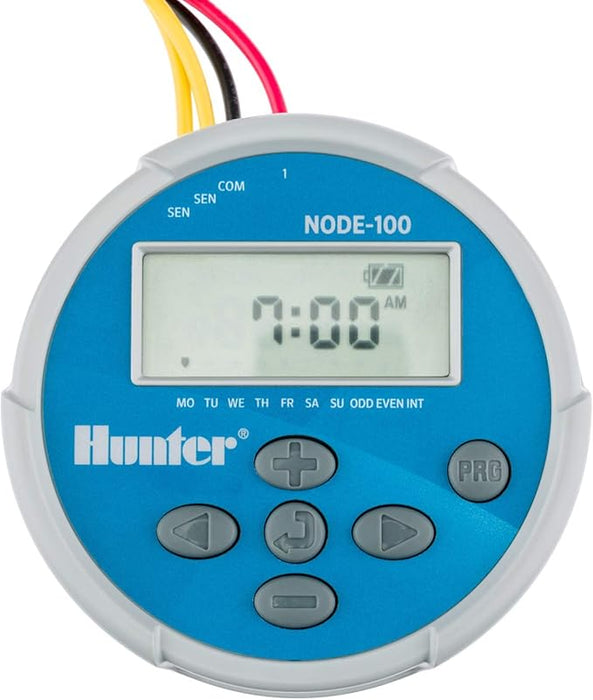

Powered by one or two 9V batteries—or an optional solar panel—the Node provides long-lasting irrigation control through the season. With an intuitive LCD interface and familiar Hunter programming, setup and operation are a breeze.

FEATURES:

• Battery powered (1 or 2 x 9V batteries for extended runtime)

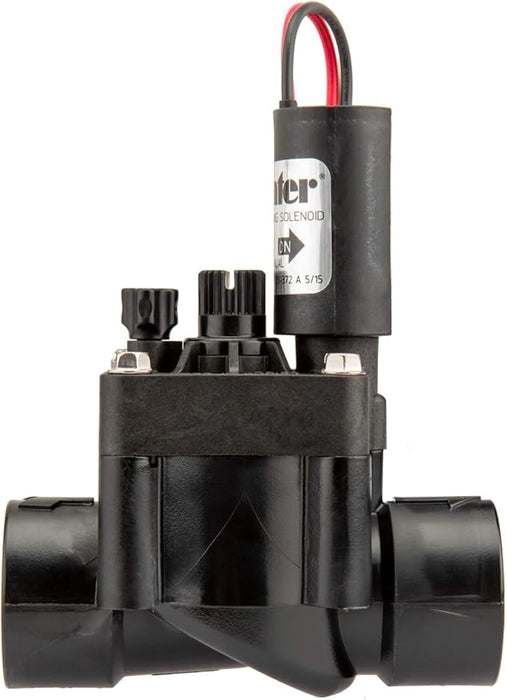

• Includes Hunter PGV101GB 25mm FBSP valve with DC latching solenoid
• Fixed type: 1 station
• 3 independent programs, each with 4 start times
• Maximum station run time: 6 hours
• Waterproof, outdoor-rated enclosure (IP68 – submersible up to 3.5 m)
• Manual cycle and programmable off setting
• Master valve control (available in 2, 4, 6 station models)
• Compatible with SPNODE Solar Panel Kit for maintenance-free operation
• Sensor-ready with input for Hunter Clik or other micro-switch sensors
• Battery life indicator built in
• Solenoid wire length up to 30 m (18 AWG)
• 2-year manufacturer warranty


ADVANCED FEATURES:

• COMPATIBLE WITH SOLAR PANEL KIT - The Solar Panel eliminates the need for batteries and provides maintenance-free operation by harnessing the sun's energy or ambient light to fully power the controller 24 hours a day, 7 days a week, for years on end. This "eco-innovations" alternative is more environmentally friendly and saves on battery costs.
• EASY RETRIEVE™ MEMORY - A manual back-up utility that stores complete controller scheduling and setup information in back-up memory. This allows the saved watering schedule to be restored at any time. This can be used to set a controller back to its initial settings after tampering or at the beginning of a new season.
• GLOBAL SEASONAL ADJUSTMENT - This feature allows for quick adjustments to irrigation run times through a percentage scale. During peak season, set the seasonal adjustment to 100%. If weather conditions require less water, enter the appropriate percentage value (i.e. 50%) to cut down irrigation run times without the need to adjust each station in the program.
• SENSOR COMPATIBILITY - Node is compatible with hard-wired Hunter Clik sensors and other micro-switch type weather sensors for enhanced efficiency.
• BATTERY LIFE INDICATOR - All units include a clear display of available battery life so users can accurately schedule for replacement.
• WATERPROOF BODY (NODE) - Rugged shell casing makes the NODE waterproof up to 3.5 m (IP68 rated)

SPECIFICATIONS:

• Electrical Specifications
  • Sensor inputs: 1
  • Operates DC latching solenoids (only) 9-11 VDC
  • Operating temperature: -18º C to 66º C
  • Power source: 9-volt battery (up to two) or Solar Panel
• Optional
  • DC Latching solenoids (P/N 458200)
  • Solar Panel Kit (P/N 458200) eliminates the need for batteries and provides maintenance free operation
• Approvals

  • IP68, CE, FCC, C-tick
