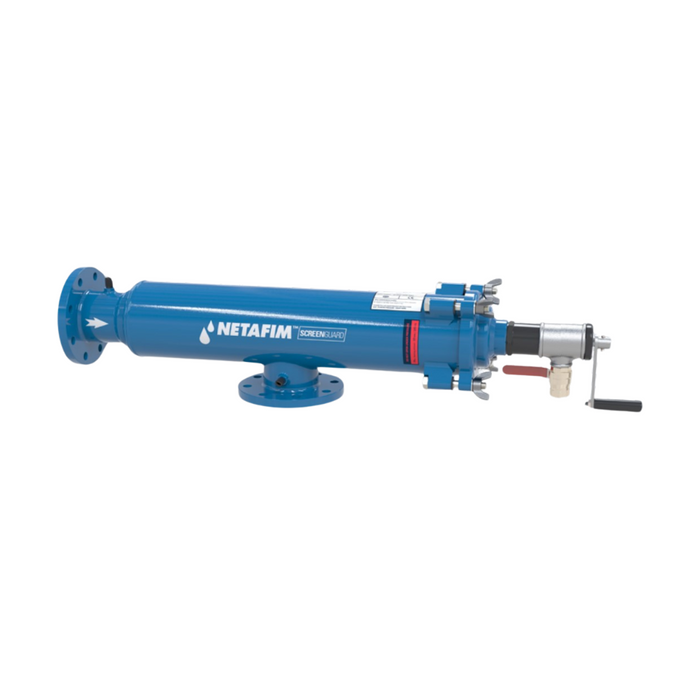

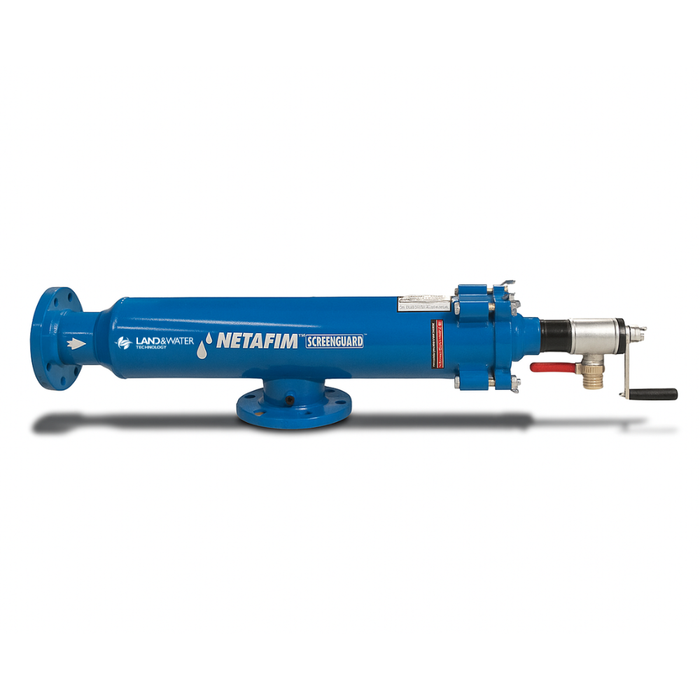

Netafim ScreenGuard 50mm Semi Automatic On Line Metal Screen Filters with 850cm² Filtration Area

The Netafim ScreenGuard™ 50mm Semi-Automatic On Line Metal Screen Filter is a robust and efficient solution for primary and secondary filtration in various irrigation and water treatment applications. Built for reliability and longevity, this filter combines a large filtration area with an innovative semi-automatic cleaning mechanism. With high corrosion and UV resistance, it is ideally suited for challenging environments and harsh water conditions, ensuring uninterrupted operation and reduced maintenance.

This filter model features an 850 cm² filtration area, suitable for maximum recommended flow rates of up to 25 m³/h. Its semi-automatic cleaning handle allows for quick and effortless cleaning of the stainless-steel 316L screen without interrupting the irrigation process or disassembling the unit. The dual-layer coated filter housing ensures exceptional resistance to corrosion and UV degradation, offering lasting performance in the field.

FEATURES

• Large Filtration Area (850 cm²)
  Provides extended intervals between cleaning, reducing labour and operational costs even with poor water quality.
• Semi-Automatic Cleaning
  Allows perfect cleaning of the screen with a simple turn of the handle — no disassembly, no process disruption.
• Superior Durability
  The filter screen is molded with stainless steel 316L for extended service life and reliable operation.
• Outstanding Corrosion and UV Protection
  Filter housing features a dual-layer coating, providing superior resistance in corrosive and high-UV environments.
• Flexible and Versatile
  Available with BSP, NPT, or VIC connections to suit diverse system requirements.
• High Pressure & Flow Compatibility
  Designed for up to 10 bar operating pressure, supporting demanding irrigation and water treatment systems.

BENEFITS

• Quick & easy cleaning — semi-automatic mechanism simplifies maintenance

• Longer life span — robust materials resist corrosion and UV damage

• Flexible installation — multiple connection types for easy integration

• Low maintenance cost — fewer cleaning cycles, minimal downtime
• Screen: Stainless steel 316L mesh
• Housing: Dual-layer coated metal body for superior UV and corrosion protection
• Connections: BSP / NPT / VIC (grooved)

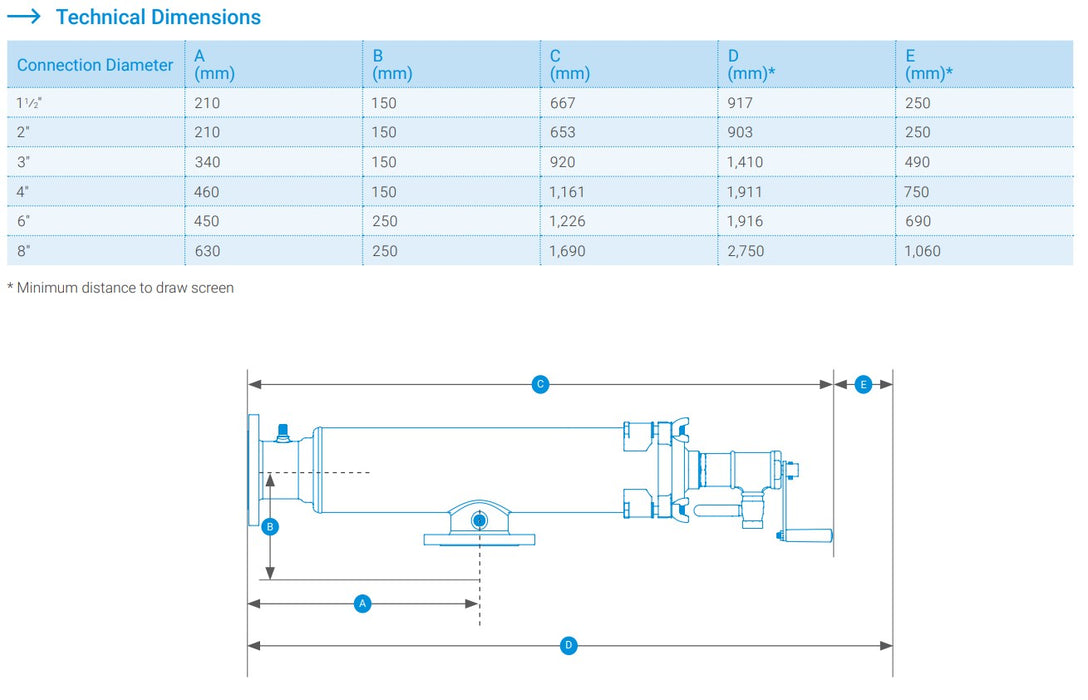

SPECIFICATIONS

APPLICATIONS

• Primary filtration for smallholders using well water or single-use dripperline applications
• Primary filtration for landscaping systems
• Secondary filtration for media filter systems and sand separators
• In-field secondary filtration for enhanced protection
