NDS 124BCB Commercial Rectangular Large Valve Box (699mm Width x 1035mm Long x 381mm Deep) - PERTH PICKUP ONLY

NDS 124BCB Commercial Rectangular Large Valve Box (699mm Width x 1035mm Long x 381mm Deep) - PERTH PICKUP ONLY

by Norma
PN: 124BCB
Sale Sale
$711.72
$711.72 - $782.89
$711.72
$559.00
$559.00 - $610.00
$559.00

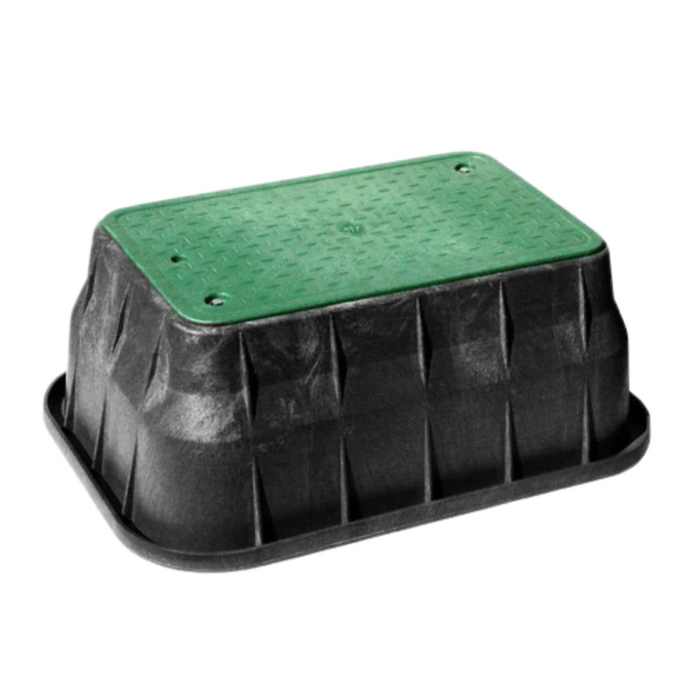

NDS 124BCB Large Rectangular Commercial Valve Box with Bolt-Down Reinforced Lid Perth

The NDS 124BCB is a high-capacity rectangular valve box from the Pro-Spec™ series, purpose-built for demanding commercial and municipal irrigation applications. With a substantial footprint and reinforced construction, this box is ideal for housing large valve manifolds, backflow prevention devices, or utility junctions that require durable, secure, and accessible in-ground protection. Constructed from 90% recycled structural foam and UV-stabilised for long-term outdoor use, the box features a reinforced double-wall top cover seat, 20 internal support ribs, and a 304 stainless steel bolt with brass nut for lid security.

Please note: This item is available for Perth pickup only and cannot be shipped.

FEATURES

  • Heavy-duty bolt-down lid for security and tamper resistance
  • Overlapping lid design prevents dirt and debris ingress
  • 20 structural ribs on the underside of the lid seat enhance strength and load capacity
  • 1" bottom flange improves ground stability and reduces shifting
  • UV-stabilised to withstand harsh outdoor conditions without fading or cracking
  • Injection-moulded from 90% recycled structural polyolefin foam
  • Supplied with stainless steel bolt and brass nut for corrosion-resistant fastening
  • Compliant with high-demand commercial and specification-grade requirements

SPECIFICATIONS

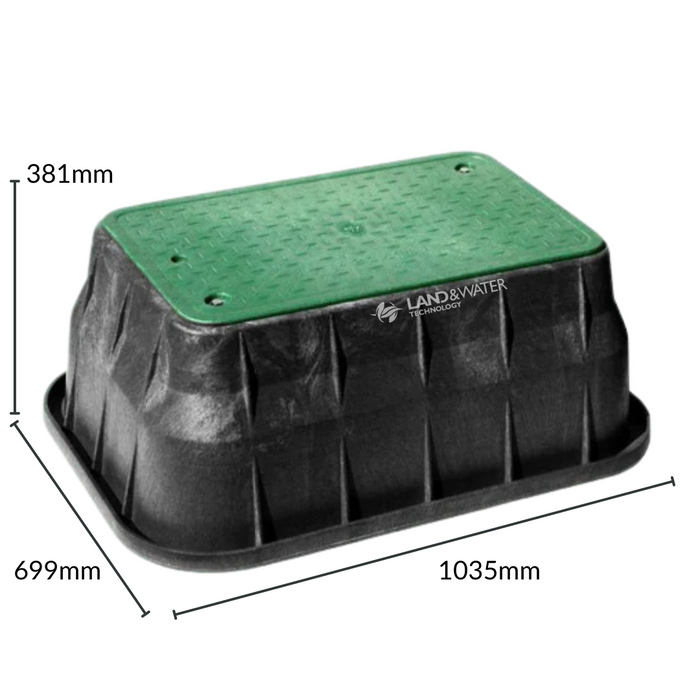

  • External Dimensions: 1035mm (L) x 699mm (W) x 381mm (H)
  • Wall Thickness (minimum): 8.1mm (0.320")
  • Cover Thickness (average): 8.9mm (0.350")
  • Flange Thickness: 25.4mm (1.000")
  • Lid Seat Reinforcement: 20 ribs @ 6.35mm (0.250") thick
  • Lid Fastening: 3/8" 304 stainless steel bolt with brass nut
  • Material: Recycled structural foam polypropylene
  • Colour: Black body with green or black lid (varies by configuration)
  • Load Rating: Medium to heavy duty (non-vehicular and utility zones)

APPLICATIONS

  • Commercial irrigation manifold protection
  • Housing large backflow preventers or water meter arrays
  • Municipal, council, and utility infrastructure projects
  • Heavy-use landscaped areas requiring secure valve access
