MAIT Tank Remote Data Collection Kit via Next G Mobile Network

Collect data remotely using the Next G mobile network. The MAIT server stores data from the field site(s), which can then be downloaded onto a client's PC for viewing using iNTELLiLogger software. Multiple logging sites can be connected through cable or radio using the iData web gateway.

Experience real-time, secure data monitoring of liquid levels, temperature, and tank parameters with the MAIT Tank Remote Data Collection Kit. Utilizing the Next G Mobile Network, our cutting-edge solution delivers continuous data flow to your dashboard, helping you make informed decisions quickly and efficiently, all while reducing on-site visits and operational costs.

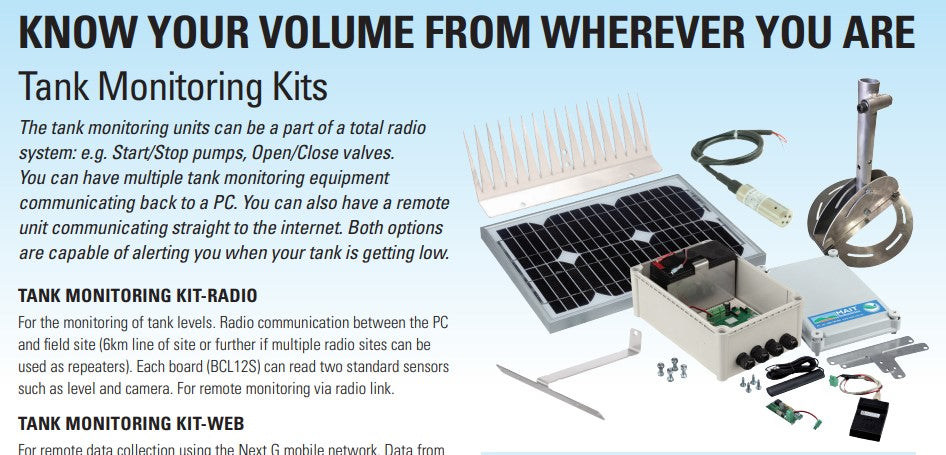

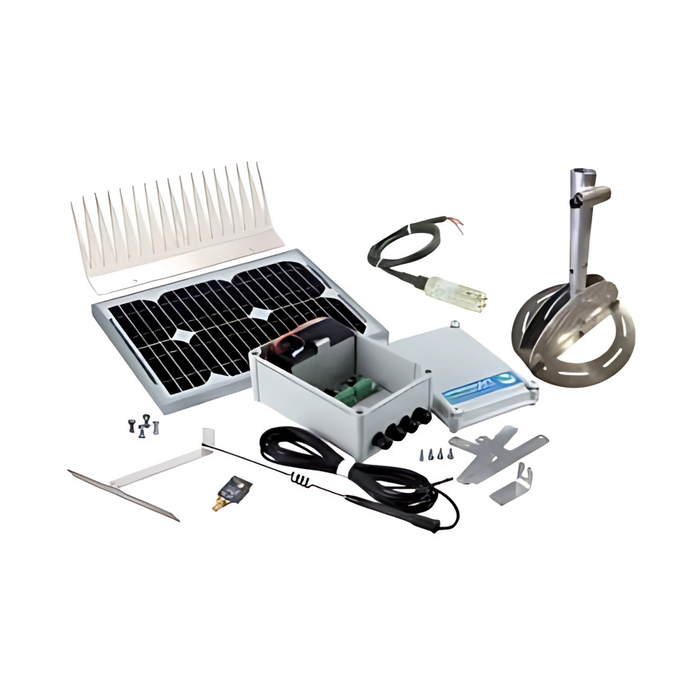

KIT INCLUDES

• MAIT Sensor Unit (customizable for your tank type)
• Next G Mobile Transmitter with SIM setup
• Solar Panel or Battery Pack (as per configuration)
• Mounting Accessories
• Quick Start Guide & Online Portal Access

FEATURES

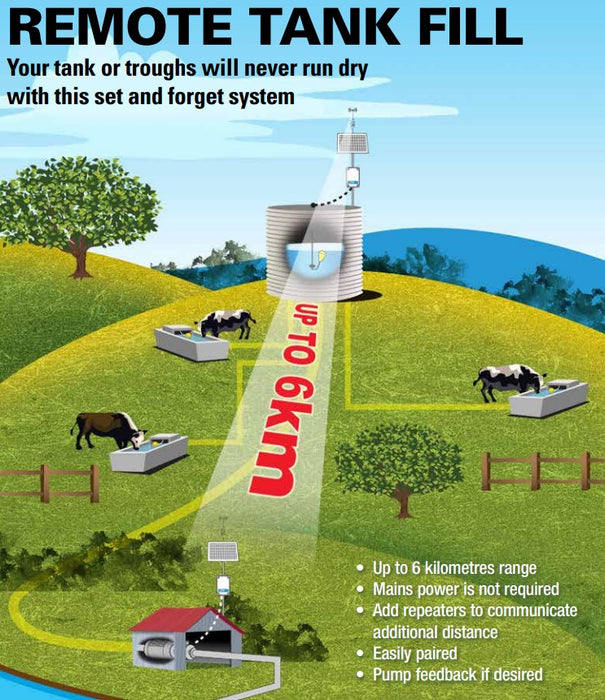

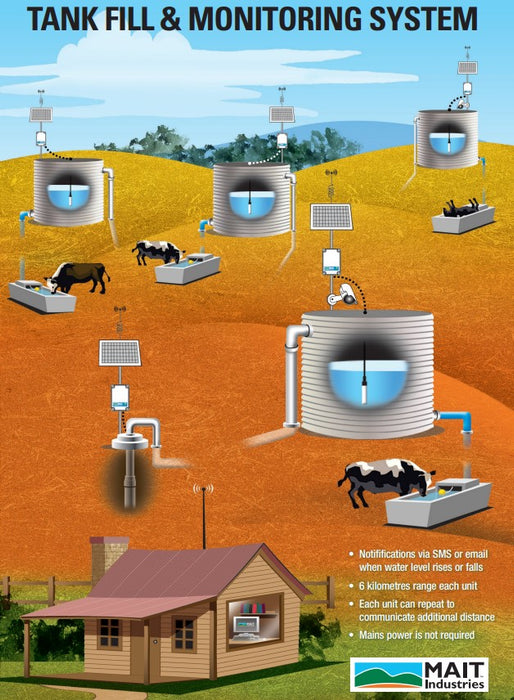

• 6 kilometres range each unit
• Each unit can repeat to communicate additional distance
• Mains power is not required
• Start/Stop pumps
• Open/Close Valves

APPLICATIONS

• Agricultural Water & Fertilizer Tanks
• Firefighting Water Reserves
• Construction Site Fuel or Water Tanks
• Industrial Fluid Storage Systems
• Municipal Water Management

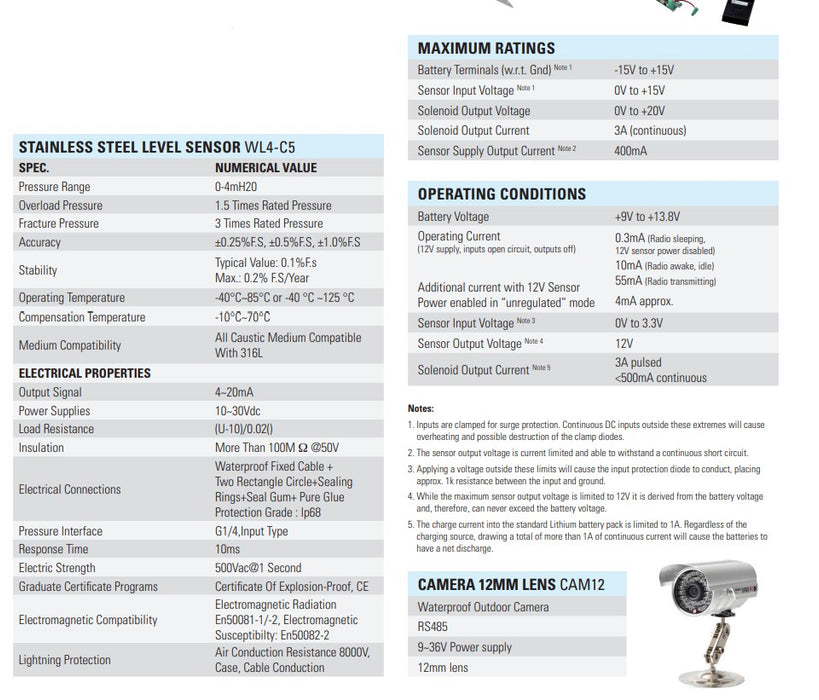

SPECIFICATIONS

STAINLESS STEEL LEVEL SENSOR WL4-C5

• Pressure Range: 0-4mH20
• Overload Pressure: 1.5 Times Rated Pressure
• Fracture Pressure: 3 Times Rated Pressure
• Accuracy ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
• Stability
  • Max.: 0.2% F.S/Year
  • Typical Value: 0.1%F.s
• Operating Temperature -40°C~85°C or -40 °C ~125 °C
• Compensation Temperature -10°C~70°C
• Medium Compatibility: All Caustic Medium CompatibleWith 316L

ELECTRICAL PROPERTIES

• Output Signal 4~20mA
• Power Supplies 10~30Vdc
• Load Resistance (U-10)/0.02()
• Insulation More Than 100M Ω @50V
• Electrical Connections
  • Waterproof Fixed Cable +
  • Two Rectangle Circle+Sealing
  • Rings+Seal Gum+ Pure Glue
  • Protection Grade : Ip68
• Pressure Interface G1/4,Input Type
• Response Time 10ms
• Electric Strength 500Vac@1 Second
• Graduate Certificate Programs: Certificate Of Explosion-Proof, CE
• Electromagnetic Compatibility
  • Electromagnetic Radiation
  • En50081-1/-2, Electromagnetic
  • Susceptibilty: En50082-2
• Lightning Protection Air Conduction Resistance 8000V Case, Cable Conduction

OPERATING CONDITIONS

• Battery Voltage +9V to +13.8V
• Operating Current:(12V supply, inputs open circuit, outputs off)
  • 0.3mA (Radio sleeping,
  • 12V sensor power disabled)
  • 10mA (Radio awake, idle)
  • 55mA (Radio transmitting)
• Additional current with 12V Sensor Power enabled in “unregulated” mode
  • 4mA approx
• Sensor Input Voltage: 0V to 3.3V
• Sensor Output Voltage: 12V
• Solenoid Output Current: 3A pulsed <500mA continuous
