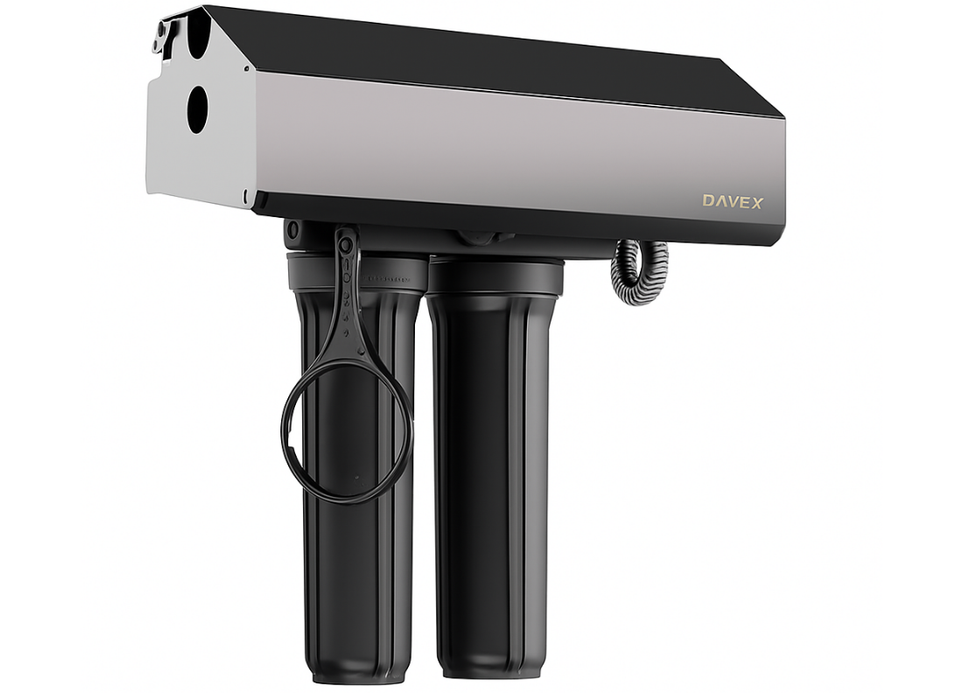

Davey KAQ-S AquaSheild Smart Dual Stage Ultraviolet Water Filtration System 20" x 4.5" With Cover (84LPM)

The Davey KAQ-S AquaShield Smart Dual Stage UV System with Protective Cover delivers reliable whole-house water purification for properties using rainwater, bore water, or surface water supplies. Designed to safeguard homes where water quality varies throughout the year, this system combines high-capacity dual filtration with powerful ultraviolet disinfection to produce safe, clean, great-tasting water for every tap.

A key advantage of the With Cover model is its fully enclosed weather-resistant housing, engineered to protect the UV chamber and filters from sunlight, dirt, and environmental exposure. This makes it ideal for outdoor installations, pump sheds, tank stands, and exposed service areas where equipment protection and longevity are essential.

Offering a generous 84 LPM flow rate, long-life UV lamp performance, and a user-friendly Smart controller, the AquaShield system is built for dependable water quality and low-maintenance operation—no chemicals, no taste alteration, and no complicated servicing.

FEATURES

• Dual-stage jumbo filtration
  20" x 4.5" sediment and carbon cartridges deliver effective particulate, taste, odour, and colour reduction while protecting the UV chamber from fouling.
• High-output UV disinfection
  A 316L stainless steel axial-flow UV chamber neutralises bacteria, viruses, cysts, and pathogens without added chemicals.

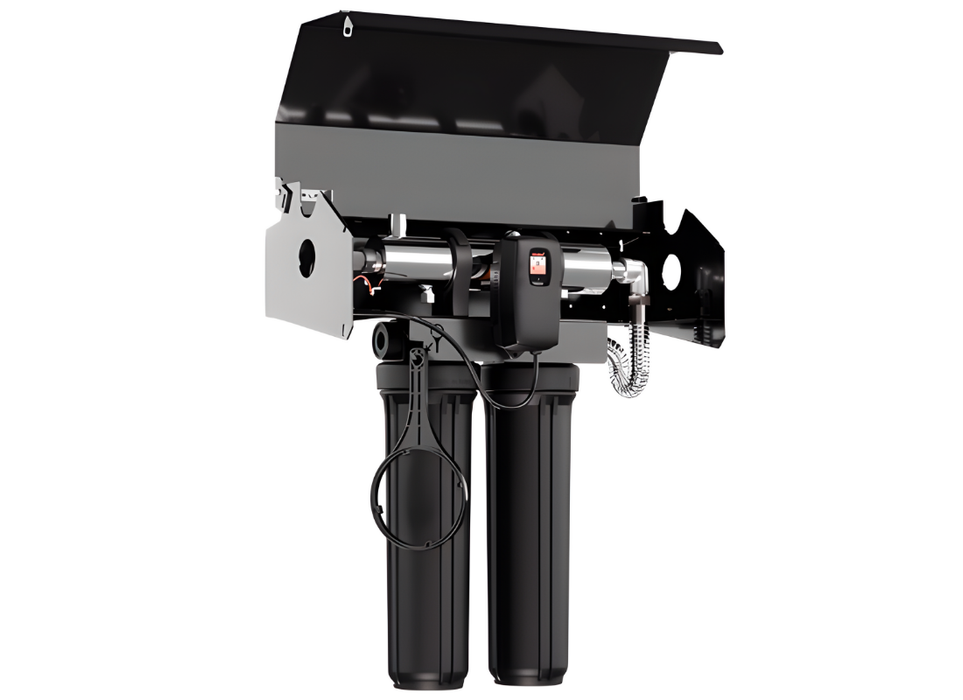

• Integrated weatherproof protective cover
  Shields the filtration system from UV exposure, moisture, splashing, dust, and debris—ideal for outdoor or exposed installations.
• Smart system controller
• Tricolour LED system indicator
• Lamp-life countdown display
• Audible/visual UV lamp replacement alerts
• Simple plug-and-play operation
• Pre-assembled single manifold design
  Factory-assembled for faster installation and minimal leak points.
• Long-life UV lamp
  10,000-hour high-performance lamp for extended service intervals.
• High pressure rated
  Maximum operating pressure of 827 kPa (120 psi).
• Serviceable without draining
  Stainless steel UV chamber allows lamp and sleeve replacement while the system remains full.

STAGE 1: 20 MICRON POLY PLEATED CARTRIDGE

• Poly Pleated sediment cartridges have the advantages of a high dirt holding ability with a low pressure drop. They are also economical as they can be cleaned and reused.
• Helps remove:
  • Sediment
  • Rust
  • Scale

STAGE 2: 1 MICRON POLYSPUN CARTRIDGE

• For finer sediment removal, commonly used in the 2nd stage of filtration.
• Helps remove
  • Rust
  • Sand
  • Cryptosporidium cysts (>99% efficienct for 1 micron cartridge) Material is food grade polypropylene with no chemical residue or loose fibres

SPECIFICATIONS

APPLICATIONS

• Rainwater tank households
• Bore and well water homes
• Rural, semi-rural, and off-grid housing
• Homes requiring potable-quality water for every tap
• Protection against sediment, colour, taste, odour, and microbiological contamination
• Pre-treatment for appliances and fixtures to reduce scale, staining, and wear
