Bianco INOX60S2NXT 0.60kW Self Priming Jet Pump with NXT Controller (Max 62LPM/450kPa)

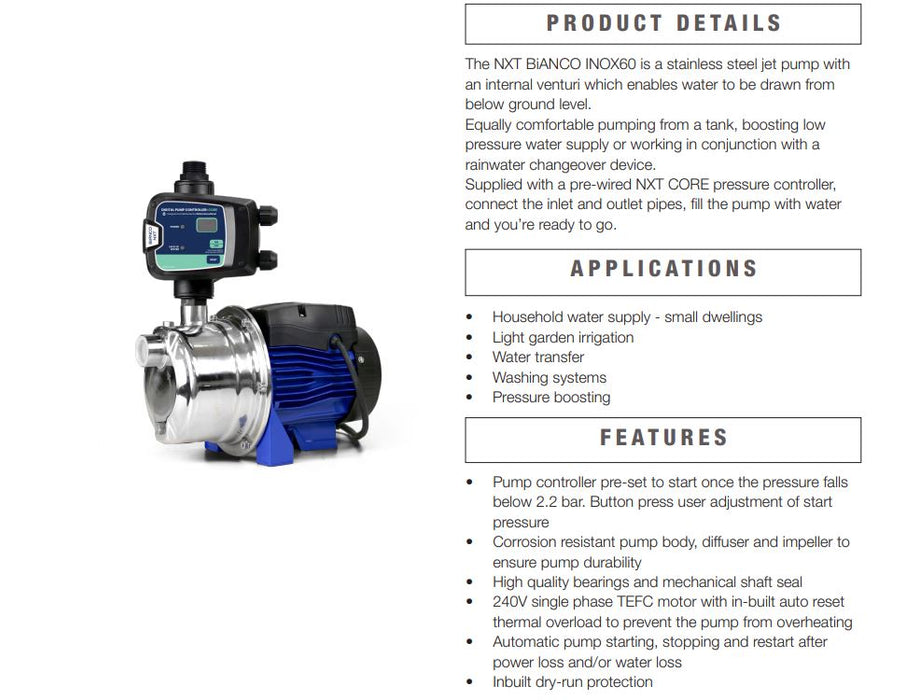

The Bianco INOX60S2NXT is a self-priming, surface-mounted pressure system pump designed to efficiently supply water for domestic installations and applications requiring suction lift. Equipped with an advanced NXT intelligent controller, the pump offers automatic starting, stopping, and restarting functions after power loss or water loss, ensuring optimal performance and reliability in every use. With a suction capacity of up to 9 meters, this pump is ideal for household water supply, irrigation, and pressure boosting applications.

• The new nXt intelligent controller is fitted and wired to the pump with plug and play leads for automatic starting, stopping and restarting after power loss or water loss.
• Run dry protection to prevent pump damage
• The nXt controller has an in-built check valve to prevent water back-flow through the pump
• Corrosion resistant pump body, diffuser and impeller to ensure pump durability
• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage
• A pressure tank is recommended

APPLICATIONS

• Used especially for supplying water to domestic installations and applications where a suction lift is required
• Household water supply
• Irrigation
• Water transfer
• Washing systems
• Pressure boosting

FEATURES

• Self-Priming Design: Provides excellent suction lift of up to 9 meters, making it ideal for applications requiring a suction lift.
• NXT Intelligent Controller: The pump comes pre-wired with plug-and-play leads, allowing for automatic starting, stopping, and restarting after power or water loss.
• Dry Run Protection: Automatically protects the pump by detecting dry conditions and preventing damage.
• Corrosion-Resistant Components: Built with corrosion-resistant pump body, diffuser, and impeller for durability and long-term performance.
• Motor Protection: The 240V single-phase TEFC motor is equipped with auto-reset thermal overload protection to safeguard the pump from overheating.
• Anti-Seize Function: Prevents the pump from seizing after long periods of inactivity.
• Digital Display: Real-time indication of system pressure for accurate monitoring and control.
• Backflow Prevention: The NXT controller has a built-in check valve to prevent water backflow through the pump, enhancing system efficiency.
• Easy Assembly and Removal: Features a push-n-connect fitting with a U-clip for simple installation and removal.
• Drinking Water Approval: Complies with AS/NZ 4020 drinking water standards.
• Pressure Tank Recommended: For optimal pressure maintenance and efficient system operation.

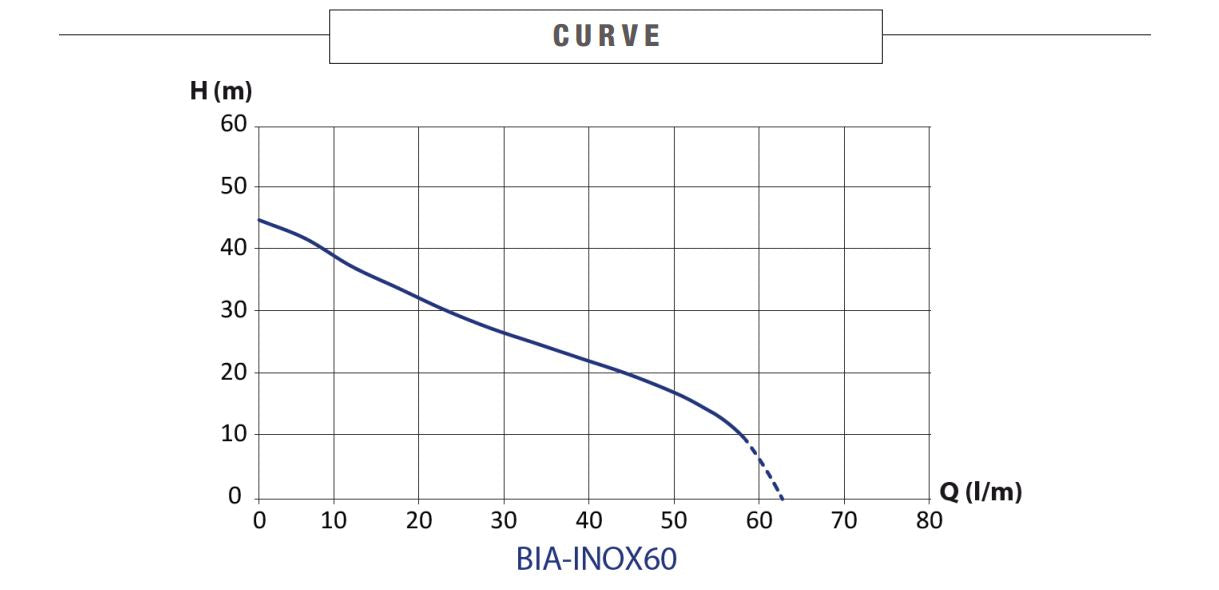

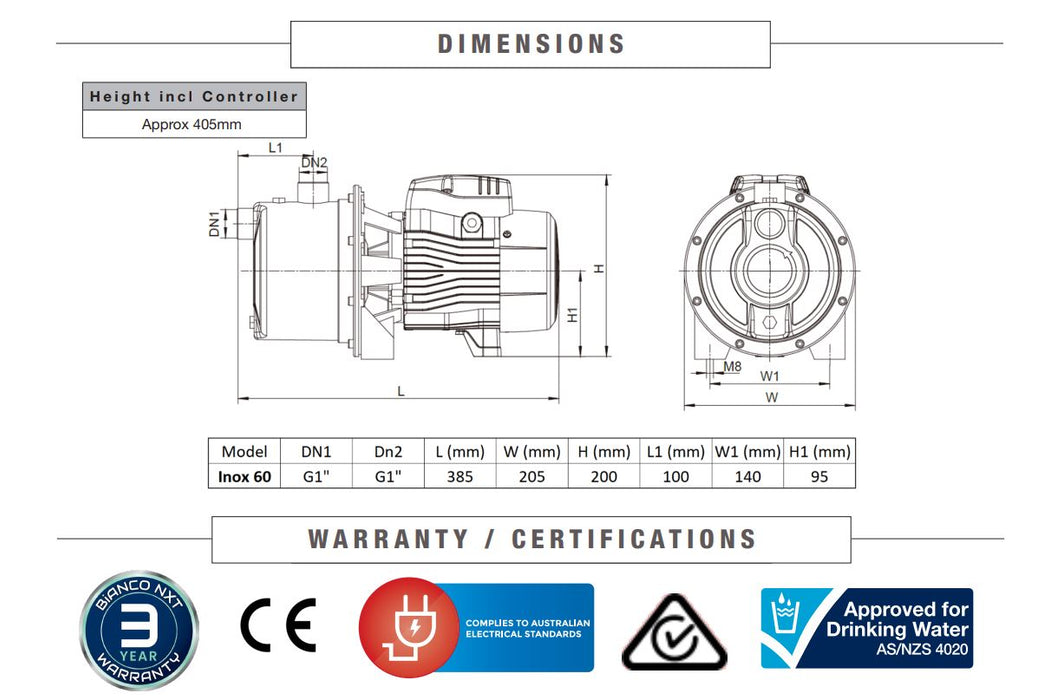

TECHNICAL SPECIFICATIONS
