DAB E Series Deep Well Injector Kits for DP151M & DP251M Pumps

The DAB E Series Deep Well Injector Kits are designed for use with DAB DP151M and DP251M deep well jet pumps, enabling efficient water lifting from deep bores or offset wells up to 27 metres. These kits are essential for installations where the suction depth exceeds the capability of standard self-priming pumps.

Each E Series Kit includes all key injector components required to convert your DP pump into a reliable deep well pumping system, excluding the delivery pipework. Kits are available in three models — E20, E25, and E30 — selected based on suction depth and pipe diameter.

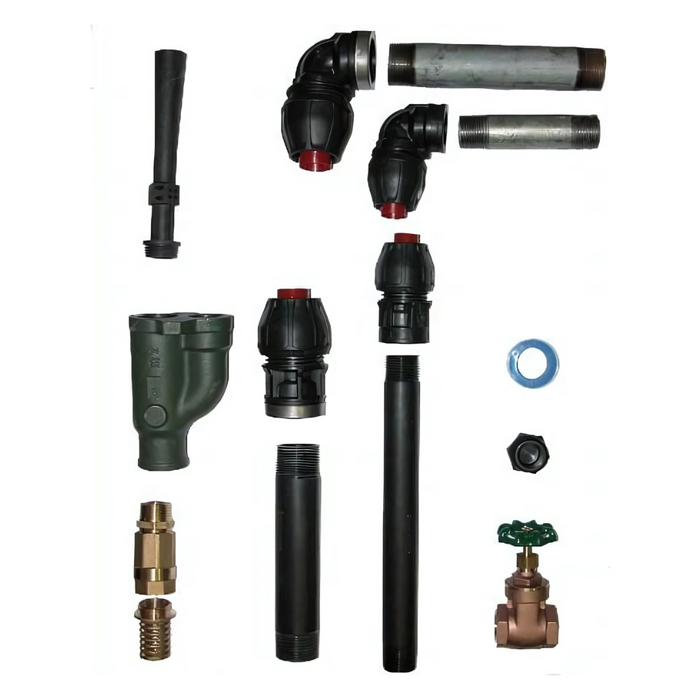

INCLUSIONS

• Injector Body (with nozzle and Venturi)
• Foot Valve
• Polypropylene Tailpipes & Pipe Fittings
• Galvanised Pump Fittings
• Control Valve
• Blanking Plug
• Galvanised Nipple

APPLICATIONS

• Deep well or offset bore installations (100mm or larger)
• Compatible with DAB DP151M and DP251M pumps
• Suitable for suction depths up to 27 metres
• Agricultural, rural, or remote water supply systems

COMPATIBILITY

• Pump Models: DAB DP151M, DP251M
• Pipe Sizes: Suits 1" and 1¼" pipework
• Available Kits:
  • E20 Kit – For shallow to moderate depth
  • E25 Kit – For deeper installations
  • E30 Kit – For maximum suction depths and flow
