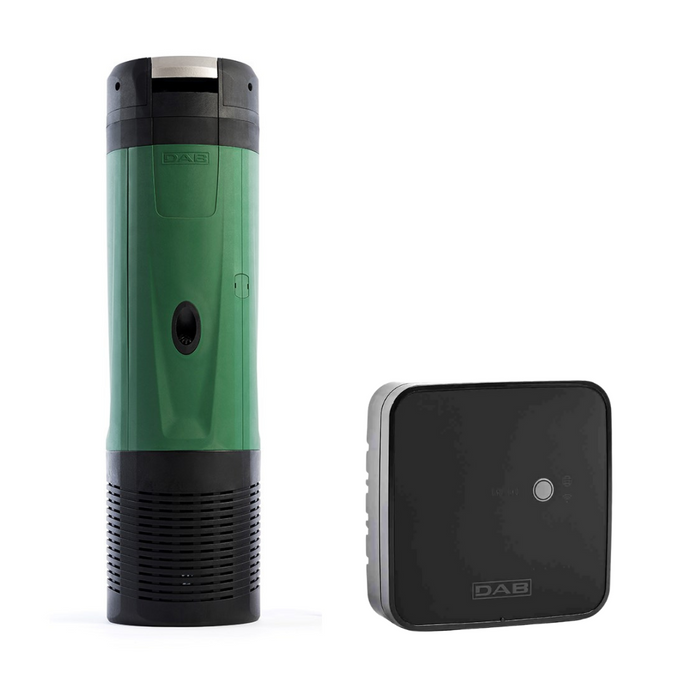

DAB Esybox Diver 7" Multistage Submersible Pump with Inverter 1.00kW - 120L/Min 55m

The DAB Esybox Diver is a cutting-edge 7" multistage submersible pump featuring an integrated variable speed drive for intelligent water pressure management in residential applications. Designed for installation in tanks, wells, or partially submerged environments, the Esybox Diver offers unmatched efficiency, quiet performance, and remote control via DAB’s DConnect Box 2 (included).

Delivering a maximum flow of 120 L/min and a head of up to 55 metres (550kPa), the pump is ideal for domestic water pressurisation, irrigation, and rainwater harvesting. It adjusts motor speed automatically to maintain constant pressure, dramatically reducing energy consumption and pump cycling.

The unit includes a built-in non-return valve, integrated pressure vessel, Wi-Fi connectivity, and NFC technology, with optional accessories like float switch, water level sensor, and the DOC68 kit for dry installation outside the tank.

The pump can be used submerged, partially submerged or out of the tank with the DOC68 accessory (purchase here).

FEATURES

• Integrated inverter for variable speed pressure control
• Submersible, partially submerged, or dry-install (with DOC68 accessory)
• Wi-Fi enabled – remotely monitor and adjust via DConnect Box 2
• Built-in non-return valve and integrated pressure vessel
• Adjustable suction height down to 8 cm
• Optional float switch and water level sensor compatibility
• Compact and quiet operation
• Stainless steel handle for easy transport
• NFC pocket for configuration and diagnostics

APPLICATIONS

• Domestic water pressure boosting
• Garden irrigation and sprinkler systems
• Rainwater harvesting systems
• Tank and well water pumping
• Residential reuse of stored water

SPECIFICATIONS
