Matelec Deluxe Rain/Mains Valve & Pump Controller for Automatic Water Source Changeover with IP56 Steel Enclosure

The Matelec Deluxe Rain/Mains Valve & Pump Controller is a premium solution for seamless automatic changeover between rainwater and mains water supply. Designed for single pump systems, it ensures maximum use of harvested rainwater while maintaining a reliable mains water backup in the event of tank depletion, pump fault, or power failure.

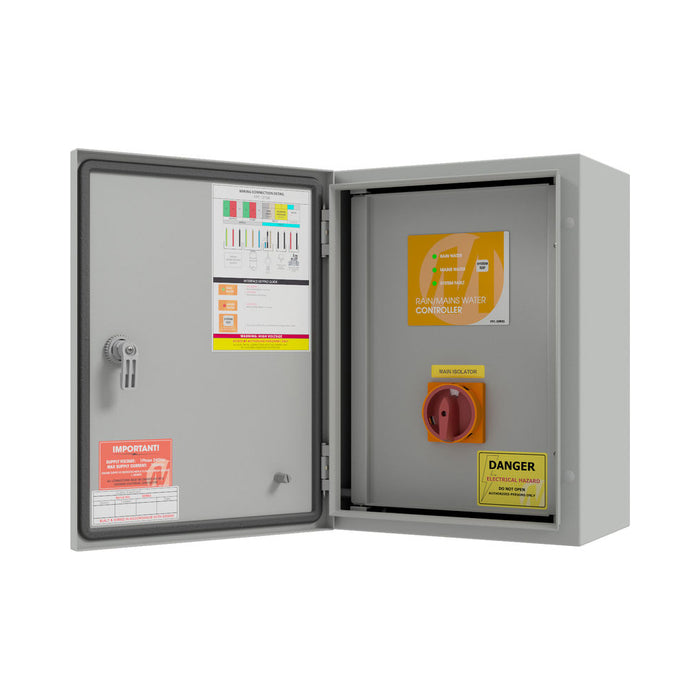

Housed in a robust IP56-rated powder-coated mild steel enclosure with an inner door and removable gland plate, this controller is built for long-term durability in demanding environments. A padlockable mains isolator, thermal overload protection, and circuit breaker-protected low voltage control circuitry safeguard both the pump and control system.

An intuitive electronic keypad with status indicator lights makes operation simple, with clear visual feedback for rain/mains water mode and system faults. A dedicated system test button allows quick verification of pump and valve functionality.

FEATURES

• IP56 Weatherproof Steel Enclosure – Powder-coated mild steel with inner door for extra protection.
• Automatic Water Source Changeover – Prioritises rainwater use and switches to mains water on low tank level, pump fault, or power loss.
• Comprehensive Protection – Padlockable mains isolator, circuit breaker-protected control circuits, and thermal overload pump protection.
• User-Friendly Interface – Electronic keypad with rain/mains status lights and system fault indication.
• Simple Testing – Built-in test button for pump and valve operation.
• Pre-Configured Outputs – 1x pump supply output and 12VDC output for included 25mm pulse-latching solenoid valve.
• Flexible Inputs – 2x 12VDC digital inputs for low level float switch and working pressure switch.

• 25mm female/female 12VDC pulse-latching solenoid valve

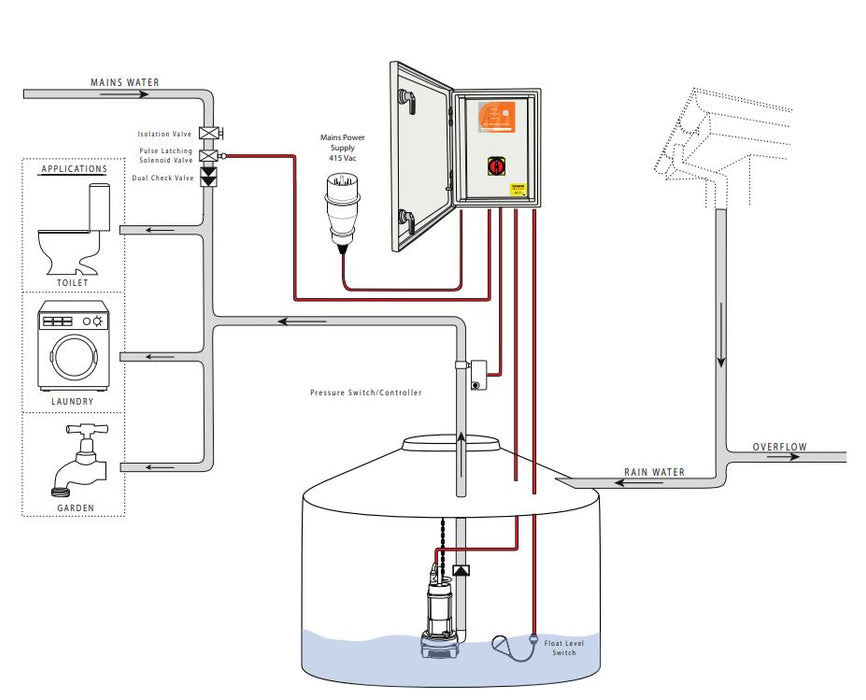

OPERATION

• When rainwater is available, the mains water valve remains closed, and the pump operates via the working pressure switch.
• If the rainwater tank is depleted, the pump experiences a fault, or power is lost, the controller stops the pump and opens the mains water valve for uninterrupted supply.

OPTIONS & VARIANTS

• Available in single-phase (230VAC) or three-phase (400VAC) models.
• Optional 316 stainless steel enclosure.
• Generator input socket with automatic changeover.
• Conductivity probe inputs with tank level display (model variants FPC-12726 & FPC-12727).
• Other valve sizes available on request.
