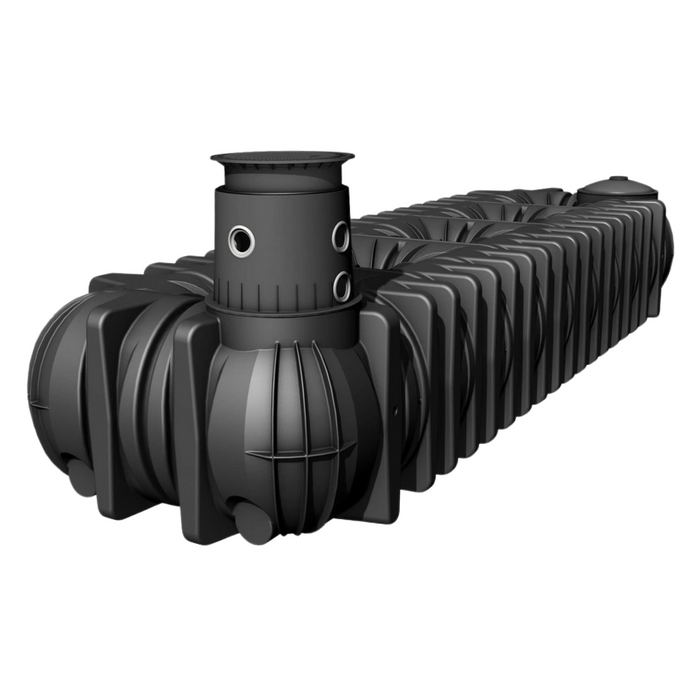

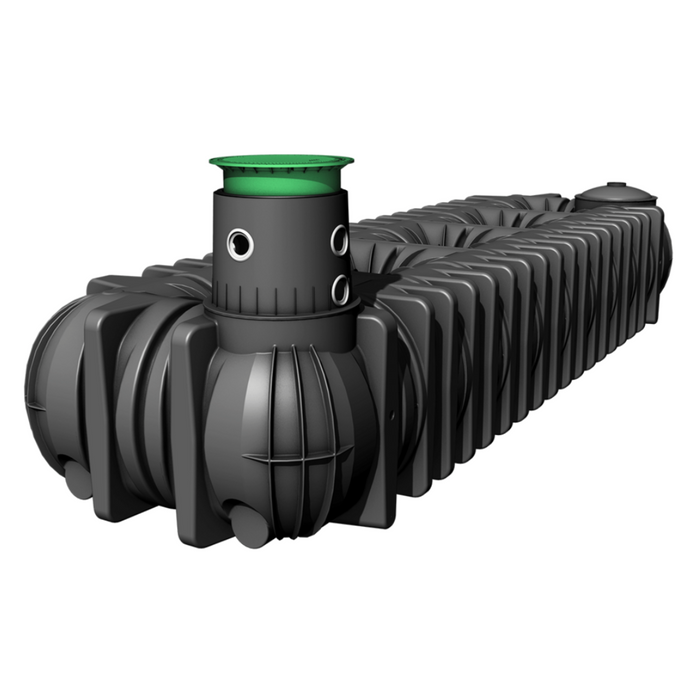

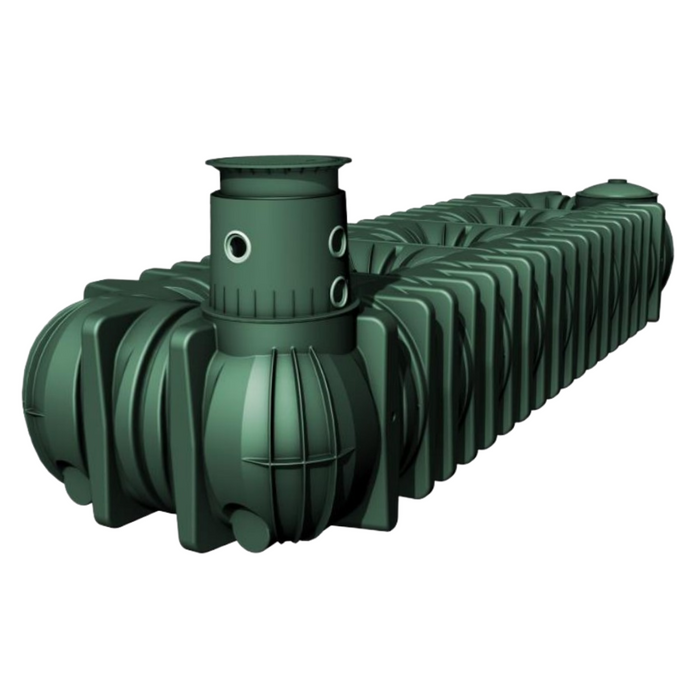

GRAF Garantia Lilo XL 20,000L Underground Tanks Perth
GRAF Garantia Lilo XL 20,000L Underground Tanks Perth
DOWNLOAD PRODUCT BROCHURE |
DOWNLOAD PRODUCT DIMENSIONS |
When space is limited but storage demands are high, the GRAF Garantia Li-Lo XL 20,000L Underground Tank delivers an exceptional solution. Specifically designed for shallow excavations, this German-engineered tank offers a large storage capacity while keeping installation simple and cost-effective—making it ideal for Perth homes, developments, and commercial sites looking to harvest more water without deep digging.

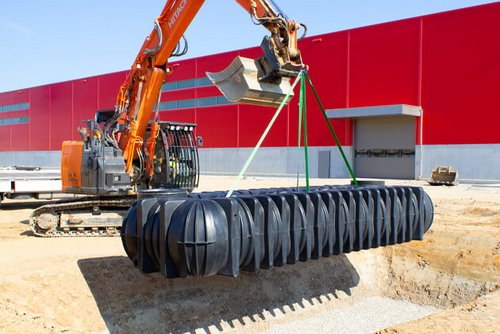

The Li-Lo XL’s flat, wide design means less soil excavation and a quicker install compared to traditional vertical tanks. Despite its impressive 20,000L volume, it remains lightweight and easy to transport, yet durable enough to remain stable in groundwater up to the shoulder—without needing concrete for anchoring.
Perfect for WA’s dry climate and strict water management needs, the tank can also be vehicle-loadable when installed with the optional Telescopic Dome Shaft and Cast Iron Lid.
FEATURES
- Rotating tank dome to easily align the connecting lines
- Available with a second tank dome as an option
- Suitable for HGV loading up to a vehicle weight of 30 t (66138 lbs)
- Connection up to DN 300 (12")
- Flexible connection openings with prefitted DN 150 (6") lip seals
- Tank height of just 125 cm (4' 1")
- High-quality, integrated DN 150 (6") filter technology
- Dome opening with stainless steel profile for precision fit and secure mounting
- Connection fitting of up to DN 200 (8"), on tank dome of up to DN 300
- 15 Year Warranty
SPECIFICATIONS
Measurements/weights | 20,000L |
Length | 9405mm |
Width | 2250mm |
Height | 1910mm |
Weight approx | 890 |
