Hunter I2C-800-PL Modular Irrigation Outdoor Controller Modules

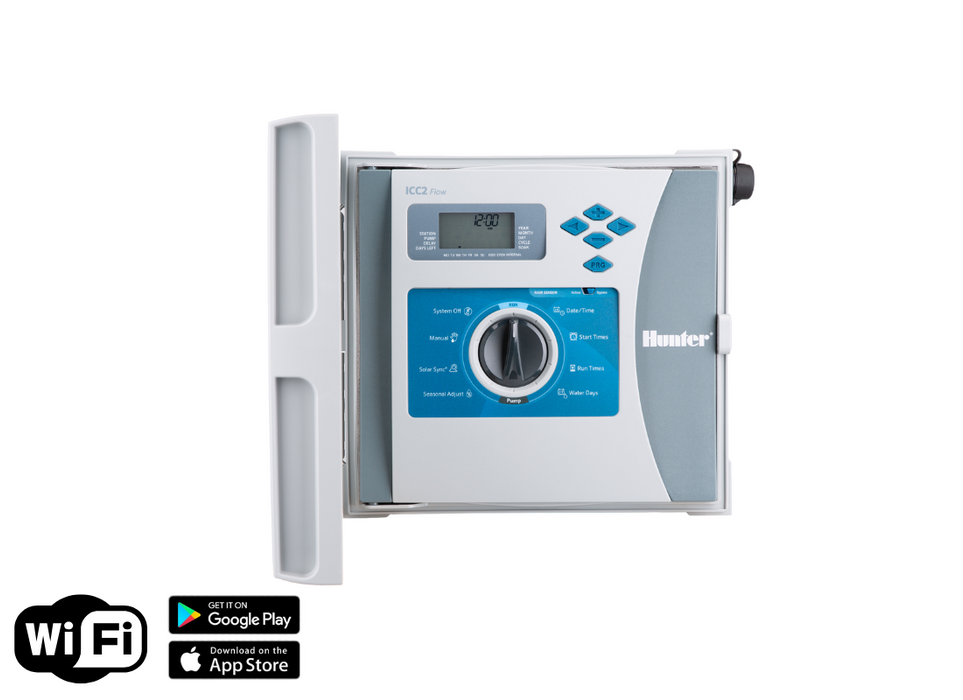

The Hunter ICC2 is a feature-rich, light-to-mid size commercial irrigation controller designed for maximum reliability and water efficiency. Built on the legacy of the original ICC, the ICC2 offers greater flexibility with modular station expandability, modern connectivity options, and robust programming capabilities — all in a rugged and professional-grade design.

Available in plastic, metal, or stainless steel enclosures, as well as pedestal options, the ICC2 can be easily configured to suit small commercial sites, sports fields, or large landscapes. Its modular design allows expansion from 8 to 54 stations, with support for either conventional wiring or Hunter’s advanced EZ Decoder two-wire system.

When paired with Centralus® Irrigation Management software, the ICC2 provides secure cloud-based control via Wi-Fi, Ethernet, or 4G LTE. This enables remote scheduling, flow monitoring, and real-time alerts — reducing costly site visits and water waste. For smart weather-based adjustments, the ICC2 is also compatible with Hunter Solar Sync® and HC Flow Meters.

KEY BENEFITS

• 8-station base model, expandable to 38 stations (plastic) or 54 stations (metal/pedestal)
• EZ Decoder System enables two-wire operation for up to 54 stations
• 4 independent programs with 8 start times each for flexible scheduling
• Run any two programs simultaneously for efficient water management
• Centralus platform compatibility with Wi-Fi, Ethernet, or 4G LTE modules
• Backward compatible with legacy ICC controllers; forward-compatible with HCC Hydrawise™ via facepack upgrade
• Built-in milliamp sensor for wire fault detection and alerts
• Sensor-ready with inputs for Solar Sync®, Clik sensors, and HC Flow Meter
• ROAM/ROAM XL remote compatibility for convenient on-site management


SPECIFICATIONS

• Transformer input: 120/230 VAC
• Transformer output: 24 VAC, 1.4 A
• Station output: 24 VAC, 0.56 A
• P/MV output: 24 VAC, 0.56 A
• Approvals: UL, cUL, FCC, CE, RCM, ISED
• Outdoor enclosures: Plastic IP55, Plastic Pedestal IP24
• Warranty: 5 years
