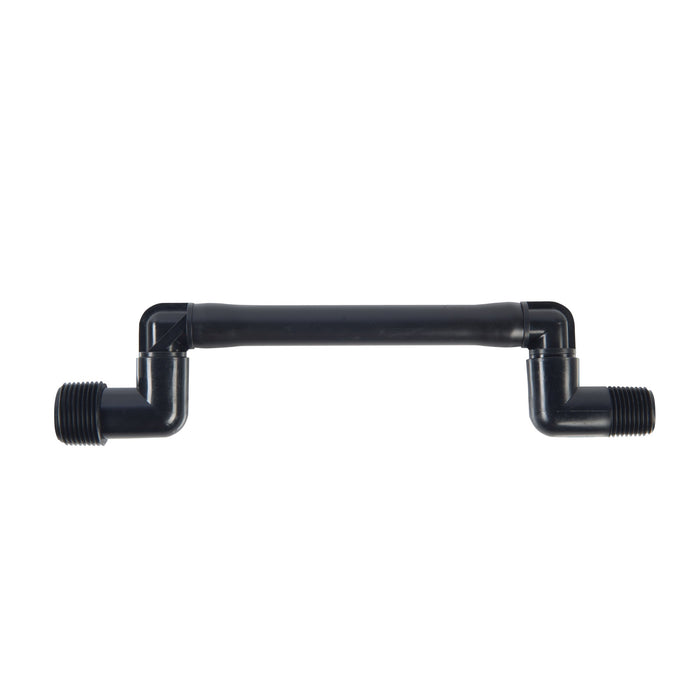

Hunter SJ High Quality Swing Joint Riser With Swivel Elbows for Sprinklers

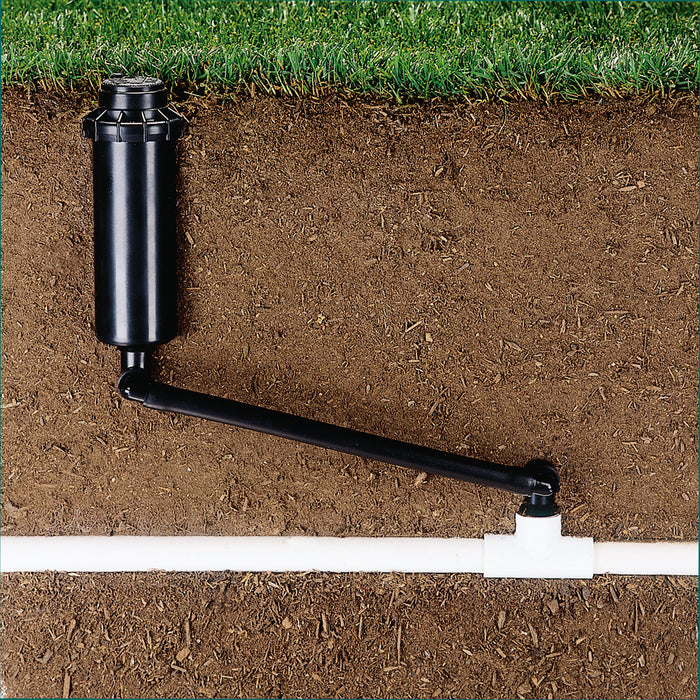

The Hunter SJ Swing Joint is the professional solution for installing sprinklers at the correct grade while protecting them from damage. Featuring patented swivel elbows on both ends, the SJ Swing Joint allows you to adjust sprinkler height and positioning in seconds — no digging, cutting, or guesswork required.

Perfect for new installations or retrofits, the SJ makes it easy to raise sprinklers buried under thatch, adjust heads in shallow trenches, or ensure quick realignment after heavy equipment passes over. Its airtight connection points prevent leaks, while the flexible design absorbs impact, protecting sprinklers and piping from breakage.

Available in 6" and 12" lengths with ½" and ¾" threaded options, the SJ Swing Joint works with both sprays and rotors. Built tough from low-density polyethylene tubing, pressure-rated to 150 PSI (10 bar), and backed by Hunter’s reputation for quality, it’s a must-have component for durable, easy-to-maintain irrigation systems.

FEATURES

• Fully articulated design – swivel ells on both ends for any configuration
• Easy sprinkler height and angle adjustments in seconds
• Retrofit-friendly – 21 mm hex nut version available for horizontal fittings
• Airtight connections for long-term reliability and leak-free performance
• Impact protection – absorbs equipment and foot traffic stress to prevent breakage
• Works with both spray and rotor applications

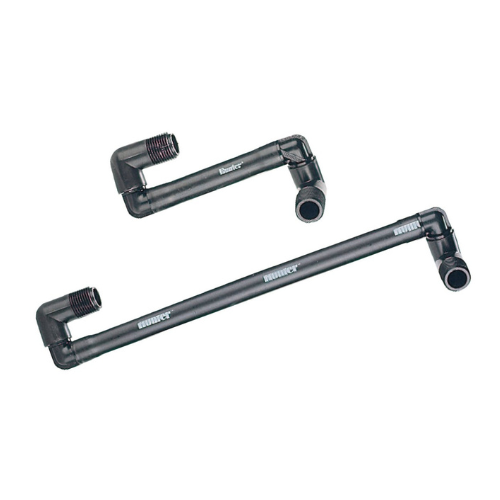

• Lengths available: 6" (150mm) or 12" (300mm)
• Thread sizes: ½" and ¾" BSP options
• Pressure rating: 150 PSI / 1000 kPa
• Warranty: 2 years

SPECIFICATIONS

• Models:
  • SJ-506 – ½" × 6" length
  • SJ-7506 – ½" × ¾" × 6" length
  • SJ-706 – ¾" × 6" length
  • SJ-512 – ½" × 12" length
  • SJ-7512 – ½" × ¾" × 12" length
  • SJ-712 – ¾" × 12" length
• Tubing Material: Low-density polyethylene, 0.49" ID
• Application: Residential & commercial spray or rotor sprinklers
