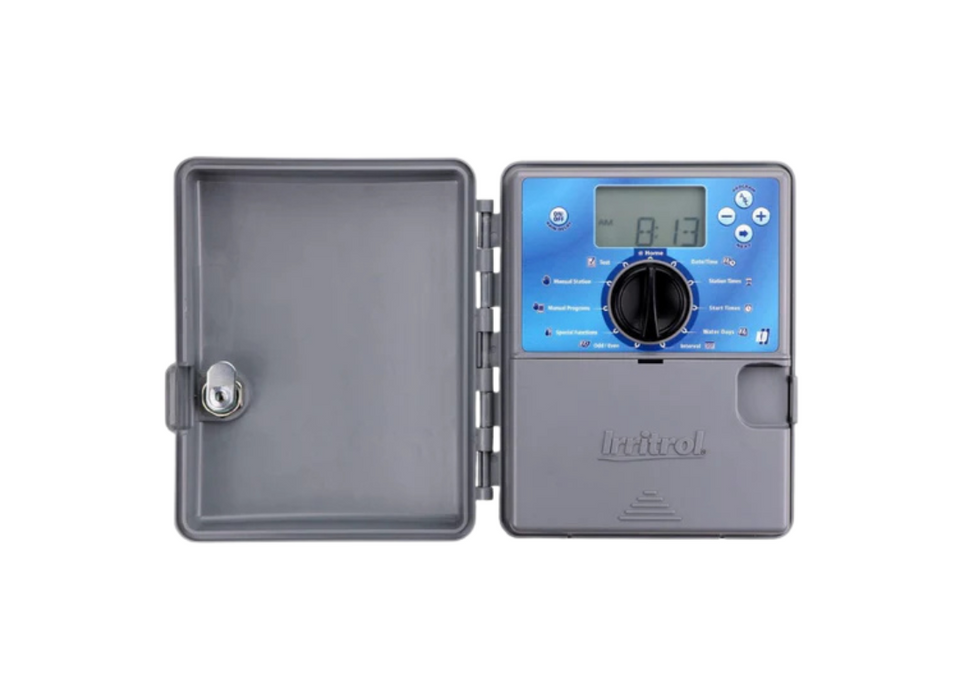

Irritrol KwikDial KD2 Outdoor Irrigation Controller (Corded)

The Irritrol KwikDial KD2 Outdoor Irrigation Controller has been engineered to make residential watering smarter, easier, and more reliable. Combining familiar dial-based control with modern programming features, the KD2 delivers exceptional scheduling flexibility for gardens, lawns, and landscapes of all sizes. Its simple interface, automatic and semi-automatic modes, and intuitive manual station operation make everyday use effortless for homeowners and installers alike.

Built for real-world conditions, the KD2 includes electrical surge protection, an electronic circuit breaker, and a full five-year warranty—ensuring dependable performance even in harsh outdoor environments. Non-volatile memory safeguards all program settings, while built-in backup keeps date and time intact during power loss. With the ability to execute days-of-week, odd/even, interval, or custom watering cycles, the KD2 adapts easily to local watering restrictions and plant requirements.

The KD2 Outdoor model includes an internal transformer and is fully compatible with Irritrol’s Climate Logic® Weather Sensing System for automatic weather-based run-time adjustment. It also supports the SMRT Logic™ gateway for app-based remote control, the RainSensor™ family, and the CRR handheld remote series—providing expandability for users wanting greater automation and convenience. With flexible programming, a rugged outdoor cabinet, and proven long-term durability, the KwikDial KD2 is an ideal upgrade for any residential irrigation system.

FEATURES

• Compatible with Climate Logic® on-site wireless weather sensing
• Three independent programs with separate start times and run durations
• Multiple watering day options:
  • Days-of-the-week
  • Odd/even days with 31st day skip
  • Interval watering up to every 31 days
  • Excluded-day option
• Automatic, semi-automatic, and manual station operation
• Dedicated RainSensor™ port and sensor bypass switch
• Electrical surge protection on input and output
• Self-diagnostic function with electronic circuit breaker
• Water budgeting (0–200% in 10% increments)
• Large, easy-to-read LCD display
• Non-volatile memory retains all programs during AC power loss
• 5-year warranty
• Compatible with SMRT Logic™ for remote app control


SPECIFICATIONS

• Dimensions (Outdoor Model)
  • H: 8"
  • W: 6"
  • D: 4.5"
• Electrical
  • Transformer Input: 120 V AC 60 Hz (also supports 220/240 V AC 50 Hz)
  • Transformer Output: 24 V AC, 1.25 A
  • Max Output per Station: 24 V AC, 0.4 A
  • Max Total Output: 24 V AC, 0.8 A (including master valve)
• Capacity
  • One station valve + master valve or pump start relay operating at one time
  • UL and CUL Listed
