Netafim Coolnet Pro Mist Sprinkler Assembly Complete

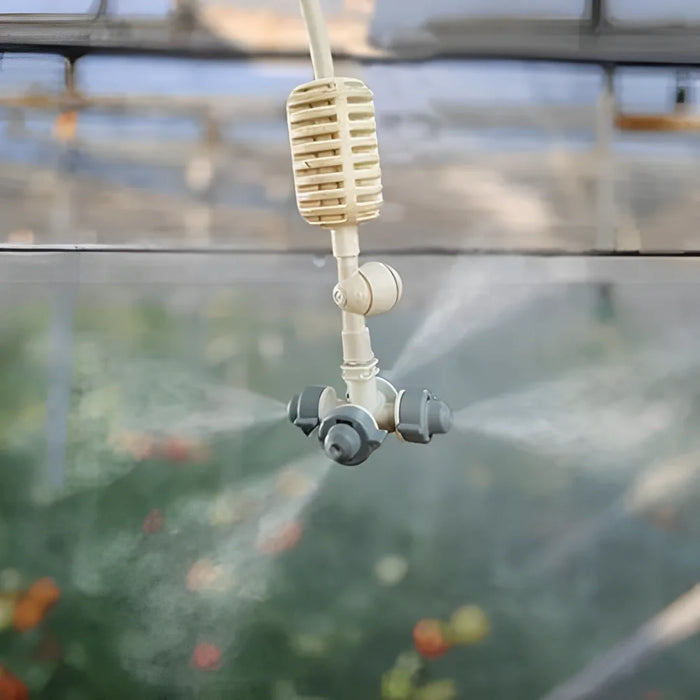

Deliver superior cooling, humidification, and irrigation with the Netafim CoolNet Pro™ – now offered as a complete assembly including micro-tube and anti-drain valve. This precision-engineered, upside-down static mister is the ultimate solution for greenhouse and livestock environments, providing uniform, ultra-fine misting with no dripping – even at low pressures. Perfectly suited for propagation tables, greenhouses, net houses, and controlled climate spaces.

Complete Cooling & Humidification System:
This pre-assembled unit includes the CoolNet Pro™ mister head, SSPE micro-tube, and a matched anti-drain (AD) valve – ensuring drip-free startup and pulse-ready activation for short-cycle misting.

FEATURES

• Drip-Free Bridgeless Design: No bridge between nozzle arms eliminates drips that can damage plants or cause uneven wetting.
• Consistent Ultra-Fine Mist: Delivers micro-droplets (~65 microns) at just 4.0 bar, ideal for temperature and humidity control.
• Low Pressure, High Efficiency: Achieve optimal cooling with low energy use – reduce greenhouse temps by up to 5°C.
• Pulse Irrigation Ready: Anti-drain valve keeps the system primed for high-frequency, short-duration misting cycles.
• Easy Maintenance: Quick disassembly (no tools needed) makes cleaning and servicing hassle-free.
• Chemical-Resistant Construction: Made from acid-resistant (AA) materials for compatibility with chemical cleaning and fertigation.

TECHNICAL SPECIFICATIONS

• Flow Rates: 5.5, 7.5, and 14.0 L/h at 4.0 bar; color-coded nozzles for easy identification (Light Green, Silver Gray, Sky Blue)
• Operating Pressure: 3.0–5.0 bar
• Recommended Filtration: 130 micron / 120 mesh minimum; pre-filtration required for high sand/silt content
• Anti-Drain Valve Options:
  • Blue: Opens at 1.5 bar / Closes at 0.7 bar
  • Purple: Opens at 2.0 bar / Closes at 0.9 bar
  • Green: Opens at 3.0 bar / Closes at 1.5 bar
  • Orange: Opens at 4.0 bar / Closes at 1.8 bar
• Inlet Connection: Press-fit
• Mister Configurations Available: Cross (4 nozzles), T (2 nozzles), Straight (1 nozzle), Plugged (Orange)
