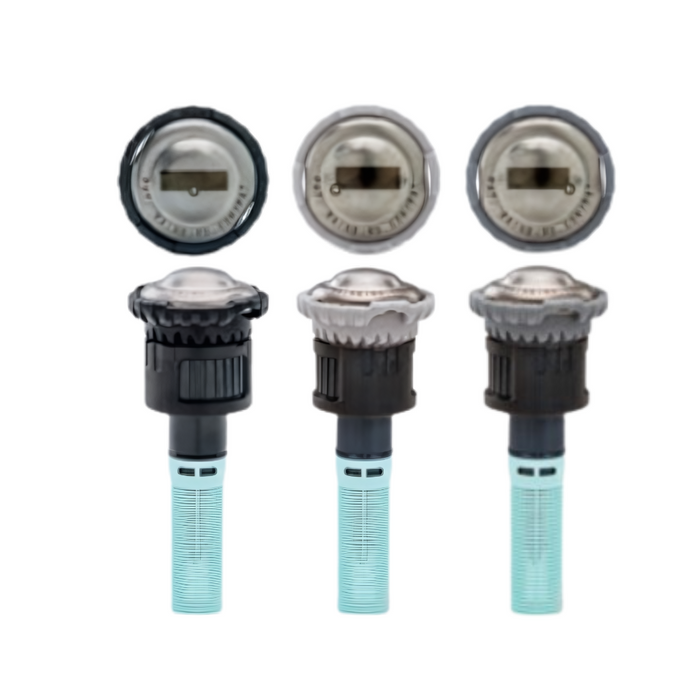

Rain Bird R-Van Strips Sprinkler Rotary Nozzles - Female (1.5m-9.1m)
Rain Bird R-Van Strips Sprinkler Rotary Nozzles - Female (1.5m-9.1m)
DOWNLOAD BROCHURE |
The Rain Bird R-VAN Strip Rotary Nozzles are designed to provide efficient, uniform water distribution in narrow or rectangular areas where traditional nozzles are less effective. Featuring rotating stream technology, these nozzles deliver precise coverage at a low precipitation rate, reducing runoff, erosion, and water waste while promoting healthy turf and planting beds.
Perfect for retrofitting standard spray nozzles, R-VAN Strips can reduce flow by up to 60% and improve overall irrigation efficiency by up to 30%. With tool-free adjustments, you can easily fine-tune arc and radius while the system is running. The exclusive pull-to-flush feature clears dirt and debris, ensuring consistent performance even in demanding conditions.
The R-VAN Strip series includes left corner, right corner, and side strip patterns, delivering flexible design options for landscapes with walkways, narrow lawns, or planting strips. Thick, wind-resistant streams minimize misting and keep water in the target zone. Backed by a three-year trade warranty, R-VAN Strip nozzles are a durable, water-saving solution.
FEATURES
- Pattern Options: Left Corner, Right Corner, and Side Strip configurations.
- Water Saving: Up to 60% flow reduction and 30% improved efficiency.
- Matched Precipitation: Uniform coverage across all R-VAN models.
- Tool-Free Adjustment: Quick arc and radius changes by hand.
- Wind Resistant: Large droplets cut through wind for accurate watering.
- Pull-to-Flush: Clears debris to maintain peak performance.
- Color-Coded Design: Easy identification for nozzle type and range.
- Warranty: Covered by Rain Bird’s 3-year trade warranty.
SPECIFICATIONS
- Spray Range: 1.5–9.1 m (5–30 ft), depending on strip model
- Pattern Types:
- R-VAN-LCS: Left Corner Strip (1.5 m x 4.6 m / 5 ft x 15 ft)
- R-VAN-RCS: Right Corner Strip (1.5 m x 4.6 m / 5 ft x 15 ft)
- R-VAN-SST: Side Strip (1.5 m x 9.1 m / 5 ft x 30 ft)
- Pressure Range: 30–55 psi (2.1–3.8 bar)
- Recommended Pressure: 45 psi (3.1 bar)
APPLICATIONS
- Narrow Lawns & Strips: Ideal for turf along sidewalks, medians, and driveways.
- Residential & Commercial Landscaping: Efficient watering for rectangular or tight planting zones.
- Retrofit Projects: Upgrade from fixed spray nozzles for improved water efficiency.
- Windy Locations: Thick water streams prevent misting and drift.
