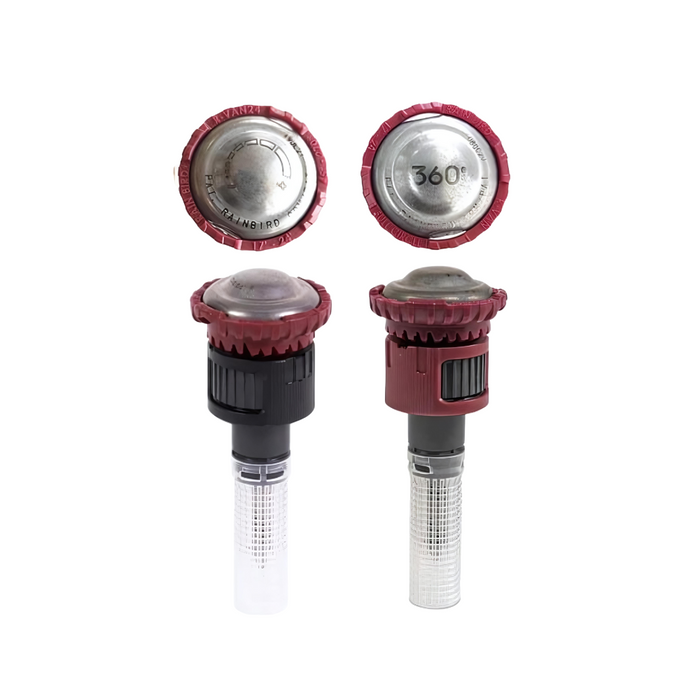

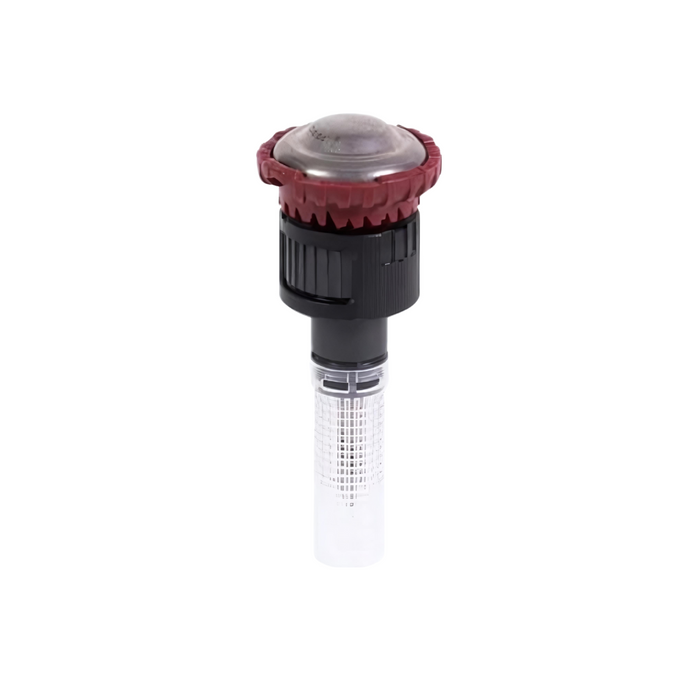

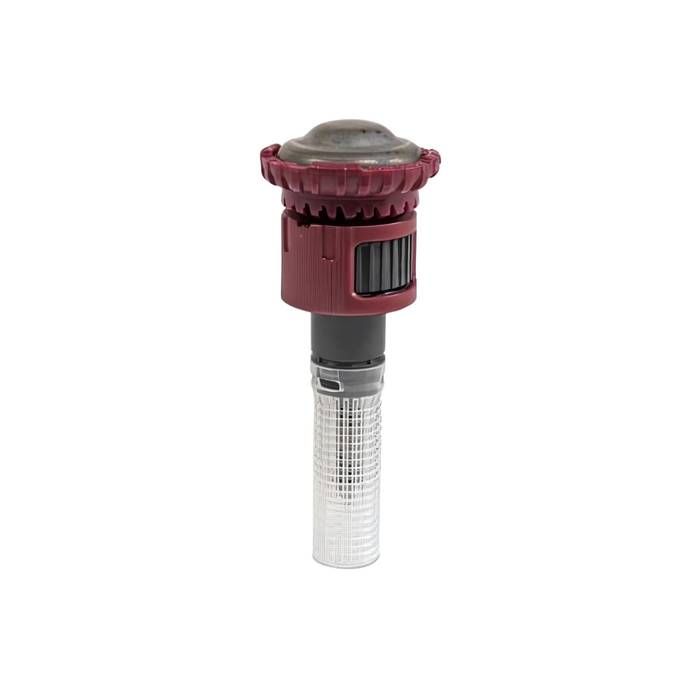

Rain Bird R-Van24 Adjustable Arc Sprinkler Rotary Nozzles - Female (5.2m-7.3m)
Rain Bird R-Van24 Adjustable Arc Sprinkler Rotary Nozzles - Female (5.2m-7.3m)
| DOWNLOAD BROCHURE |

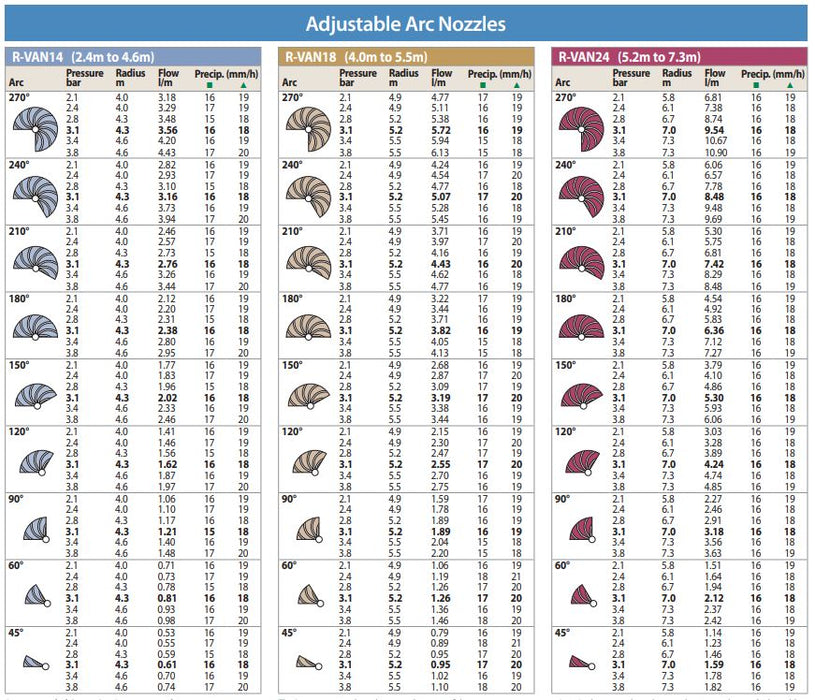

| DOWNLOAD PERFORMANCE CHART |
The Rain Bird R-VAN24 Adjustable Arc Rotary Nozzles are engineered for maximum water efficiency, flexibility, and durability in residential and commercial irrigation systems. With rotating stream technology, they deliver a uniform application of water at a low precipitation rate, reducing runoff and erosion while ensuring greener, healthier landscapes.
Designed as an upgrade to standard spray nozzles, the R-VAN24 can reduce water flow by up to 60% and improve irrigation efficiency by up to 30%. Adjustments are fast and tool-free: simply rotate by hand to change the arc or radius while the system is running. The built-in pull-to-flush feature keeps nozzles free of dirt and debris, ensuring long-term reliability.
Built for real-world conditions, the R-VAN24 produces large, wind-resistant water droplets that cut through wind and prevent misting or fogging. With a watering range of 5.2–7.3 metres (17–24 feet), it is compatible with Rain Bird spray bodies, risers, and adapters, as well as Rain Bird 5000 MPR Series Rotors for matched precipitation across zones. Backed by a three-year trade warranty, the R-VAN24 offers lasting performance and water savings.
FEATURES
- Efficient Irrigation: Reduces water use up to 60% and boosts efficiency by 30%.
- Matched Precipitation: Ensures consistent water application across zones.

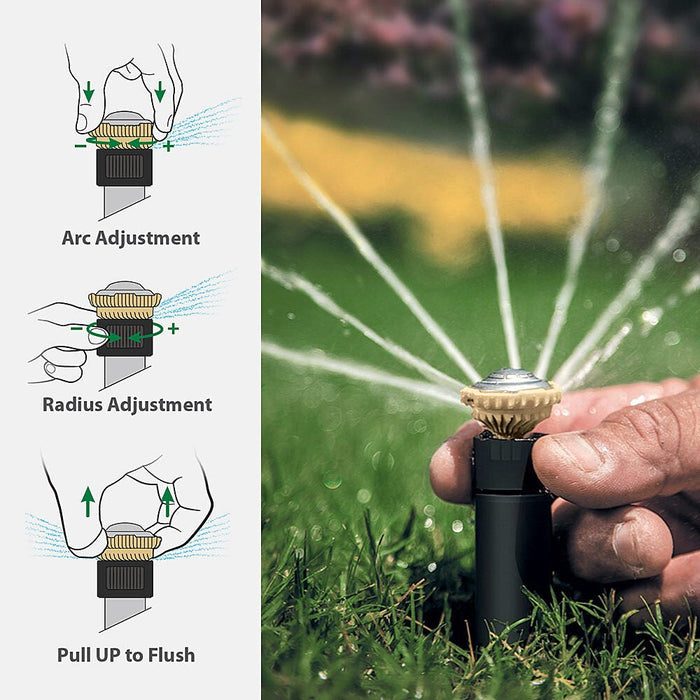

- Tool-Free Adjustment: Arc (45°–270°) and radius easily adjusted by hand.
- Wind Resistant: Thick water streams prevent drift, misting, and fogging.
- Self-Cleaning: Pull-to-flush feature clears debris and maintains performance.
- Easy Identification: Color-coded and laser-etched for quick recognition.
- Broad Compatibility: Works with Rain Bird spray bodies, risers, and adapters.
- Warranty: Includes Rain Bird’s 3-year trade warranty.
SPECIFICATIONS
- Spray Range: 5.2–7.3 m (17–24 ft)
- Arc Adjustment: 45°–270° adjustable
- Pressure Range: 30–55 psi (2.1–3.8 bar)
- Recommended Pressure: 45 psi (3.1 bar)
- Adjustment Method: Manual, tool-free, while running
APPLICATIONS
- Residential & Commercial Lawns: Water-saving efficiency with uniform coverage.
- Slopes & Erosion-Prone Areas: Low precipitation rate reduces soil runoff.
- Retrofitting Systems: Replace fixed spray nozzles to cut water use and costs.
- Windy Conditions: Reliable distribution with thick, wind-resistant water streams.
