Tsurumi KTVE Series Energy Saving Automatic Submersible Drainage Pump - Three Phase

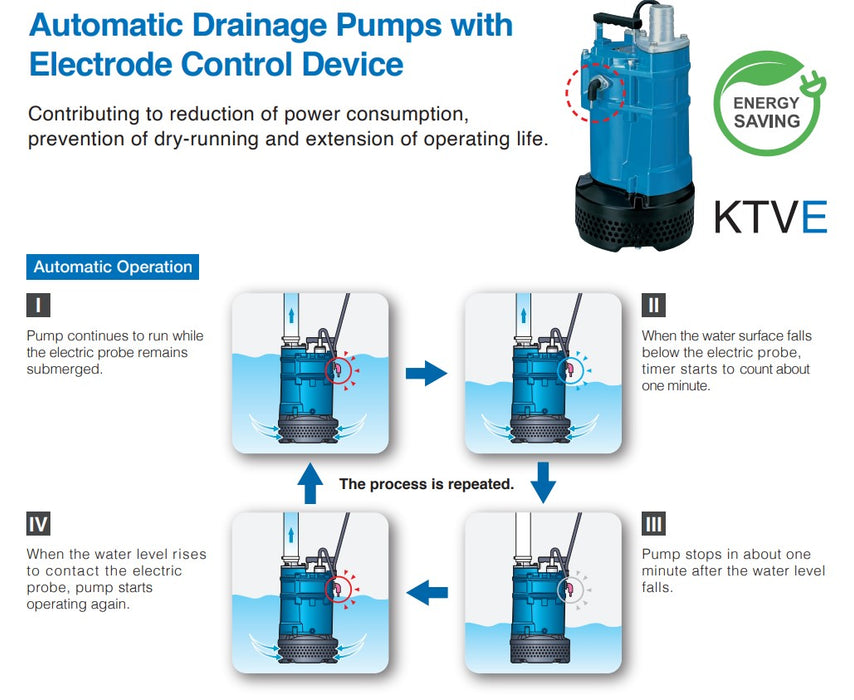

The KTVE-series is an innovative submersible three-phase auto drainage pump that comes with a built-in electrode type relay unit. This feature enables the pump to start and stop automatically, eliminating the risk of dry-running. This not only reduces power consumption but also extends the pump's lifespan. Despite being a three-phase unit, it is lightweight and portable, making it suitable for everyday construction work. Its top discharge and side flow design ensures efficient motor cooling, even if the motor is exposed to air. The slim design also allows for easy placement in confined spaces.

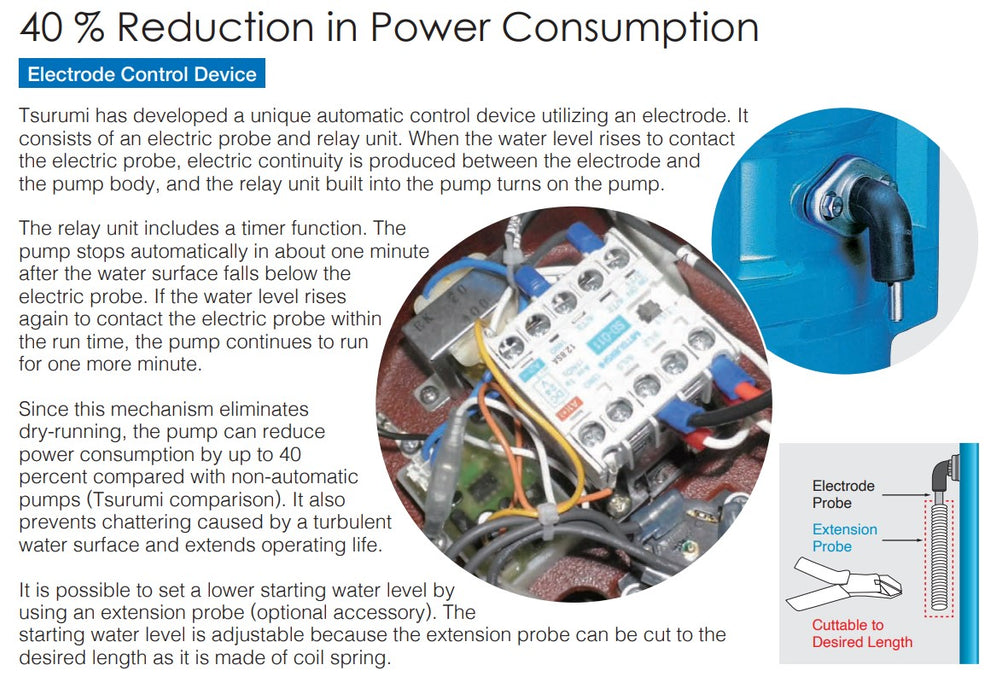

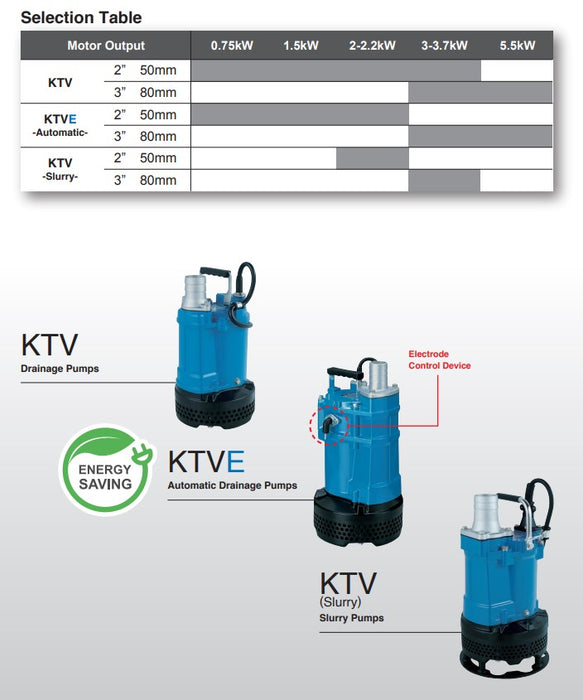

The KTVE-series features automatic pumps without cumbersome floats. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Also available is the KTV (slurry)-series that Tsurumi equips with an agitator for slurry dewatering. Tsurumi's pumps have been widely adopted in various fields from civil engineering and construction to large-scale construction projects (tunnels, bridges, dams, etc.) where the pumps must perform reliably in severe environments

FEATURES

• Anti-wicking Cable Entry
• Cable Clip
• Circle Thermal Protector
• Die-casted Aluminium Alloy Body & Wear-resistant Synthetic Rubber
• Dual Inside Mechanical Seals with Silicon Carbide Faces
• Oil Lifter
• Protection Plate: Excluding (0.75kW)
• Urethane Rubber or Ductile Cast Iron Semi-vortex Impeller
• Agitating Mechanism

APPLICATIONS

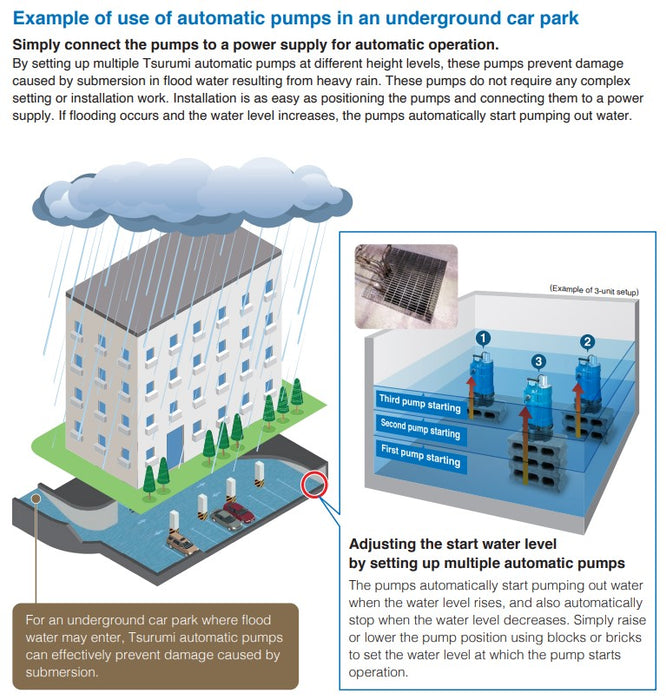

• For an underground car park where flood water may enter, Tsurumi automatic pumps can effectively prevent damage caused by submersion
• Construction
• Mining
