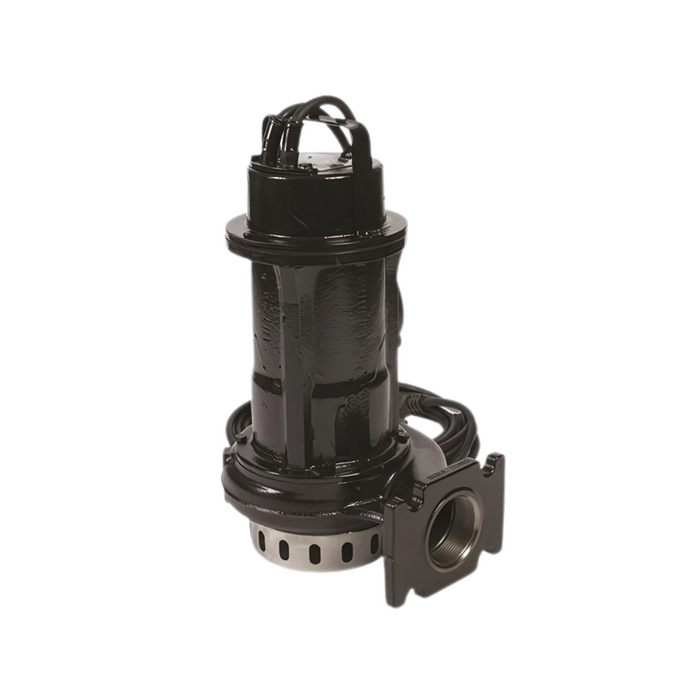

Zenit DRE 200 Series 240v Horrizontol Outlet Drainage Pumps (Max 720LPM/180kPa)

The Zenit DRE 200 Series is the powerhouse of the DRE range — designed for demanding domestic and light commercial drainage tasks requiring high flow rates and robust reliability. Delivering up to 720 litres per minute with a maximum head of 18.1 metres, this pump features a horizontal outlet configuration, providing maximum flexibility for installation in tight or low-clearance pits and sumps.

Engineered with a rugged cast iron casing and impeller, a stainless steel shaft, dual sealing system, and integrated thermal protection, the DRE 200 is built to handle clear or slightly soiled wastewater, strained water, rainwater, and seepage with confidence.

FEATURES

• Horizontal Outlet Design — ideal for bottom coupling or side discharge in confined pits

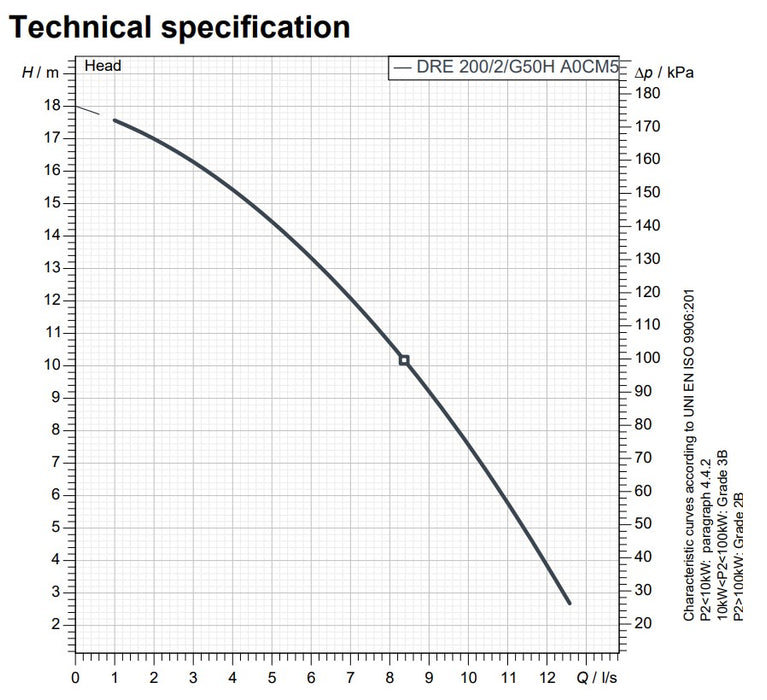

• High Flow & Head Performance — 720 L/min max flow with 18.1 m total head
• Open Multi-Channel Impeller — passes solids up to 15 mm
• Cast Iron Casing & Impeller (EN-GJL 250) — ensures long-lasting durability
• Stainless Steel Shaft (AISI 431) — corrosion-resistant for extended pump life
• Dual Seal System — silicon carbide mechanical seal with additional lip seal
• Integrated Oil Sump — lubricates seals for prolonged service life
• Thermal Protection & Capacitor — safe operation with single-phase power
• Bi-Epoxy Coating — protects metal parts from corrosion
• Quiet Operation — operates below 70 dB when submerged
• S1 Continuous Duty — designed for permanent, uninterrupted use
• Supplied with 10 m Cable — plug-and-play installation ready

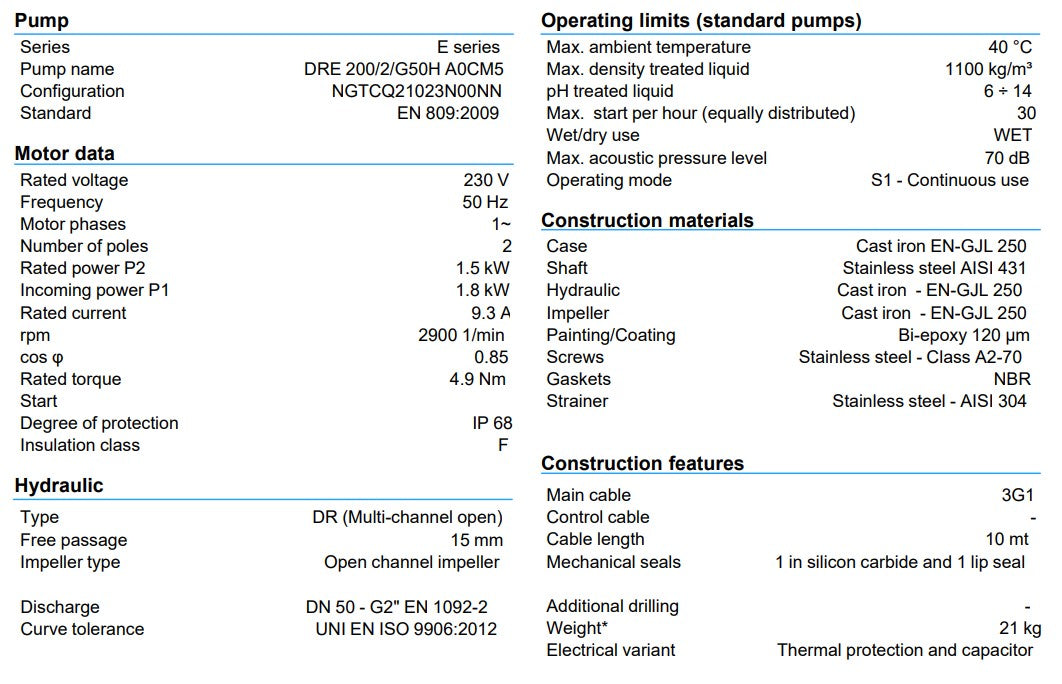

SPECIFICATIONS

• Power Supply: 240 V, 50 Hz (Single-phase)
• Rated Output: 1.5 kW / 2.0 HP
• Max Flow Rate: 720 L/min
• Max Head: 18.1 m (1.81 bar / 180 kPa)
• Current Draw: 9.3 A
• Outlet Size: 2" BSPF (DN 50)
• Impeller Type: Multi-channel open impeller
• Free Passage: 15 mm
• Motor Type: Dry asynchronous motor with thermal protection and capacitor
• Duty Cycle: Continuous (S1)
• Max Liquid Temperature: 40°C
• pH Range: 6 to 14
• Max Fluid Density: 1100 kg/m³
• Max Starts per Hour: 30
• Noise Level: <70 dB
• Ingress Protection: IP68
• Insulation Class: F
• Cable: 10 m (3G1)
• Weight: 21.66 kg
• Warranty: 2 Years (Parts & Labour)

APPLICATIONS

• Domestic and light commercial drainage of clear or slightly soiled water
• Rainwater removal from basements, sumps, and collection pits
• Seepage water pumping from underground or confined areas

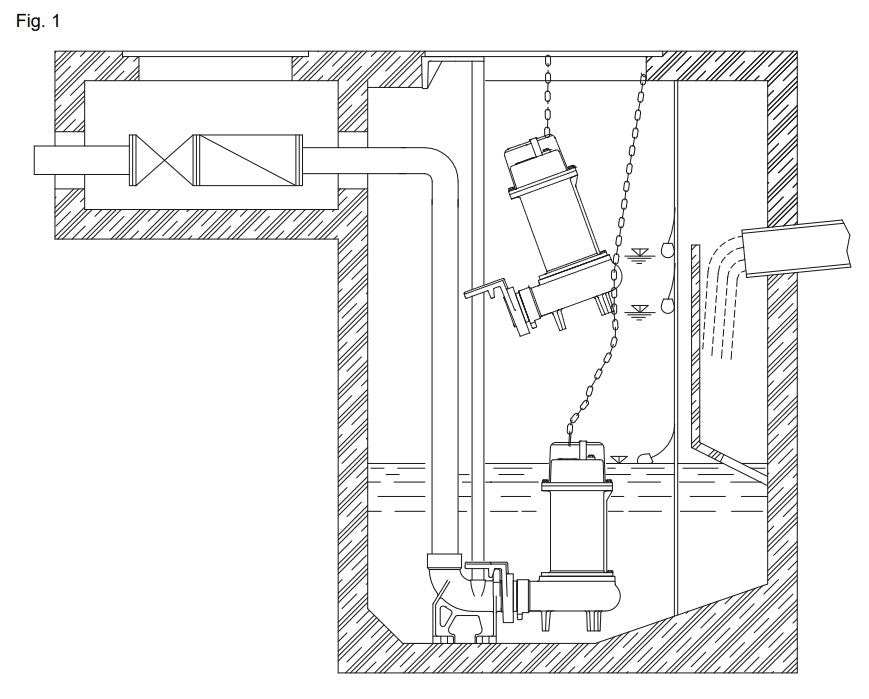

• Ideal for installations requiring horizontal outlet discharge
• Suitable for residential, agricultural, and light industrial water transfer
