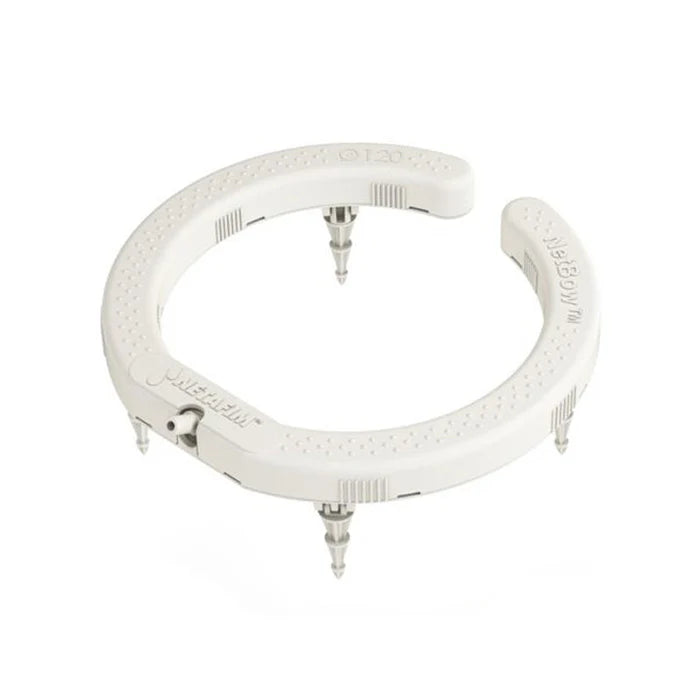

Netafim NetBow™ 120mm Diameter 4-Outlet Precision Dripper Ring for Uniform Pot Irrigation

Compact. Precise. Reliable.

The Netafim NetBow™ 120mm is a compact, high-performance dripper ring designed for small to medium containers, delivering precise, uniform irrigation to soilless and high-value crops such as blueberries, cannabis, nursery plants, and more.

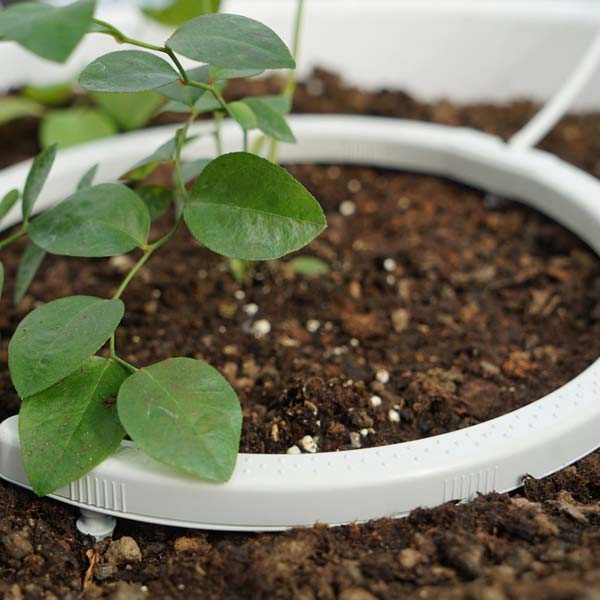

Equipped with four evenly spaced Typhoon™ drip outlets, the 120mm NetBow™ ensures 360° root-zone coverage, even in the critical upper substrate layer. This promotes healthy root development and consistent plant growth—no blind spots, no over- or under-watering.

Designed for plug-and-play installation, this user-friendly ring connects seamlessly to PCJ, Uniram™, or other compatible hub drippers using flexible 3x5mm micro-tube. It stakes directly into the container for stable, reliable placement.

FEATURES

• Even Watering: 4 precision outlets ensure uniform wetting from edge to centre of the pot.

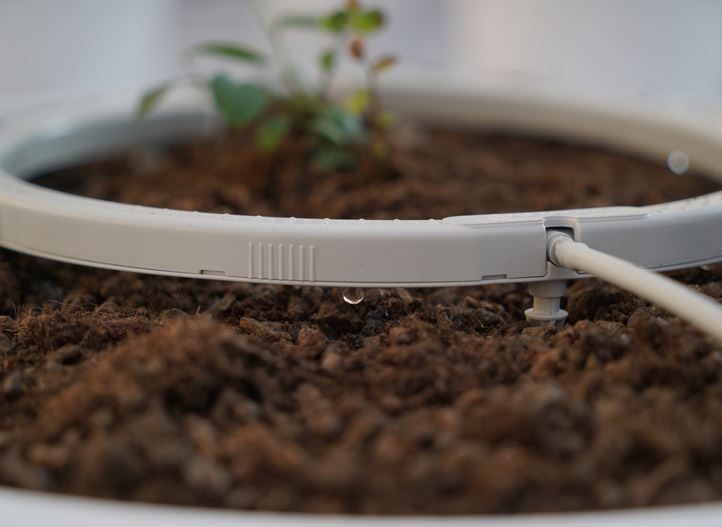

• Drip-Free Operation: Delivers water only where it’s needed – no mist, no overspray.
• Typhoon™ Dripper Technology: Exceptional clog resistance with large filter area and turbulent flow paths.
• Quick & Easy Setup: Lightweight, low-profile design with integrated spikes for simple positioning.
• Durable Construction: Made from UV- and chemical-resistant polymers for long-term use in greenhouse and nursery conditions.
• Versatile Compatibility: Works with PCJ, Uniram™, and other Netafim hub drippers.

SPECIFICATIONS

• Diameter: 120mm
• Drip Outlets: 4 integrated ports
• Flow Rate: 1.2/2.0/3.0/4.0 L/h @ 1.0 bar (flow determined by hub dripper)
• Recommended Container Size: 10–20L
• Inlet Type: Barb or press-fit compatible
• Material: UV-stabilised, acid-resistant plastic
• Colour: Light grey for optimal visibility and light reflection

BENEFITS

• Uniform water distribution, top to bottom with no blind spots, thanks to surface 8 dripping outlets
• High clogging resistance - NetBow™ features 8 of Netafim’s high clogging-resistant Typhoon drippers that guarantees lower risk of clogging.
• User-friendly device simplifies installation and operation – with NetBow™ is easy to install & connect to micro-tubes, and placement in the container is easy.
• Options for connecting to diverse hub drippers like PCJ, PC, or Uniram™ with Dr. Zip

VALUE

• Exceptional uniformity
• Optimal root zone development
• Less diseases
• Reduced labor
• Better ROI (maximized profit)

INSTALLATION

• Cut a section of 3X5mm diameter micro-tube at the required length to reach conveniently from the hub dripper to the NetBow™ inlet. Using SSPE (super soft polyethylene) micro-tube is recomended for ease of installation (pre-cut SSPE micro-tube sections of the required length with the required fittings can be ordered).
• Connect it to the barb connector of the hub dripper. If the hub dripper is fitted with a Press-Fit connector, use a Press-Fit to barb adapter
• Insert the 5 spikes into the 5 holes on the NetBow™ underside
• Place the NetBow™ on the the substrate surface in the pot, surrounding the plant location.
• Connect the free side of the micro-tube to the NetBow™ barb inlet. For NetBow™ with Press-Fit inlet use a straight Press-Fit to barb adaptor
• Insert the NetBow™ spikes into the soil so that its underside is in contact with the soil.
• Adjust the NetBow™ inlet T orientation (up/down) as to allow the optimal micro-tube position. (Make sure the micro-tube is not kinked, pinched or stretched)
