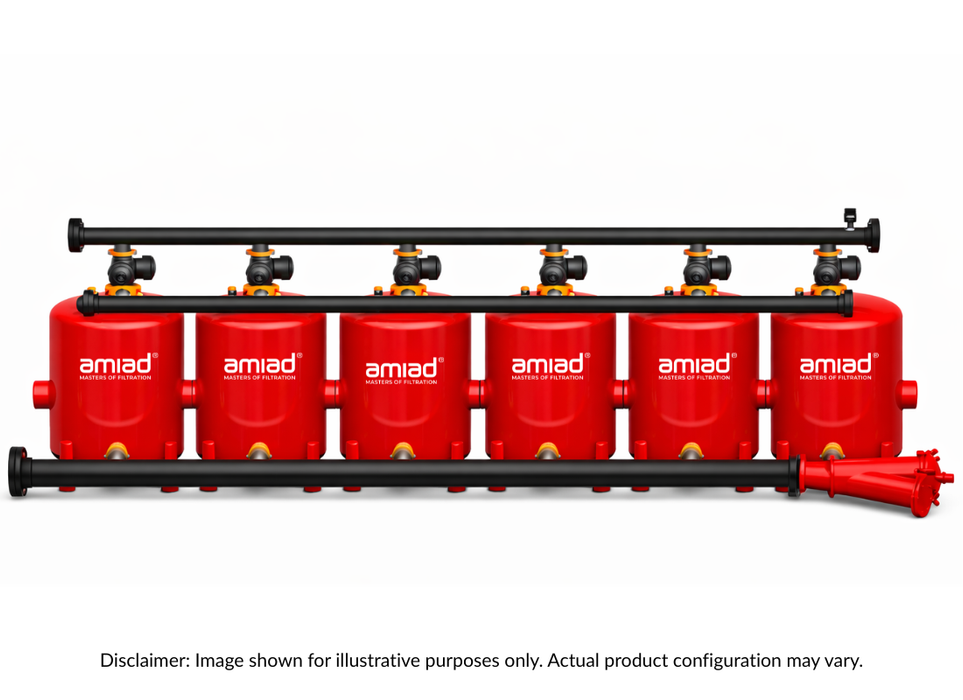

Amiad Fully Automatic 6 Tank Manifold Fully Automatic Self Cleaning Gravel Media Filter System with Media

The Amiad Fully Automatic 6 Tank Manifold Gravel Media Filter System is a large-scale, high-flow depth filtration solution designed for demanding irrigation, industrial and municipal water applications. Built with six heavy-duty polyester-coated steel media vessels connected via a precision-engineered common manifold, this system delivers exceptional filtration capacity with fully automatic self-cleaning performance.

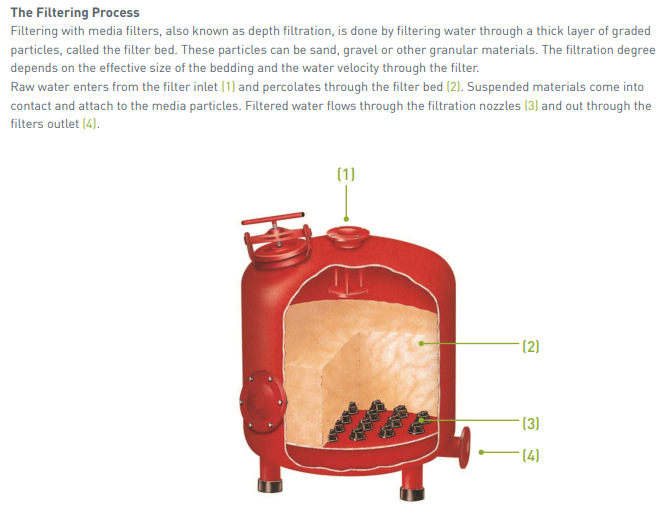

Designed for high suspended solids removal, the system utilises graded gravel or sand media to capture contaminants throughout the depth of the media bed. The internal nozzle configuration ensures uniform water distribution during both filtration and backwash cycles, maximising efficiency while protecting the media structure.

Supplied complete with automatic backwash valves, control panel, pressure differential monitoring and filtration media, this turnkey system is ideal for high-volume pumping stations, large irrigation schemes and industrial process water protection.

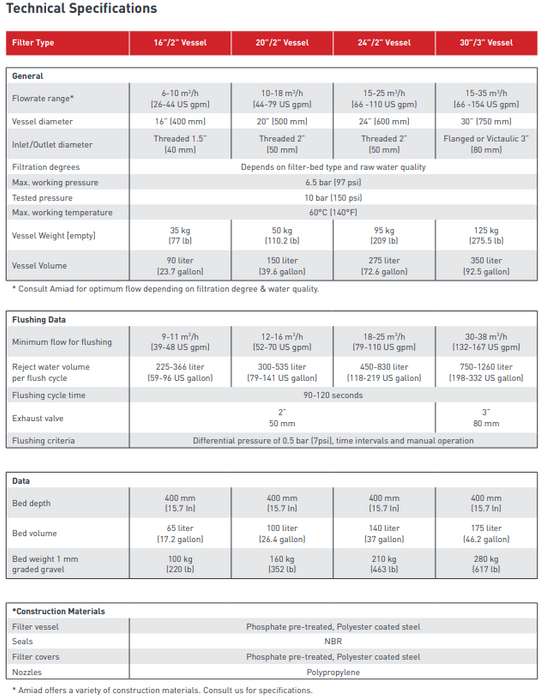

SPECIFICATIONS

• Six media vessels connected via common inlet and outlet manifold
• Fully automatic self-cleaning operation
• Sequential backwash (one vessel at a time) for continuous filtration
• High-capacity parallel filtration configuration
• Depth filtration using gravel or sand media
• Supplied with 1 mm graded gravel media
• 400 mm media bed depth per vessel
• Differential pressure or timer-controlled backwash activation
• Manual backwash override
• Electrical control panel included
• Alarm output capability
• Corrosion-resistant polyester-coated steel vessels
• Polypropylene internal nozzles
• NBR seals
• Flanged or threaded connections (size dependent)
• Maximum working pressure: 6.5 bar
• Test pressure: 10 bar
• Maximum working temperature: 60°C
• Designed for large-scale irrigation and industrial water filtration applications

APPLICATIONS

• Large-scale agricultural irrigation networks
• Pivot and drip irrigation filtration
• Dam and river water filtration systems
• Industrial process water pre-filtration
• Cooling tower protection
• Municipal water reuse and wastewater polishing

FEATURES

• Six media vessels connected via common manifold
• Fully automatic self-cleaning operation
• Sequential backwash (one vessel at a time)
• Continuous filtration during cleaning cycles
• Supplied complete with 1 mm graded gravel media
• 400 mm media bed depth per vessel
• Differential pressure and/or timer-based backwash control
• Electrical control board with alarm output
• PLC upgrade options available
• Corrosion-resistant phosphate pre-treated steel vessels
• Polyester powder-coated finish
• Polypropylene internal nozzles
• NBR seals
• Rated to 10 bar test pressure
