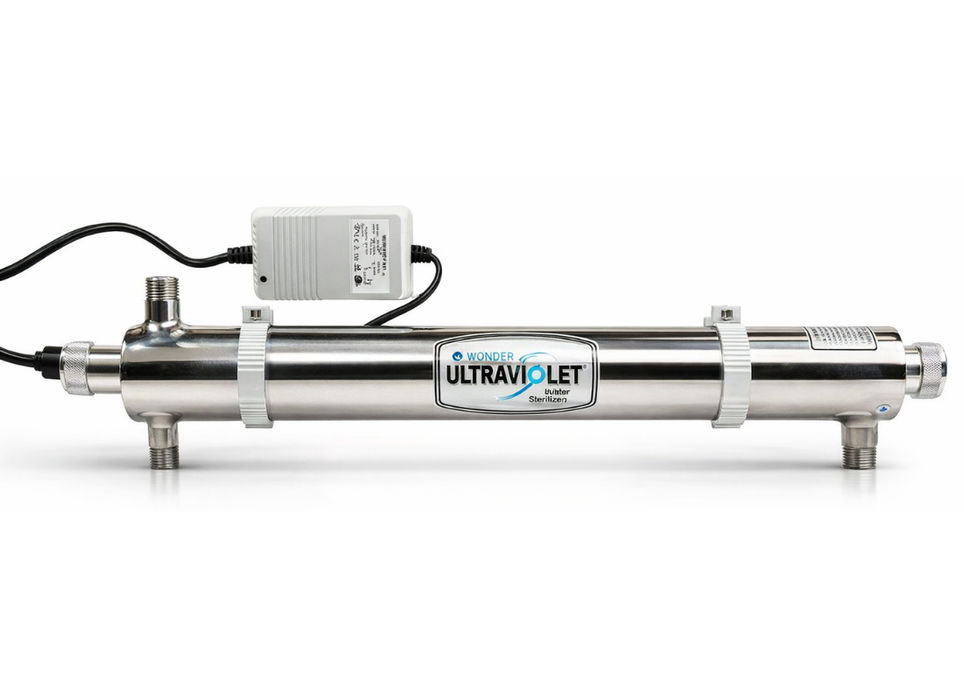

Aquacorp UV E Series UVE720Z UV Water Steriliser Systems for Domestic & Light Commercial Applications (45LPM)

The Aquacorp UV E Series UVE720Z is a high-performance ultraviolet water steriliser designed for larger domestic and light commercial applications requiring reliable, chemical-free water disinfection. Utilising advanced 254nm germicidal UV technology, the system effectively neutralises bacteria, viruses and other harmful microorganisms without impacting water taste, odour or clarity.

Built for durability and long-term operation, the UVE720Z features a premium stainless steel reactor chamber available in either 304 or 316L construction. Each chamber is electro-chemically passivated and hand polished to provide superior corrosion resistance and consistent performance across a wide range of water conditions. With a higher flow capacity of 45LPM, this system is ideal for large homes, multi-bathroom properties, and light commercial applications with increased water demand.

The UVE720Z is supplied as a complete, ready-to-install system including a UV lamp, quartz sleeve, O-rings, mounting brackets and a purpose-built waterproof (IP65) ballast. Optional digital ballast and control box upgrades are available, allowing enhanced monitoring and system control for more advanced installations.

FEATURES

• 254nm germicidal UV disinfection technology
• High quality 304 or 316L stainless steel reactor chamber
• Compact design for easy installation
• Waterproof IP65 ballast for reliable operation
• Audible and LED lamp failure alarm
• No chemicals, taste or odour added to water
• Low maintenance with no moving parts

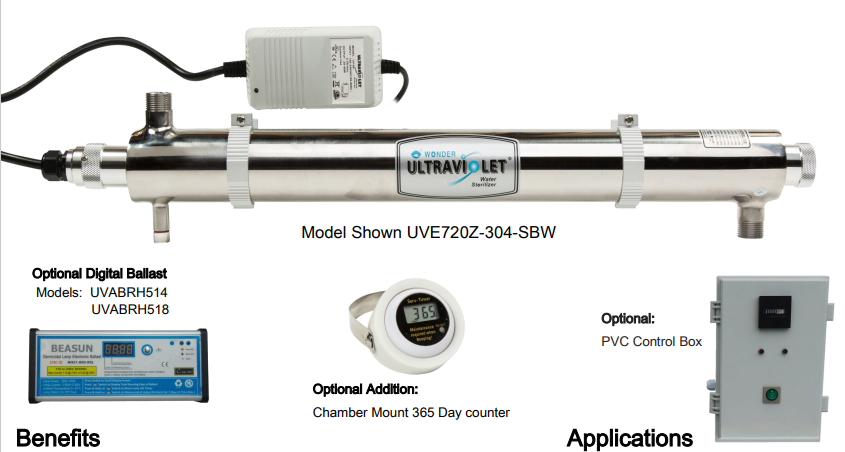

• Optional digital ballast and control box upgrades

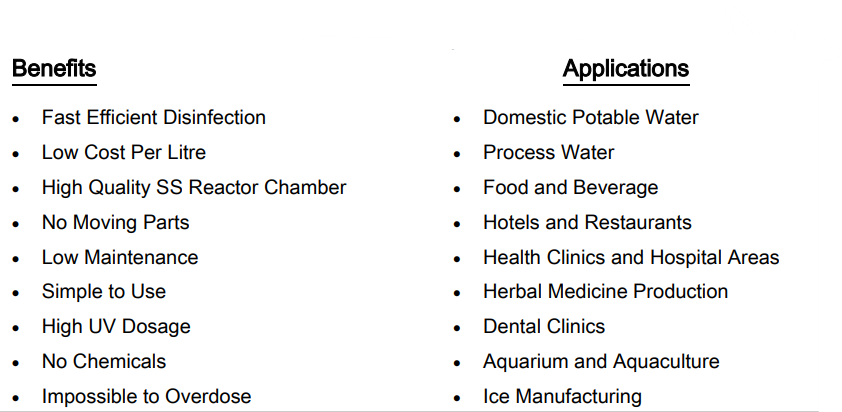

BENEFITS

• Provides fast and effective water disinfection
• Eliminates bacteria and viruses without chemicals
• Low operating cost per litre treated
• Simple installation and operation
• Durable stainless steel construction
• Reliable performance with minimal maintenance
• Safe and environmentally friendly solution

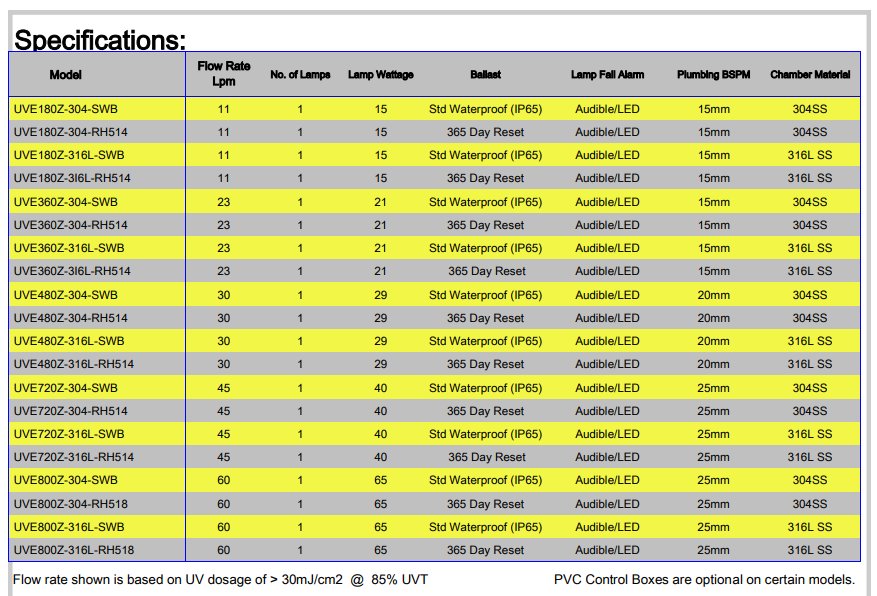

SPECIFICATIONS

• Max Flow Rate: 45 LPM
• UV Dose: >30mJ/cm² @ 85% UVT
• Lamp Configuration: 1 x 40W UV lamp
• Connection Size: 25mm BSPM
• Chamber Material: 304SS or 316L SS
• Ballast Options:
• Standard Waterproof (IP65)
• 365 Day Reset Digital Ballast
• Lamp Failure Alarm: Audible / LED
• Power Supply: 240V AC
• Max Pressure: 690kPa
• Operating Temperature: 0°C – 40°C

APPLICATIONS

• Domestic potable water systems
• Whole house filtration systems
• Undersink and single tap installations
• Food and beverage applications
• Health clinics and dental surgeries
• Aquarium and aquaculture systems
• Ice manufacturing and process water
