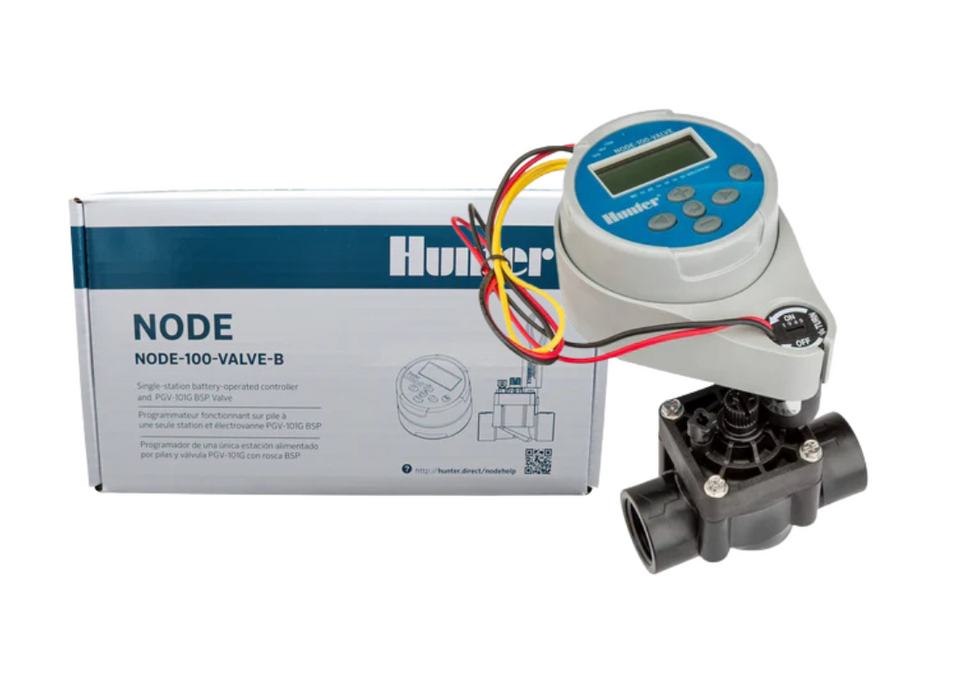

Hunter Node 100 DC Battery Operated Irrigation Controller with PGV-101G-B and DC Coil

The Hunter Node-100DC is the ultimate solution for irrigation in remote or power-restricted areas. This compact, battery-operated controller comes complete with a Hunter PGV101GB 25mm FBSP solenoid valve pre-fitted with a DC latching coil, delivering a reliable plug-and-play package ready for installation.

Engineered with durability in mind, the Node-100DC mounts directly to the valve without screws, wiring, or complicated installation steps. Its rugged, IP68-rated waterproof housing withstands harsh environments, including valve boxes and underground enclosures, ensuring reliable operation even when submerged.

Powered by one or two 9V batteries—or upgraded with the optional SPNODE Solar Panel Kit—the Node provides season-long, maintenance-free irrigation control. Featuring a clear LCD display and familiar Hunter programming, scheduling and adjustments are intuitive and hassle-free.

FEATURES

• Includes Hunter PGV101GB 25mm FBSP valve with DC latching solenoid
• Battery powered (1 or 2 x 9V batteries) or solar-powered option available
• Fixed configuration: 1 station
• 3 independent programs with 4 start times each
• Max station run time: 6 hours
• Manual cycle and programmable OFF setting
• Waterproof, outdoor-rated enclosure (IP68, submersible to 3.5 m)
• Sensor-ready for Hunter Clik and other micro-switch weather sensors
• Solenoid wire length up to 30 m (18 AWG)
• Battery life indicator for proactive replacement
• 2-year manufacturer warranty

ADVANCE FEATURES

• Solar Panel Compatibility – Optional SPNODE Solar Panel Kit eliminates batteries for eco-friendly, maintenance-free operation.
• Easy Retrieve™ Memory – Stores complete programming for quick restoration after tampering or seasonal reset.
• Global Seasonal Adjustment – Adjust irrigation run times easily with a percentage scale, from 10% to 150%.
• Sensor Compatibility – Works with Hunter Clik and similar sensors for smarter irrigation efficiency.
• Waterproof Body – Durable design for reliable underground use.

APPLICATIONS

• Agricultural landscapes
• Greenhouses and hydroponics
• Parks, nurseries, and raised gardens
• Street and highway landscaping
• LEED-certified buildings and green roofs
• Temporary irrigation projects

SPECIFICATIONS

• Power Source: 1–2 x 9V batteries or SPNODE Solar Panel Kit
• Electrical: DC latching solenoids (9–11 VDC only)
• Sensor Inputs: 1
• Operating Temperature: -18°C to 66°C
• Approvals: IP68, CE, FCC, C-Tick
