Rain Smart 1 Zone Packaged Valve Box Kit with Purevision Battery-Operated Bluetooth Controller

The Rain Smart 1-Zone Kit is a complete, ready-to-install valve box solution designed for small irrigation zones in residential gardens, lawns, and landscapes. Powered by the Rain PureVision Pro controller, this system delivers Bluetooth-enabled irrigation control directly from your smartphone via the Rain Vision App, with no need for wiring or external power.

This variant features a 9V DC RN 154 solenoid valve with flow control and a built-in quick-connect plug, allowing for fast and error-free connection to the controller. The valve and manifold components are pre-sized for easy installation, and tool-free swivel fittings with integrated O-rings ensure leak-free joins—no Teflon tape or adhesives required.

Whether you're setting up a new irrigation zone or retrofitting an older one, this kit combines smart tech with contractor-grade hardware for a clean, reliable, and user-friendly installation.

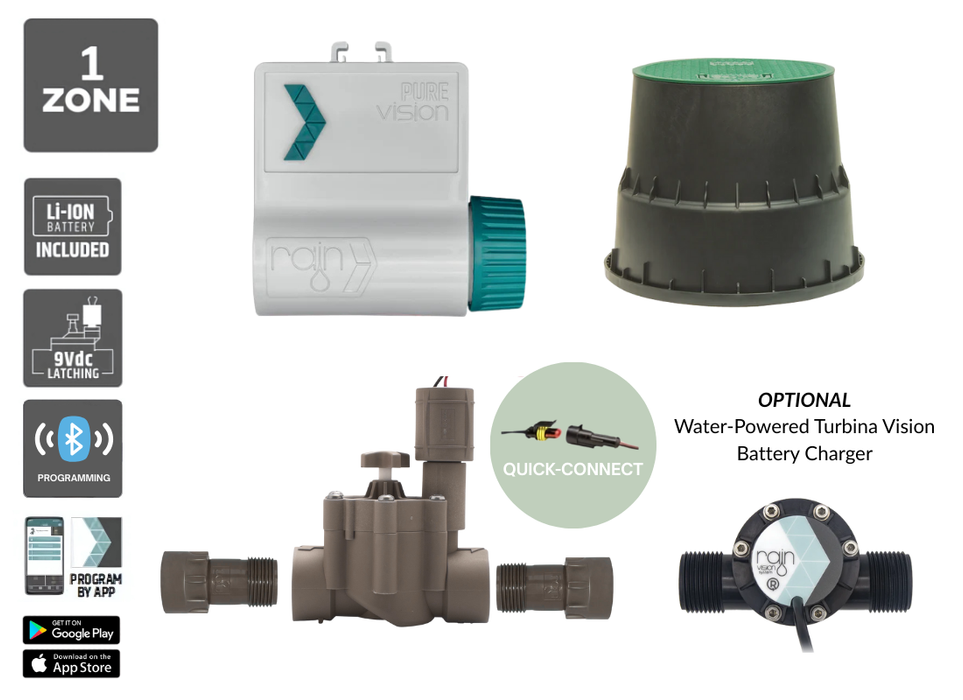

WHATS INCLUDED

• 1 × Rain PureVision Pro Bluetooth Irrigation Controller
  • Battery-powered (rechargeable via USB)
  • Bluetooth 5.0 – fully app-programmable
  • IP68-rated for submersible valve box installations
• 1 × Rain RN 154 25mm Female x Female Solenoid Valve with Flow Control
  • 9V DC latching solenoid with Quick-Connect plug for fast controller connection
  • Manual bleed screw and adjustable flow control

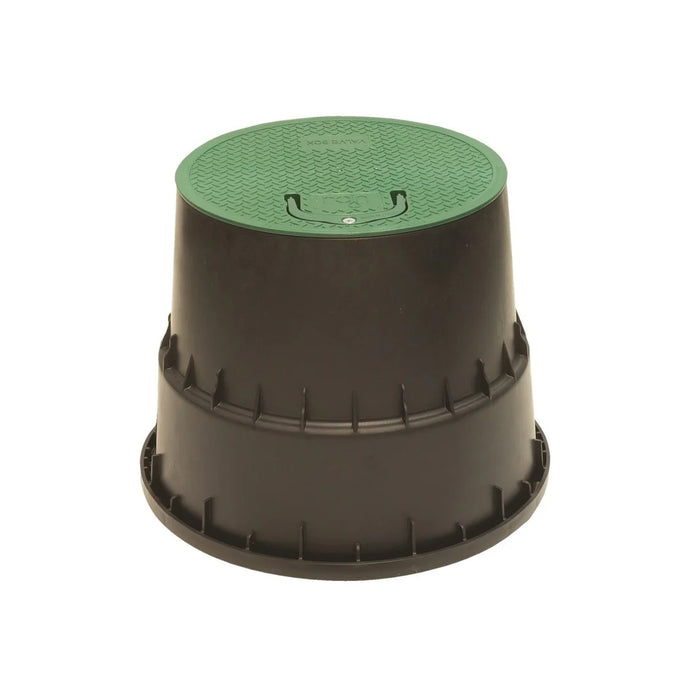

• 1 × Rain PZCM 25 Round Valve Box with Lift Handle
  • Commercial-grade, compact valve box
• 2 × Rain 25mm PVC Manifold Swivel Adaptors (Male x Female) with O-Rings
  • Threaded connections with integrated O-rings
  • Tool-free and Teflon-free installation

SPECIFICATIONS

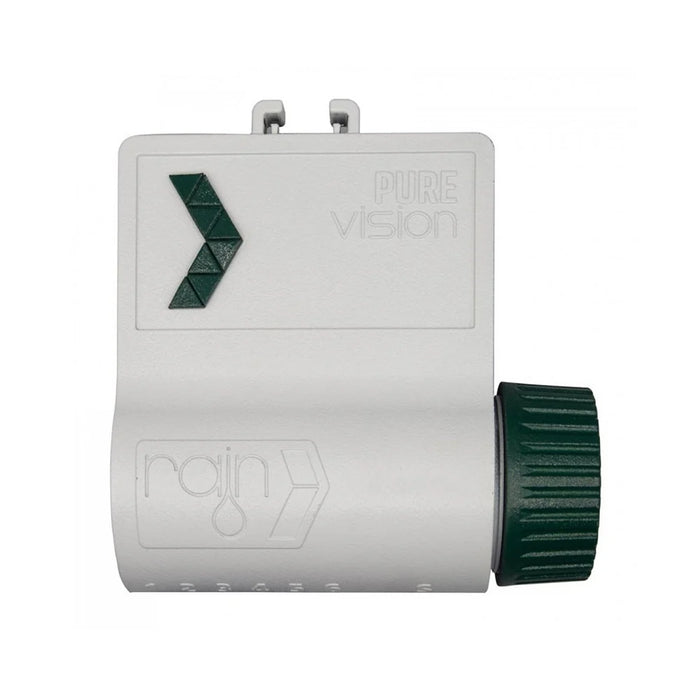

PureVision Pro Controller

• Power Supply: Rechargeable lithium-ion battery (18650, 2000mAh)
• Programming Modes: EASY, PRO, and ONE-BY-ONE
• Connectivity: Bluetooth 5.0

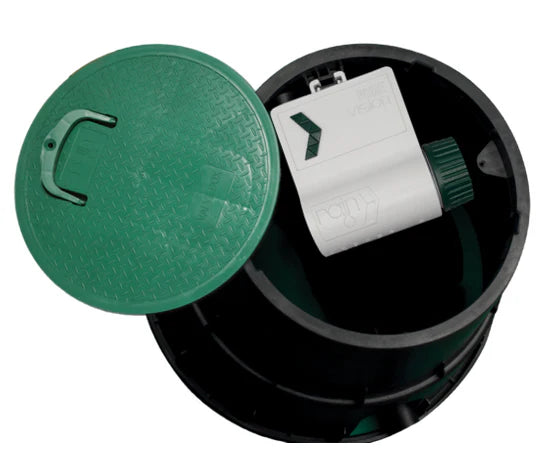

• Mounting: Valve box (IP68-rated, submersible)
• Internet Access: Wi-Fi-ready via Nuvola Vision Hub (sold separately)
• Compatible Solenoids: 9V DC latching type

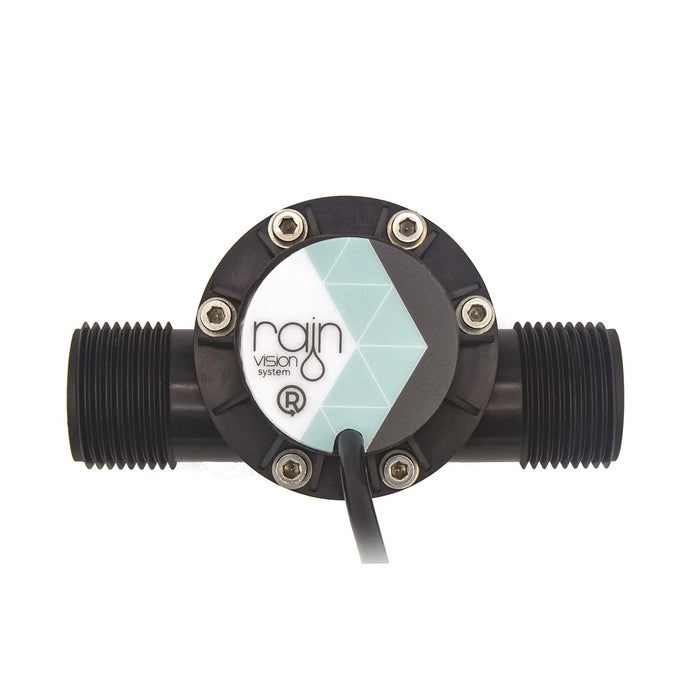

• Charging: USB (Turbina or solar optional add-ons)

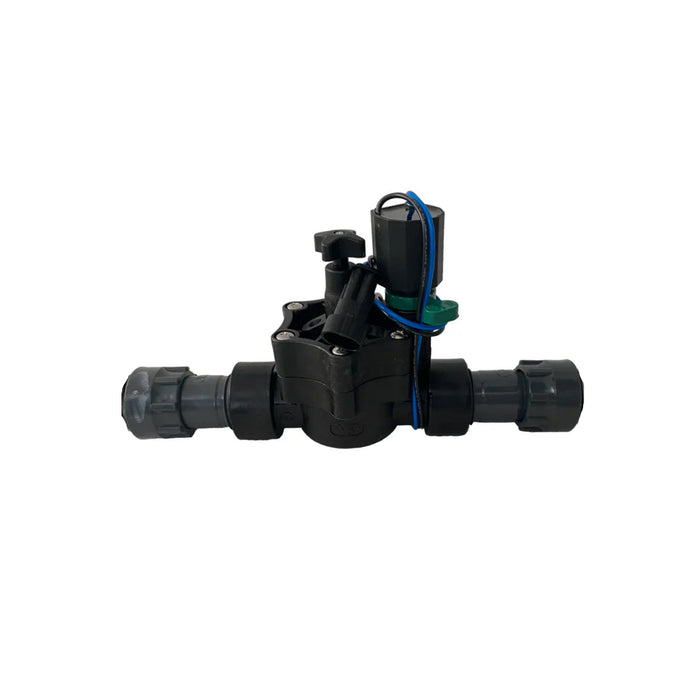

RN 154 Solenoid Valve

• Valve Size: 25mm (1") Female x Female
• Voltage: 9V DC latching
• Flow Control: Integrated adjustable knob
• Flow Range: 20–90 L/min
• Pressure Range: 1–12 bar
• Quick-Connect Plug: Yes – for simple plug-in setup with PureVision

Valve Box & Fittings

• Valve Box Model: PZCM 25 Round Commercial Box
• Fittings: PVC Manifold Adaptors, 25mm M x F with NBR O-rings
• Pressure Rating: PN12
• Operating Temp Range: 4°C – 50°C

IDEAL FOR

• Single irrigation zones (garden bed, small lawn, dripline area)
• Installations with no nearby power
• Retrofit upgrades from manual systems or outdated controllers
• Users wanting smartphone scheduling with minimal effort
• Landscapes requiring a clean, professionally-built valve box assembly
