Rain Smart 2 Zone Packaged Valve Box Kit with Purevision Battery-Operated Bluetooth Controller

The Rain Smart 2-Zone Kit is a fully integrated valve box solution that combines Rain’s most advanced irrigation technology with a complete, professional-grade manifold setup. At the heart of the kit is the Rain PureVision 2-Zone Bluetooth Controller, a battery-powered, app-controlled irrigation controller that can be recharged via USB or optionally via the included Turbina Vision water-powered charger.

Pre-assembled for easy installation, the kit includes two RN155 Plus 9V DC solenoid valves with quick-connect coils, a PVC 2-zone manifold with swivel fittings, and Rain’s EZ-Open PZRM 113 commercial-grade valve box. The included GRID 113 positioning rack ensures a clean, stable, and accessible layout inside the valve box—ideal for long-term maintenance and system expansion.

The Rain Smart 2-Zone Kit offers reliable, Bluetooth-controlled irrigation in a clean, expandable format—ready to drop into any professional or DIY irrigation setup.

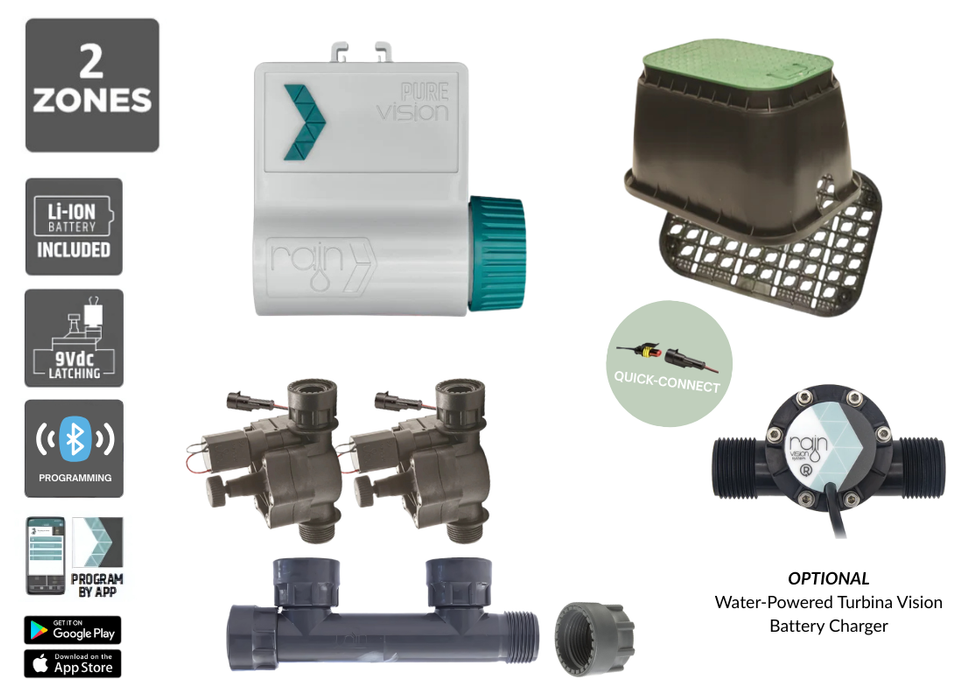

WHATS INCLUDED

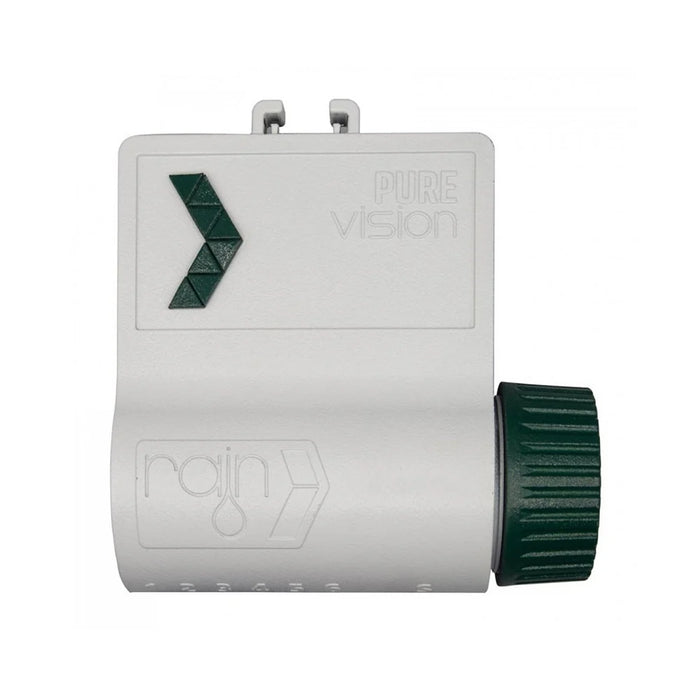

• 1 × Rain PureVision 2-Zone Bluetooth Controller
  • Rechargeable lithium battery
  • Bluetooth 5.0 with Vision App control
  • Wi-Fi capable via Nuvola hub (sold separately)

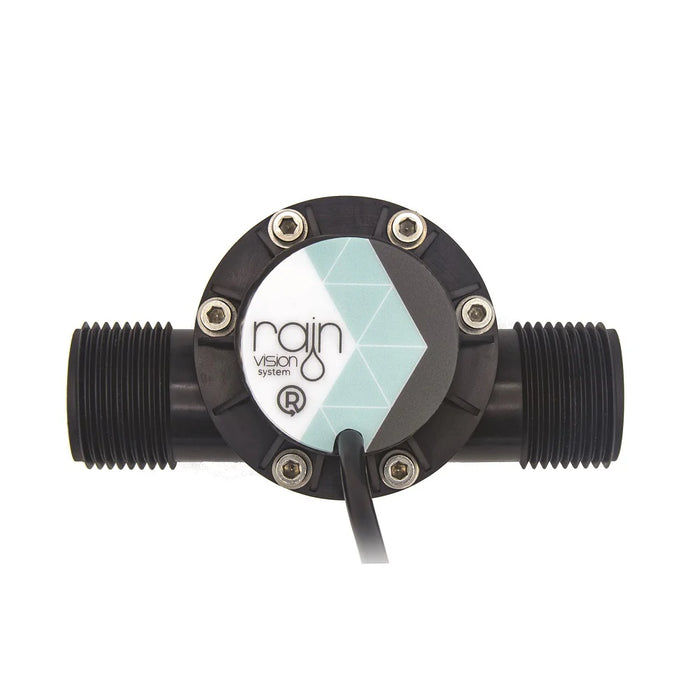

• 1 × Rain Turbina Vision Water-Powered Battery Charger (optional)
  • Automatically recharges the controller using irrigation water flow

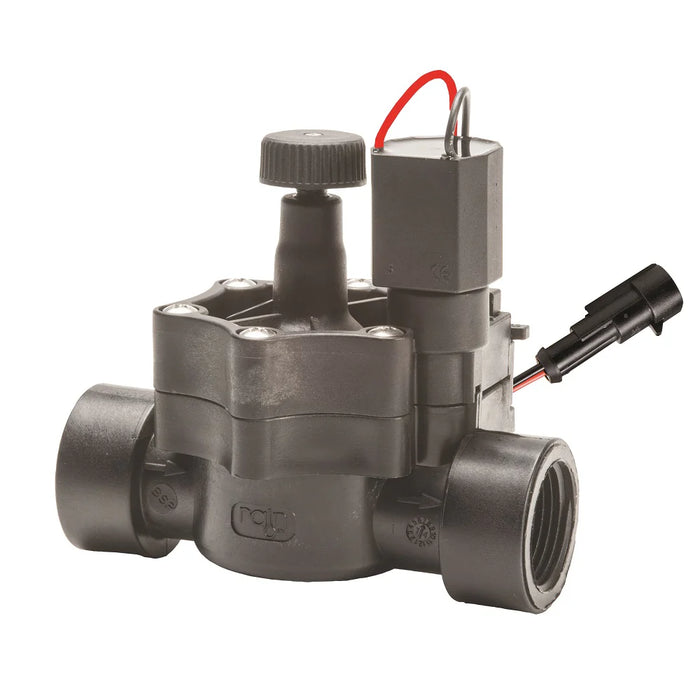

• 2 × Rain RN155 Plus 25mm Solenoid Valves (9V DC Latching)
  • Quick-connect coils for fast plug-and-play setup
  • Manual bleed and flow control
• 1 × Rain PVC 25mm Multiport Manifold (2-Zone)
  • Swivel connections with integrated O-rings
  • No Teflon or tools required
• 1 × Rain PVC 25mm Female Manifold End Cap with O-Ring

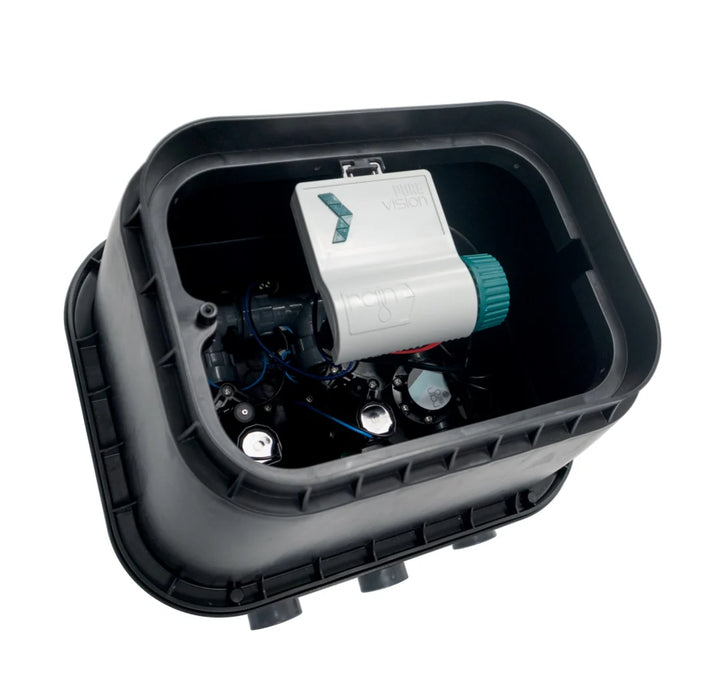

• 1 × Rain PZRM 113 12" EZ-Open Commercial Valve Box
  • Large rectangular body with patented lift handle
• 1 × Rain GRID 113 Raised Positioning Rack
  • Secures manifold and valves in place for clean installation
  • Wall-mountable or valve box-ready

SPECIFICATIONS

• Zones: 2
• Controller Type: Battery-powered, IP68-rated
• Connectivity: Bluetooth (standard), Wi-Fi (via optional Nuvola)
• Valve Type: 25mm RN155 Plus (9V DC latching, quick connect)
• Flow Range: 20–90 L/min
• Pressure Range: 1–12 bar
• Valve Box Dimensions: 395mm W × 525mm L × 330mm D

APPLICATIONS

• Multi-zone home irrigation systems
• Valve box retrofits or new installations
• Off-grid or remote irrigation areas
• Installers seeking a clean, pre-packaged, and expandable 2-zone system
