Rain Smart 4 Zone Packaged Valve Box Kit with Purevision Battery-Operated Bluetooth Controller

The Rain Smart 4-Zone Kit is a complete, Bluetooth-enabled irrigation solution designed for fast and professional multi-zone installations. Featuring the Rain PureVision 4-Station Controller, this package gives you full scheduling control from your smartphone via the Rain Vision App, with no wiring, no mains power, and no hassle.

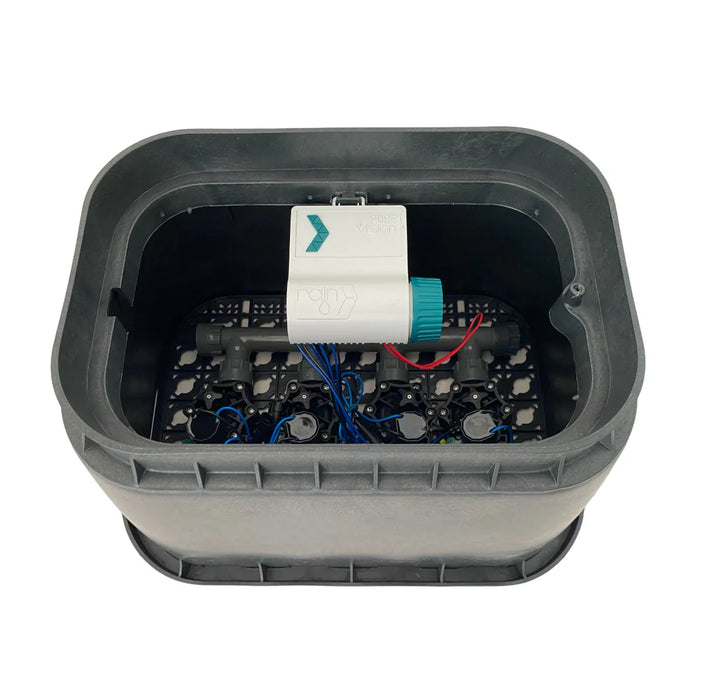

This kit includes four Rain RN155 Plus 25mm solenoid valves with quick-connect 9V DC latching coils, mounted to a 4-outlet PVC manifold using swivel O-ring fittings for a clean, Teflon-free, tool-free setup. All components are housed in the Rain PZRM 113 medium commercial valve box, supported by a GRID 113 raised positioning rack to keep everything neat and easy to access.

Built for both new systems and retrofits, the Rain Smart 4-Zone Kit is ideal for residential and light commercial use where reliability, smart control, and easy maintenance are key.

The Rain Smart 4-Zone Kit delivers app-controlled water management with rugged hardware, compact design, and professional-grade performance.

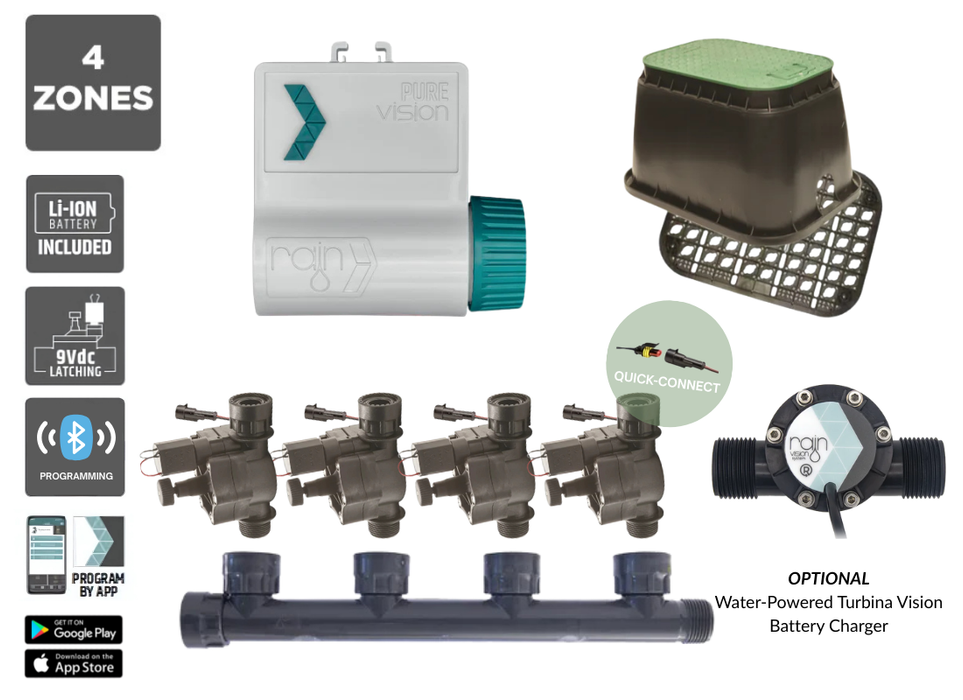

WHATS INCLUDED

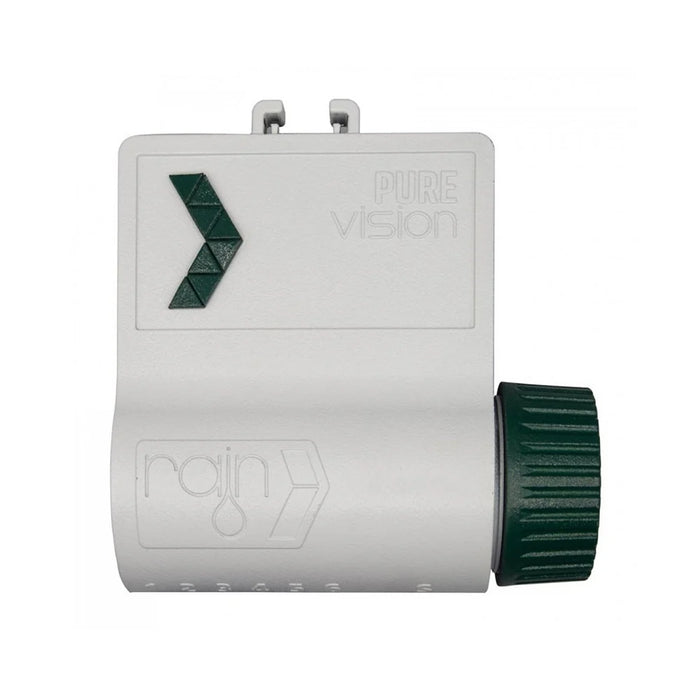

• 1 × Rain PureVision 4-Zone Bluetooth Irrigation Controller
  • Rechargeable battery-powered (USB charge)
  • Bluetooth 5.0 app control via Rain Vision App
  • Optional Wi-Fi support via Nuvola Vision hub

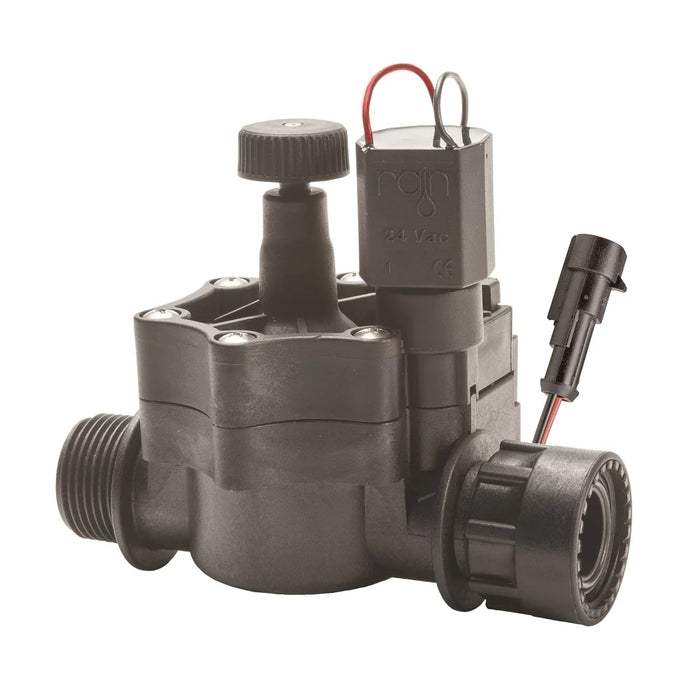

• 4 × Rain RN155 Plus 25mm Solenoid Valves (9V DC Latching)
  • Quick-connect coils for easy installation
  • Integrated flow control and manual bleed
• 1 × Rain PVC 25mm 4-Zone Multiport Manifold with Swivel Connections
  • Leak-free O-ring design – no Teflon required
• 1 × Rain PVC 25mm Manifold End Cap with O-Ring

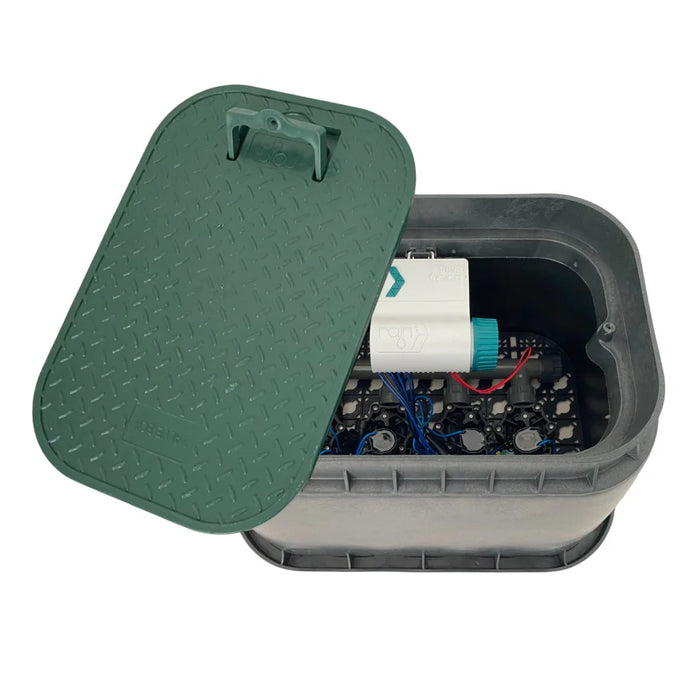

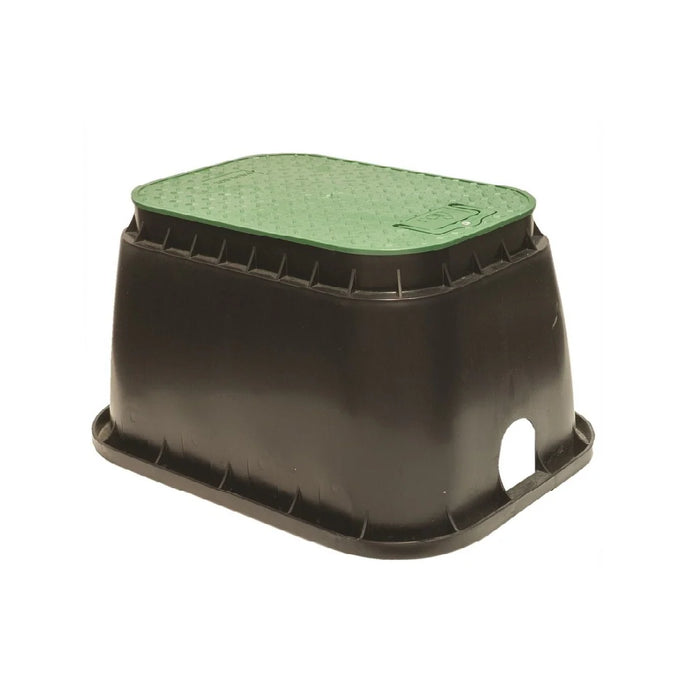

• 1 × Rain PZRM 113 Medium Commercial Rectangular Valve Box
  • 395mm W × 525mm L × 330mm D with EZ-Open handle

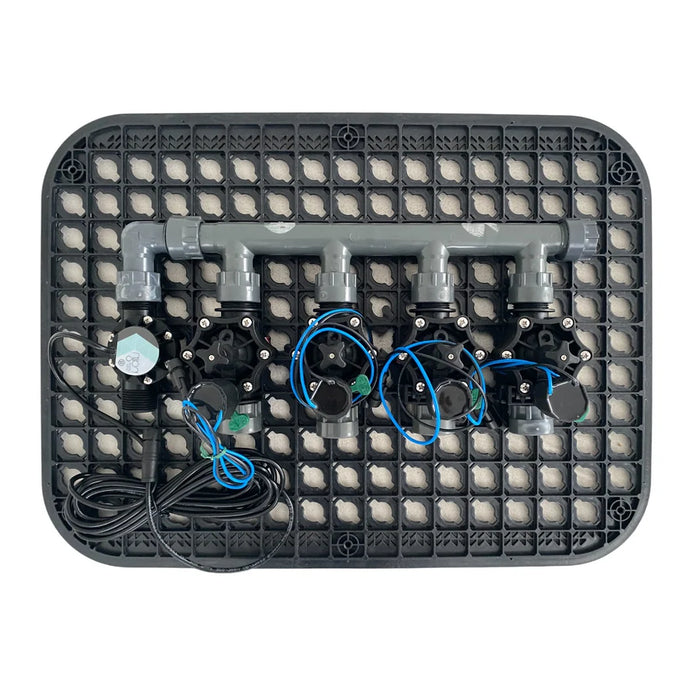

• 1 × Rain GRID 113 Positioning Rack
  • Holds manifold and valves securely
  • Suitable for valve box or wall mounting

SPECIFICATIONS

• Zones Supported: 4
• Controller Type: Battery-powered, IP68-rated, Bluetooth
• Programming Modes: EASY, PRO, ONE-BY-ONE
• Valve Type: RN155 Plus, 25mm, 9V DC latching with quick-connect
• Flow Range: 20–90 L/min
• Operating Pressure: 1–12 bar
• Manifold Type: 4-outlet PVC with swivel fittings
• Valve Box Size: 395mm W × 525mm L × 330mm D

APPLICATIONS

• Multi-zone home irrigation systems
• Gardens, lawns, planter beds, and dripline management
• Smart upgrades and controller retrofits
• Clean, pre-built valve box installations
• Off-grid or maintenance-light zones
