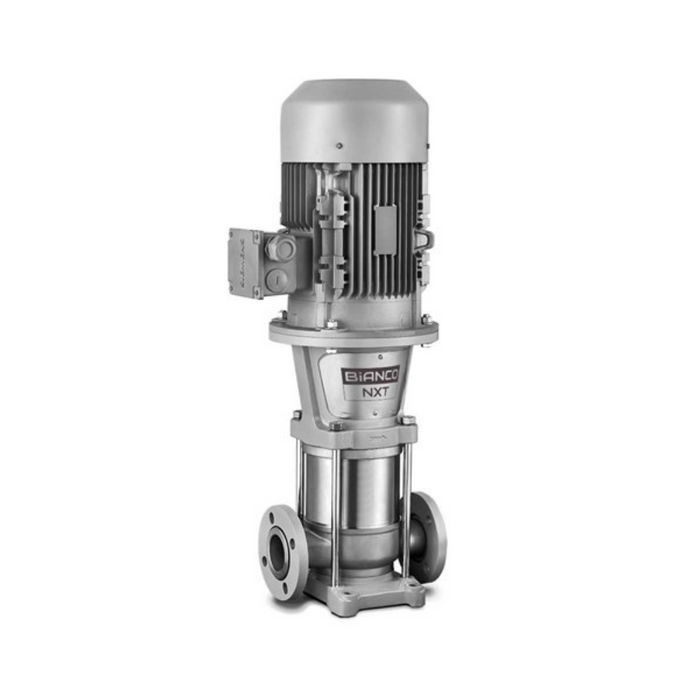

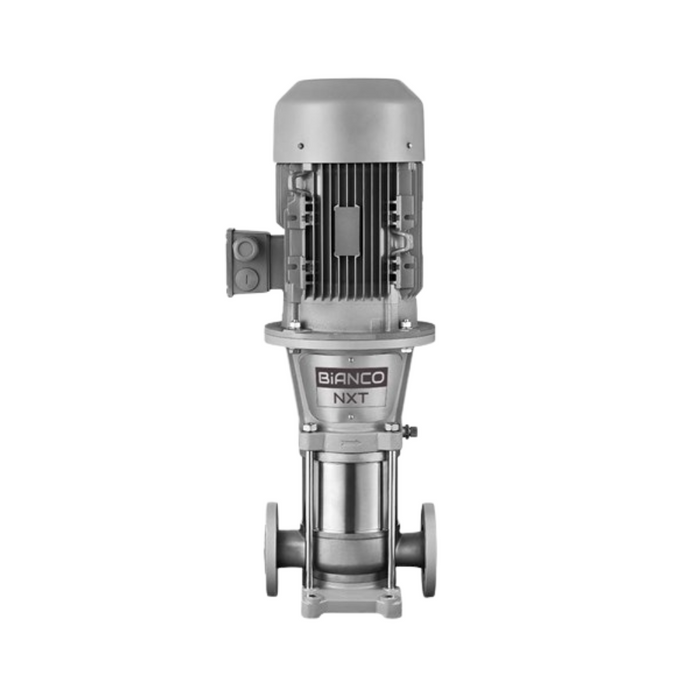

Bianco Summit VMS10 Series 304ss Vertical Multistage Pumps (Max 160LPM)

The Bianco Summit VMS10 Series is a high-capacity vertical multistage pump designed to deliver exceptional performance in large-scale water transfer and pressure boosting applications. With a maximum flow rate of 160 litres per minute, this robust and energy-efficient pump is ideal for commercial, industrial, and agricultural systems requiring high flow and consistent pressure.

Thanks to its space-saving horizontal in-line design with identical inlet and outlet connections, the VMS10 is easy to install and integrate into existing pipelines. The entire hydraulic assembly—impeller, shaft, and pump body—is constructed from premium 304 stainless steel, offering excellent corrosion resistance and long-term durability. The graphite and silicon carbide mechanical seal ensures reliable performance even in demanding fluid conditions.

Maintenance is simplified with the removable coupling design, allowing the motor to be replaced without disturbing the pump from the pipework. The motor is a totally enclosed, fan-cooled 2-pole unit with an IP55 rating, built to operate in harsh environments between -20°C and +120°C and withstand pressures up to 25 bar. The bearings are lubricated by the pumped liquid, further reducing service requirements and enhancing operational life.

FEATURES

• Enhanced energy efficiency
• Robust Construction for longevity
• Compact design for easy installation achieved by having a horizontal line installation with the same size inlet and outlet connection
• Quiet operation
• Made from high quality materials; pump body, shaft and impeller made of 304 stainless steel, mechanical seal made from graphite/S-IC
• The removable coupling design allows for the convenient replacement of the motor without dismantling the pump from the pipeline
• Designed for working conditions between -20°C to +120°C up to 25 bar pressure
• Bearings lubricated with the pumped water
• Motor fitted with a totally enclosed, fan-cooled 2 pole motor
• IP55 rating

APPLICATIONS

• Water Supply
• Industrial Boosting
• Industrial Liquid Transfer
• Water Treatment
• Irrigation

MODELS
