Bianco Summit VMS15 Series 304ss Vertical Multistage Variable Speed Packaged Pump Station with NXT VFD Drive (Max 415LPM)

The Bianco Summit VMS15 Series Variable Speed Packaged Pump Station is a robust, high-capacity pressure boosting system engineered for large-scale commercial, industrial, and agricultural applications. Delivering a maximum flow rate of 415 litres per minute, this system offers powerful and intelligent water pressure control with optimal energy efficiency.

Built around the Bianco VMS15 vertical multistage pump—constructed entirely from corrosion-resistant 304 stainless steel—the station is supplied fully assembled on a galvanised base. It includes a stainless steel manifold, WaterMarked spring check valve, stainless steel isolation ball valve, a 30-bar pressure gauge, and a 10-bar rated stainless steel pressure tank with isolating valve, making it a ready-to-deploy solution for high-demand installations.

At the core of the system is the Bianco NXT DRIVE Variable Frequency Drive, which enables constant pressure control through real-time motor speed adjustment. The NXT DRIVE features a bright, full-colour touchscreen, a simple setup wizard, and built-in diagnostics for easy monitoring. A 4–20mA pressure transducer ensures precise control, while integrated protections guard against dry run, high/low voltage, short circuit, phase failure, over-temperature, and sensor fault.

With soft-start capability, digital control, and a compact footprint, the VMS15 Drive system is designed for high-volume applications where reliability, efficiency, and advanced control are critical.

KIT INCLUDES

• VMS Pump
• NXT Drive (Variable Frequency Drive)
• Counter Flange (in DN25 to DN65)
• Fiber Gaskets to suit counter flanges
• Watermarked Spring Check Valve
• Manifold (304 Stainless Steel)
• Pressure Transducer
• 30 Bar Liquid Filled Pressure Gauge
• Galvanised Single/Double/Triple Base
• Ball Valve (304 Stainless Steel)
• Pressure Tank Included in Scope of Supply

FEATURES

• Complete variable speed pressure pump system
• NXT DRIVE with full-colour touchscreen and intuitive setup
• 4–20mA pressure transducer for accurate constant pressure control
• High-efficiency 304 stainless steel pump, shaft, and impellers
• Includes galvanised base, SS manifold, check valve, and isolation valves
• 10-bar stainless steel pressure tank with isolator
• VFD enables soft-start, energy saving, and system protection
• IP55-rated, fan-cooled motor with Class F insulation
• Operates in temperatures from -15°C to +120°C and pressures up to 33 bar

APPLICATIONS

• Variable speed pressure boosting for residential and commercial sites
• Water supply with stable pressure for irrigation systems
• Energy-efficient booster setups for multi-storey buildings
• Water transfer requiring constant pressure delivery
• Compact plant rooms or systems requiring VFD integration

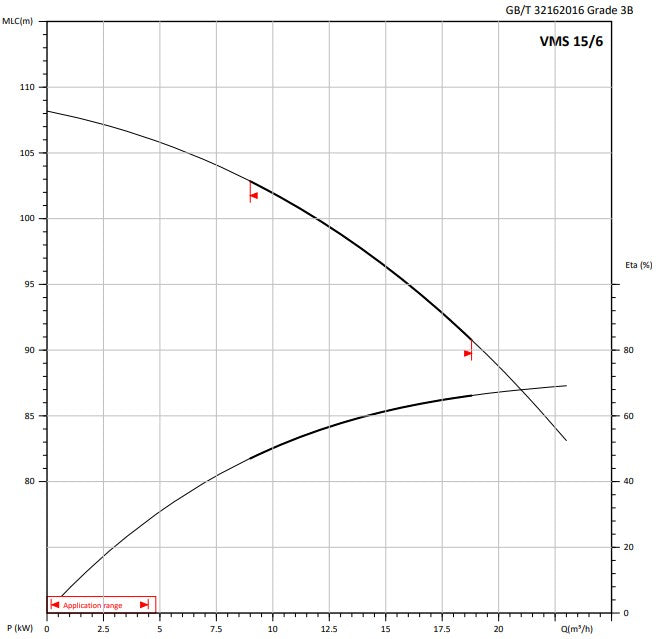

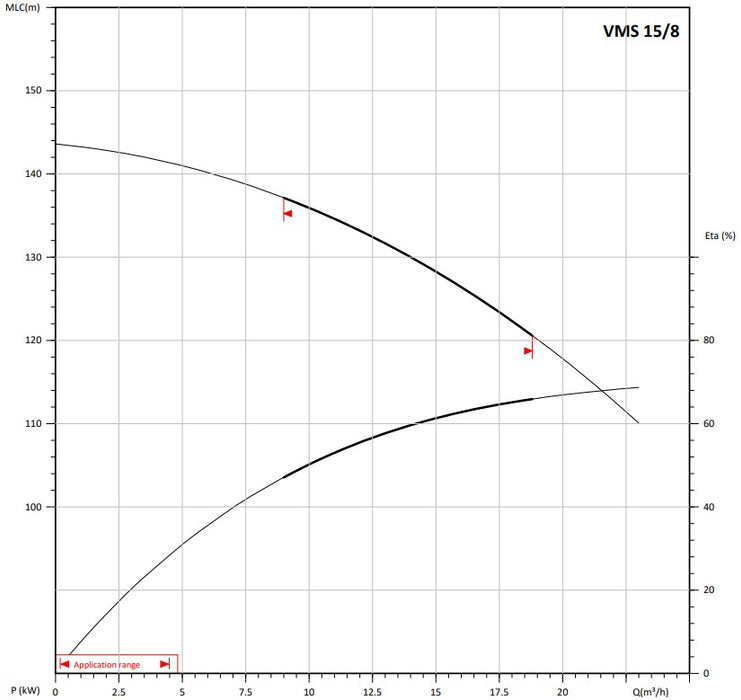

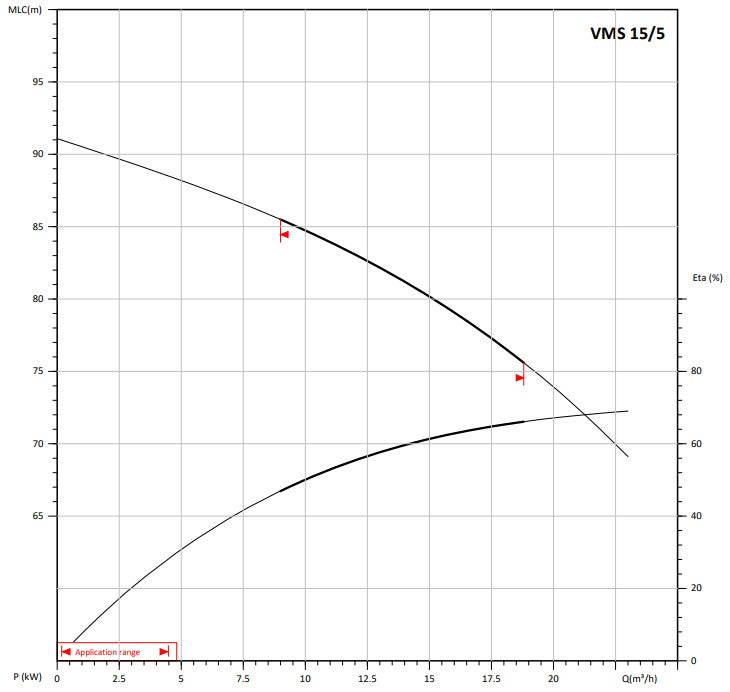

MODELS
