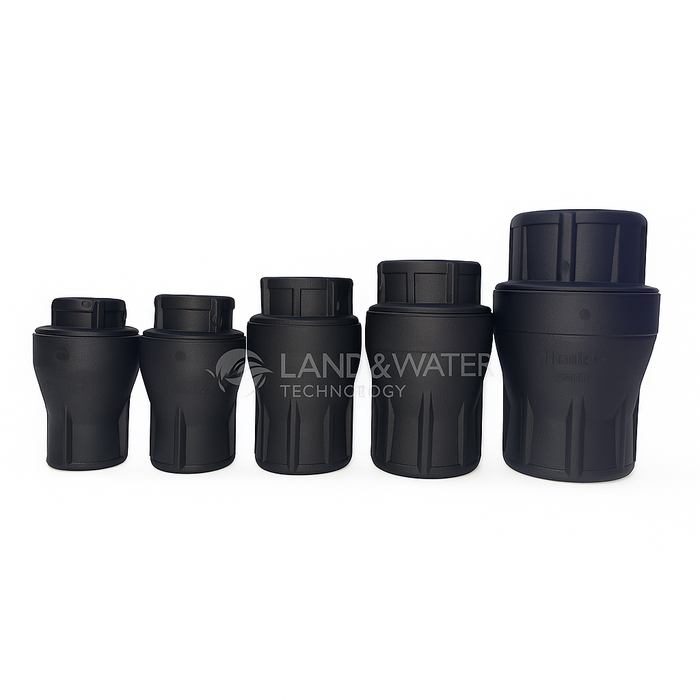

Philmac Full Flow High Quality Poly Check Valves (Non-Return Valve)

Philmac Full Flow High Quality Poly Check Valves (Non-Return Valve)

by Philmac
PN: 95802200
Sale Sale
$33.00
$33.00 - $88.00
$33.00
$29.19
$29.19 - $80.27
$29.19

Philmac High Quality Poly Threaded Full Flow Check Valves (Non Return Valve)

 DOWNLOAD PRODUCT BROCHURE

Philmac Non-Return Valves have been successfully servicing the Australian market for more than 20 years with a reputation for quality and reliability. The Philmac Non-Return Valve is the perfect choice for preventing back flow so pipelines do not drain and cause damage to high value equipment such as pumps.

Engineered to meet rigorous standards, the Philmac Foot and Non-Return Valve excels in performance and longevity. Whether used in agricultural, industrial, or residential settings. With its seamless conversion into a Non-Return Valve by removing the filter, it is versatile and ideal for protecting pipelines from backflow and safeguarding valuable equipment like pumps from potential damage caused by draining.

FEATURES:

  • Made from Advanced Materials: Manufactured from lightweight high performance thermoplastic materials which have excellent impact, UV and corrosion resistance. The material is non-toxic and taint free.
  • Pump Check Valve: The philmac non-return valves are built so well that they can be used as a suction valve on a firefighting or centrifugal pumping system
  • Low Pressure Shut-off: Designed to seal off at 20 kPa making them well suited to gravity feed systems
  • Piston & Seal: The seal remains the same proven design which allows it to reliably seal at low pressure.
  • High Pressure Rating: Foot and non-return valves are rated to 1600 kPa (static shutoff) to meet the requirements of high pressure systems.
  • Flow Path: Improved flow path minimising turbulent zones.
  • Multi-position Installation: The valves have been designed to work in either vertical or horizontal position for flexible installation.

INSTALLATION

  • Apply PTFE tape or approved sealant to the male thread the non-return/foot valveis to be screwed onto. Sufficient tape needs to be applied to ensure a water tight seal.
  • Screw the valve onto male thread by hand
    until firm. Confirm the correct orientation of the valve by checking the water direction arrow is pointing downstream.
  • Using a pipe wrench or multi-grips further screw the non-return/foot valve onto the male thread until tight. Where necessary ensure the male thread is held stationary to avoid it from moving. Do not use pipe wrench or multi-grips
    on the body of the nonreturn/ foot valve.
