Hunter EZDM Decoder Output Module for HCC & ICC2 Controllers
Hunter EZDM Decoder Output Module for HCC & ICC2 Controllers

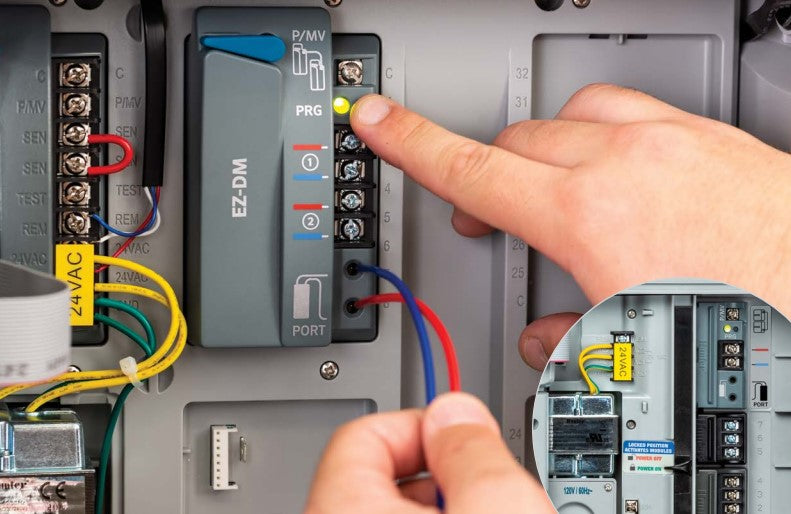

The Hunter EZDM is a plug-in decoder output module designed to enable two-wire EZ Decoder System functionality on HCC and ICC2 controllers. It allows for the connection and control of up to 54 decoder-operated stations on a single controller, streamlining installation and significantly reducing wire usage across large-scale irrigation projects.
This compact module is the heart of Hunter’s EZ Decoder System integration for mid-sized to large commercial and municipal irrigation systems. It connects easily to the controller facepack and communicates via a two-wire path to compatible EZ-1 single-station decoders installed in the field. With up to 2 two-wire paths, the EZDM simplifies zoning and minimizes complex wiring while maintaining robust and reliable valve activation.
The EZDM does not require sensor decoders, earth grounding, or additional network modules, and it supports hybrid conventional and decoder operation, making it ideal for system upgrades or phased expansions.
APPLICATIONS
- Compatible with Hunter HCC and ICC2 controllers
- Ideal for sports fields, parks, schools, and commercial landscapes
- Suited for retrofits or new installations where simplified wiring is required
FEATURES
- Supports up to 54 decoder stations
- Compatible with EZ-1 single-station decoders
- Operates via two-wire path with waterproof connections recommended (DBRY-6)
- Does not require grounding on the two-wire path
- Allows hybrid operation with conventional station outputs
- Reliable, compact design with plug-and-play installation
- Backed by 3-year Hunter warranty
SPECIFICATIONS
- Model: EZDM
- Compatible Controllers: HCC, ICC2
- Decoder Station Support: Up to 54 stations
- Two-wire Paths Supported: 2
- Max Distance: EZ-1 up to 1,333 m (using 4 mm² cable)
- Network Connection: None
- Flow Support: No flow functionality
- Valve Connection: Two-wire only
- Country of Origin: Malaysia
