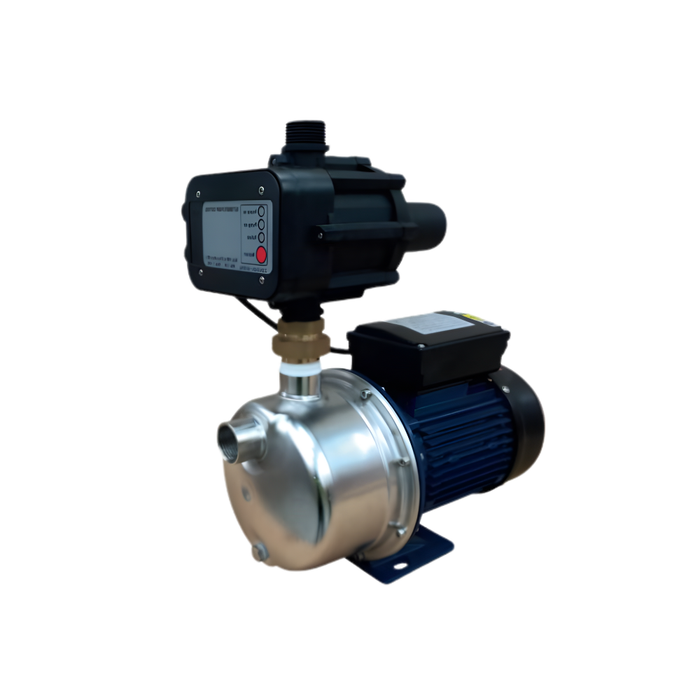

Franklin Electric AquaDuty ADJ1100 1.00kW Self Priming Presssure Jet Pump with Controller

The Franklin Electric AquaDuty ADJ1100 Self-Priming Jet Pump is a high-performance stainless steel pressure system designed for reliable water delivery and consistent pressure across demanding household and light commercial applications. Featuring a powerful 1.0kW motor, stainless steel pump body, and automatic controller, this system is built to deliver durability, efficiency, and trouble-free operation.

Ideal for deep suction applications and larger water systems, the ADJ1100 provides strong and steady water pressure for irrigation, washdown, and domestic water supply systems. Its advanced self-priming design allows for suction lifts up to 8 metres, while the integrated 1.5 Bar controller ensures automatic pump management, dry-run protection, and smooth operation with minimal user input.

APPLICATIONS

• Domestic water supply and pressure boosting
• Garden irrigation and sprinkler systems
• Tank or well water transfer
• Washing systems and fountains
• Continuous or intermittent household water distribution

FEATURES

• Heavy-duty 1.0 kW induction motor for demanding applications
• Self-priming design with suction lift up to 8 metres
• AISI 304 stainless steel pump body for corrosion resistance
• Ceramic/carbon mechanical seal for long service life
• Integrated automatic 1.5 Bar controller with dry-run protection
• Quiet and efficient operation with compact design
• AS/NZS 4020 approved for potable water applications
• Easy maintenance and reliable continuous-duty motor

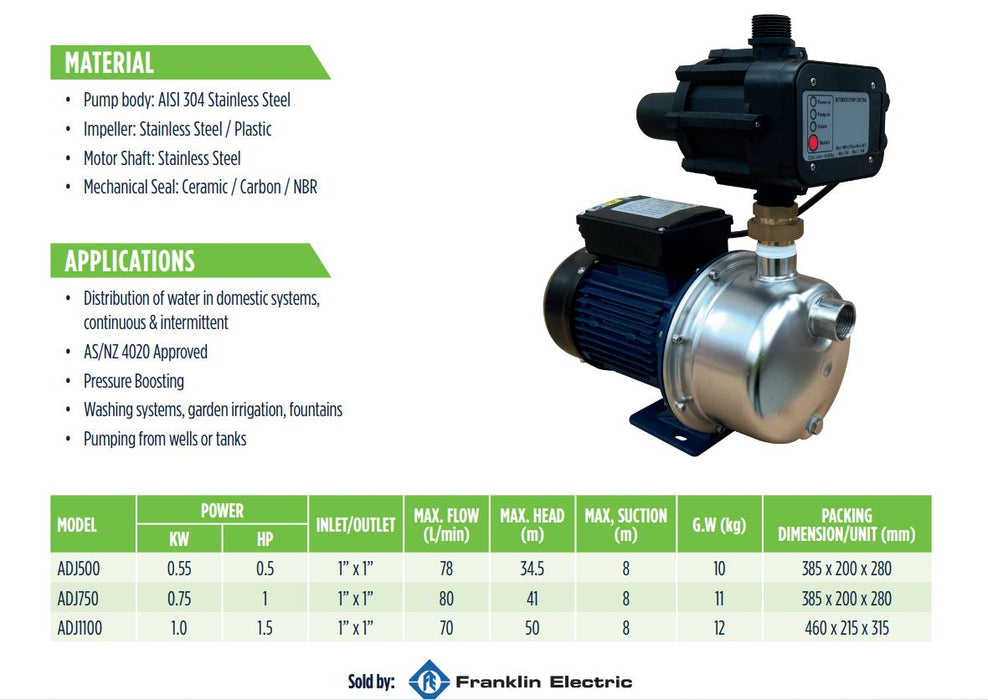

SPECIFICATIONS

• Power: 1.0 kW (1.5 HP)
• Max Flow: 70 LPM
• Max Pressure: 500 kPa (50 m head)
• Inlet / Outlet: 1″ BSP F
• Max Suction Head: 8 m
• Max Liquid Temperature: 45 °C
• Max Ambient Temperature: 40 °C
• Motor Type: 2-pole induction (n = 2900 r/min)
• Insulation Class: F
• Protection Rating: IP55
• Mechanical Seal: Ceramic / Carbon / NBR
• Pump Body: AISI 304 Stainless Steel
• Impeller: Stainless Steel / Plastic
• Weight: 12 kg


INCLUDED

• Franklin Electric AquaDuty ADJ1100 Jet Pump
• 1.5 Bar Automatic Pump Controller with dry-run protection
• Pre-wired AU/NZ plug for quick connection
• User Manual
