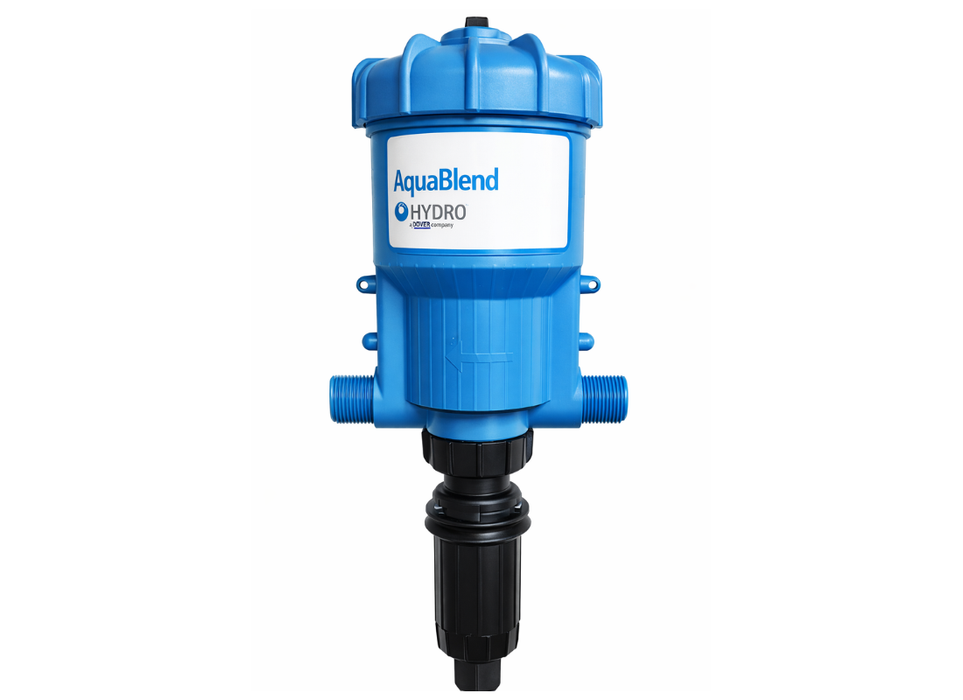

Hydro Systems AquaBlend Acetal Proportional Dosing Pump for Agricultural Medication (Max 2.5 m³/hr)

The Hydro Systems AquaBlend proportional dosing pump is a reliable water-driven chemical injector designed for precise medication and treatment of livestock drinking water and agricultural water systems. Powered entirely by water flow, the AquaBlend automatically injects a consistent concentration of additives such as vaccines, medications, nutrients, disinfectants, or cleaning solutions without requiring electricity.

Constructed with a durable acetal housing, the AquaBlend is engineered to withstand demanding agricultural environments while providing accurate and repeatable dosing. The injector works proportionally with water flow, ensuring that the correct amount of chemical concentrate is injected regardless of fluctuations in pressure or flow. This makes it ideal for poultry, pig, and livestock watering systems where consistent dosing is critical for animal health and system hygiene.

Designed for quick installation and tool-free maintenance, the AquaBlend supports both liquid chemicals and wettable powders, offering excellent versatility across agricultural, livestock, and water treatment applications. With flow capacities up to 2.5 m³/hr, the system provides dependable injection performance for small to medium water supply systems.

FEATURES

• Water-driven proportional dosing – no electricity required
• Accurate injection performance across varying water flows
• Suitable for liquid chemicals and wettable powders
• ON/OFF control for easy dosing management
• Tool-free maintenance design for fast servicing
• Durable acetal housing suitable for agricultural environments
• Consistent dosing regardless of pressure or flow fluctuations

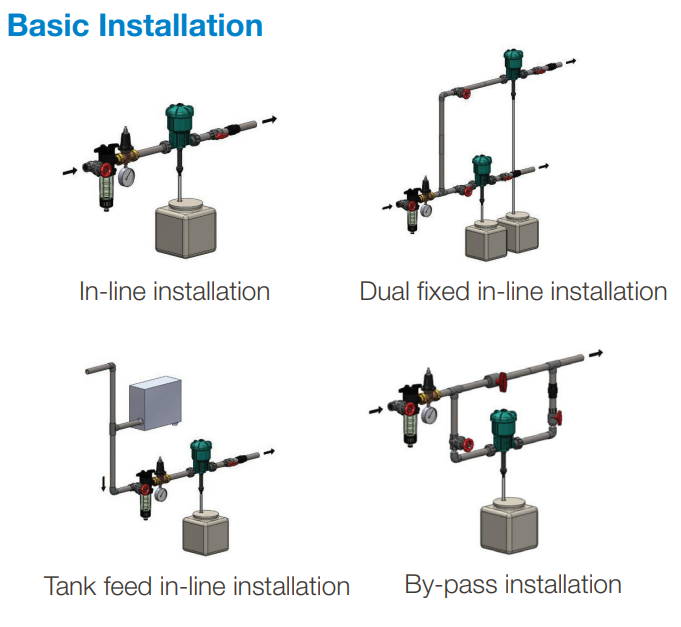

• Simple installation for in-line or by-pass configurations

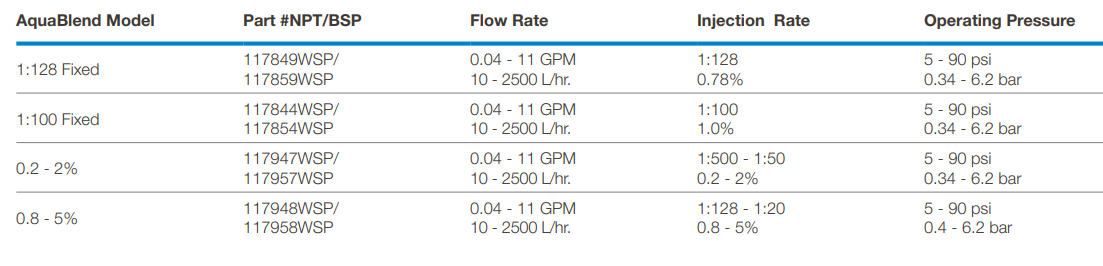

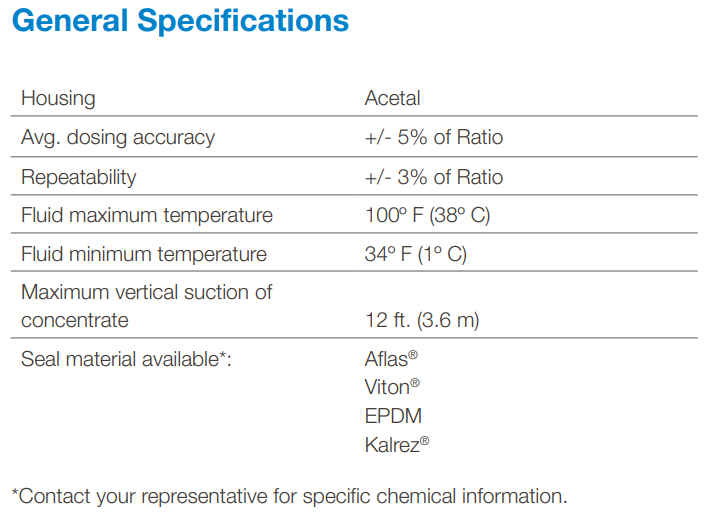

SPECIFICATIONS

• Maximum Flow Rate: 10 – 2500 L/hr (2.5 m³/hr)
• Operating Pressure: 5 – 90 psi (0.34 – 6.2 bar)
• Connection Size: ¾″ BSP
• Housing Material: Acetal
• Dosing Accuracy: ±5% of ratio
• Repeatability: ±3% of ratio
• Maximum Fluid Temperature: 38°C
• Minimum Fluid Temperature: 1°C
• Maximum Vertical Suction Lift: 3.6 m

APPLICATIONS

• Livestock water medication systems
• Poultry and pig farming dosing systems
• Vaccination delivery through drinking water
• Agricultural nutrient dosing
• Water line cleaning and sanitation
• General agricultural water treatment
