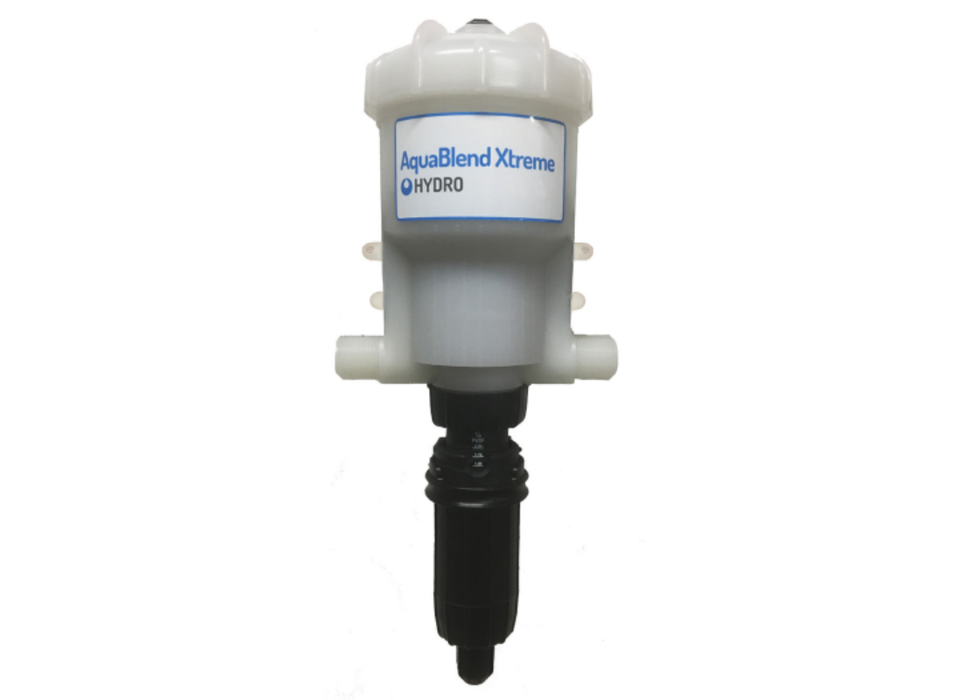

Hydro Systems AquaBlend Xtreme PVDF Proportional Dosing Pump for Agricultural Medication (Max 2.5 m³/hr)

The Hydro Systems AquaBlend Xtreme proportional dosing pump is a high-performance water-driven chemical injector engineered for demanding agricultural water treatment and livestock medication applications. Designed to deliver precise proportional dosing, the AquaBlend Xtreme injects liquid chemicals or wettable powders directly into flowing water without requiring electricity.

Built with a PVDF housing and chemically resistant internal materials, the AquaBlend Xtreme is specifically developed to withstand aggressive water treatment chemicals commonly used in livestock systems. This makes it ideal for dosing disinfectants, organic acids, chlorine, peroxides and other water line cleaning products while maintaining accurate and reliable injection performance.

Operating proportionally with water flow, the AquaBlend Xtreme ensures consistent dosing regardless of fluctuations in water pressure or system demand. With a maximum flow capacity of 2.5 m³/hr, the system provides dependable chemical injection for poultry farms, pig farms, livestock watering systems and agricultural water treatment applications.

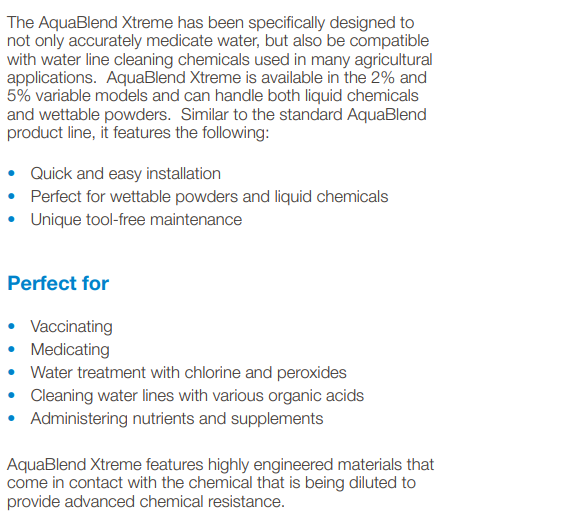

FEATURES

• Water-driven proportional dosing – no electricity required
• PVDF construction for superior chemical resistance
• Suitable for aggressive agricultural chemicals including acids and disinfectants
• Adjustable dosing ratios for flexible chemical application
• Handles liquid chemicals and wettable powders
• Consistent dosing regardless of pressure or flow fluctuations
• Tool-free maintenance design for quick servicing
• Simple installation in in-line or by-pass systems

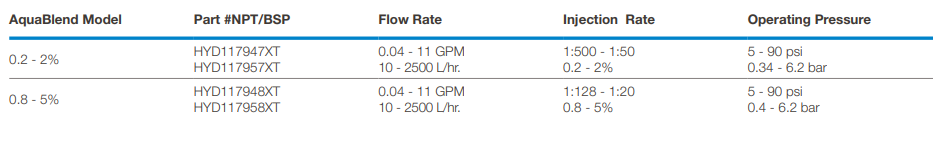

SPECIFICATIONS

• Maximum Flow Rate: 10 – 2500 L/hr (2.5 m³/hr)
• Operating Pressure: 5 – 90 psi (0.34 – 6.2 bar)
• Connection Size: ¾″ BSP
• Housing Material: PVDF
• Dosing Accuracy: ±5% of ratio
• Repeatability: ±3% of ratio
• Maximum Fluid Temperature: 38°C
• Minimum Fluid Temperature: 1°C
• Maximum Vertical Suction Lift: 3.6 m
• Seal Material: Proprietary engineered elastomer

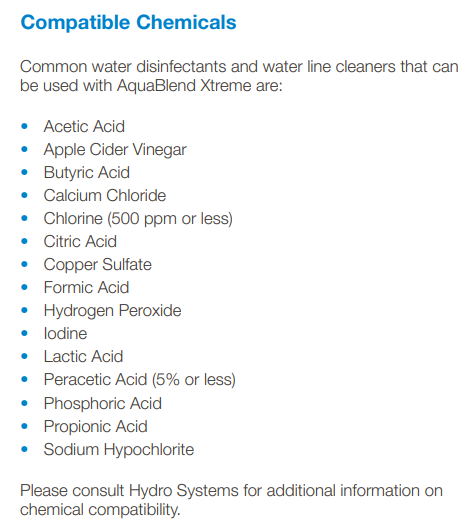

APPLICATIONS

• Chlorine and sodium hypochlorite
• Hydrogen peroxide
• Peracetic acid
• Phosphoric acid
• Organic acids such as acetic, citric and formic acid
• Copper sulfate
• Calcium chloride
• Livestock water disinfectants and supplements
