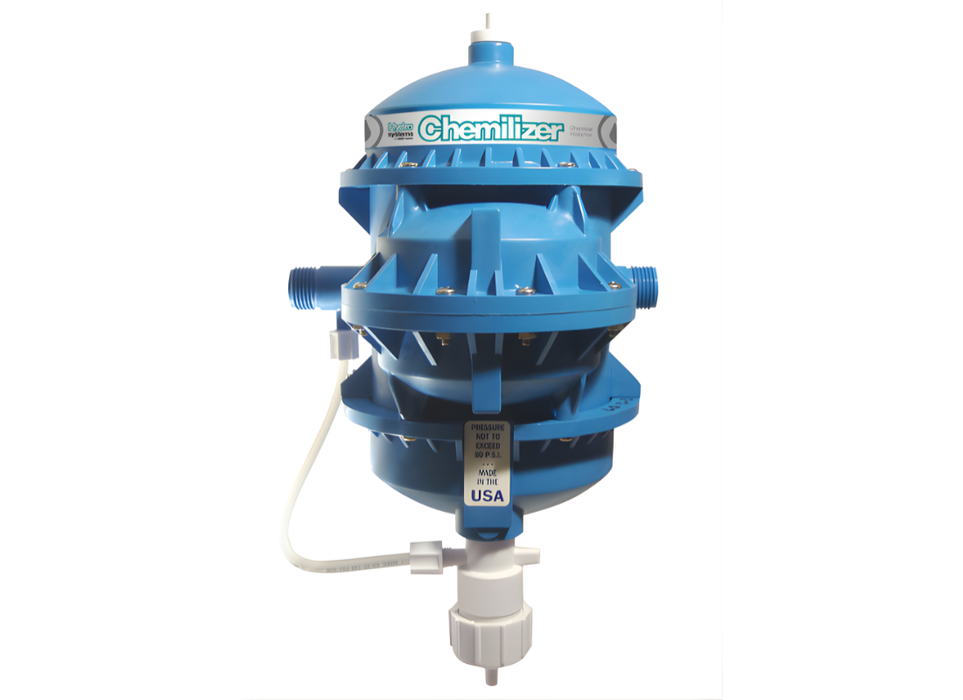

Hydro Systems Chemilizer Proportional Chemical Dosing Pump for Livestock & Agricultural Water Systems (Max 2.5 m³/hr)

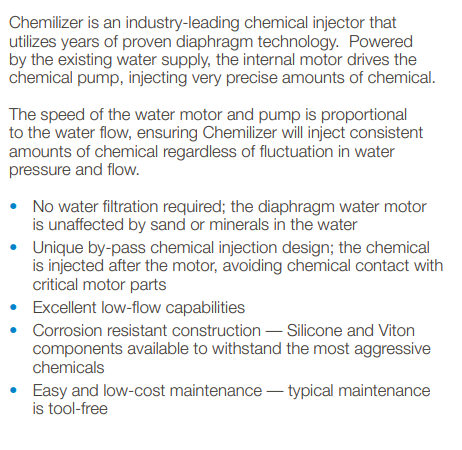

The Hydro Systems Chemilizer proportional chemical dosing pump is a reliable water-driven injector designed for accurate chemical dosing in livestock and agricultural water systems. Powered directly by the water supply, the Chemilizer uses proven diaphragm motor technology to inject precise amounts of chemical into flowing water without the need for electricity. This proportional dosing ensures consistent treatment levels even when water pressure or flow rates fluctuate.

Engineered for durability and long-term performance, the Chemilizer features a corrosion-resistant construction with chemically resistant components available in silicone and Viton for compatibility with a wide range of agricultural chemicals. The injector’s unique by-pass chemical injection design ensures that chemicals are injected after the water motor, preventing contact with critical internal components and improving reliability in demanding environments.

Designed with agricultural operations in mind, the Chemilizer offers excellent performance at both low and high flow rates, making it ideal for livestock watering systems, poultry farms, pig farms and general agricultural water treatment applications. With a maximum flow capacity of 2.5 m³/hr, the system provides dependable and consistent chemical dosing for medication, sanitation and nutrient delivery.

FEATURES

• Water-driven proportional dosing – no electricity required
• Proven diaphragm motor technology for reliable chemical injection
• Consistent dosing regardless of pressure or flow fluctuations
• Unique by-pass chemical injection design protecting motor components
• Corrosion resistant construction for harsh agricultural environments
• Compatible with aggressive chemicals using silicone or Viton components
• Excellent low-flow performance for livestock watering systems
• Simple installation and tool-free maintenance

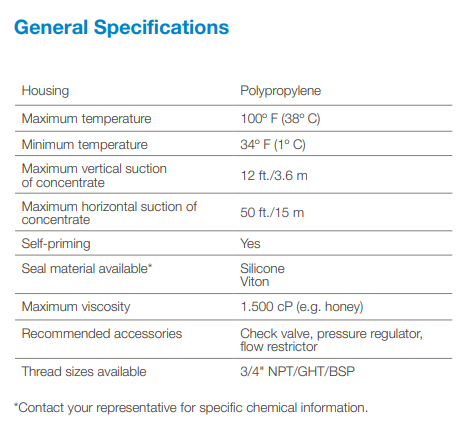

SPECIFICATIONS

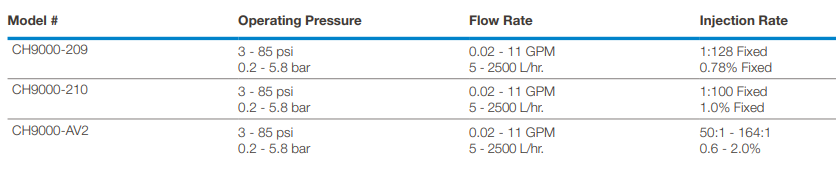

• Maximum Flow Rate: 5 – 2500 L/hr (2.5 m³/hr)
• Operating Pressure: 3 – 85 psi (0.2 – 5.8 bar)
• Connection Size: ¾″ NPT / GHT / BSP options available
• Housing Material: Polypropylene
• Maximum Fluid Temperature: 38°C
• Minimum Fluid Temperature: 1°C
• Maximum Vertical Suction Lift: 3.6 m
• Maximum Horizontal Suction Lift: 15 m
• Self-Priming: Yes
• Maximum Chemical Viscosity: 1,500 cP (e.g. honey)

APPLICATIONS

• Livestock water medication systems
• Poultry and pig farm dosing systems
• Agricultural water treatment
• Nutrient and supplement injection
• Water line cleaning and sanitation
• Disinfection dosing systems
