Puretec X3 Series Inline Undersink Water Filter System with High Loop Designer Faucet (2LPM)

Slimline 1-Micron Filtration for Clean, Fresh Drinking Water from a Stylish Dedicated Tap

The Puretec X3 is a compact, inline undersink water filtration system designed for kitchens requiring clean, fresh, better-tasting drinking water delivered through a premium high-loop designer faucet. Engineered for mains and town water supplies, the X3 integrates a slim vertical cartridge (IL149Q) with advanced carbon filtration to reduce chlorine, sediment, bad taste, odours and heavy metals — without removing essential minerals or fluoride.

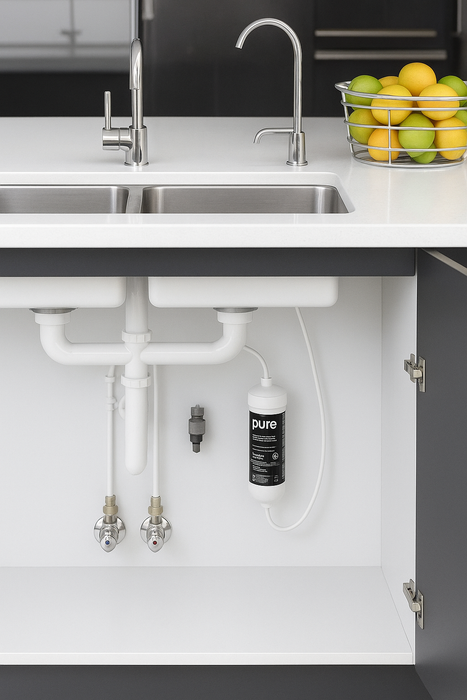

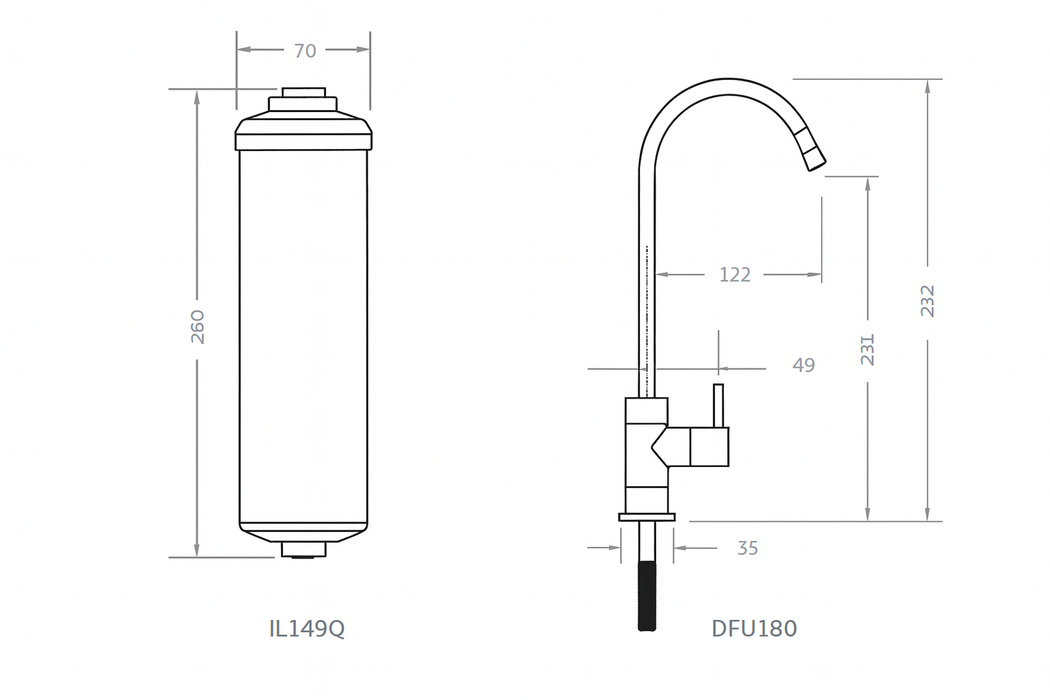

With its ultra-compact form factor (350 × 120 mm vertical clearance), the X3 fits neatly inside tight under-sink spaces while maintaining an elegant benchtop appearance via the DFU180 high-loop faucet, shown in the diagram on page 1. The system includes a PVM45PH multifunction control valve, which provides pressure reduction and installation safety, along with a SmartTee™ adaptor for seamless integration with your existing plumbing.

Easy to install and easy to maintain, the X3 requires only a 12.5 mm tap hole and includes all plumbing fittings for immediate setup. With Puretec’s industry-leading 10-year warranty, the X3 is a durable, economical way to upgrade your kitchen with reliable filtered water.

FEATURES

• Slimline inline design easily fits under any kitchen bench
• Reduces chlorine, sediment, chemical taste, odours & heavy metals
• Retains essential minerals and fluoride
• Includes premium high-loop designer faucet (DFU180)
• Multifunction control valve (PVM45PH) for pressure reduction and safety
• Suitable for mains & town water
• Vertical or horizontal mounting options
• Quick, simple cartridge replacement
• All plumbing fittings included — no extras required
• 10-year Puretec warranty (1 year parts & labour + 9 years parts only)

SPECIFICATIONS

• Model: X3
• Replacement Cartridge: IL149Q
• Micron Rating: 1 micron nominal
• Flow Rate: 1.9 L/min
• Temperature Range: 0–38°C
• Pressure Range: 100–500 kPa
• Connection Type: ¼" Quick Connect
• Cartridge Size: 10¼"
• Compliance: AS 3497 – WM 74617
• Mounting Requirements:
  • Vertical install space: 350 mm (H) × 120 mm (W)
  • Horizontal install space: 120 mm (H) × 350 mm (W)
• Tap Hole Size: 12.5 mm

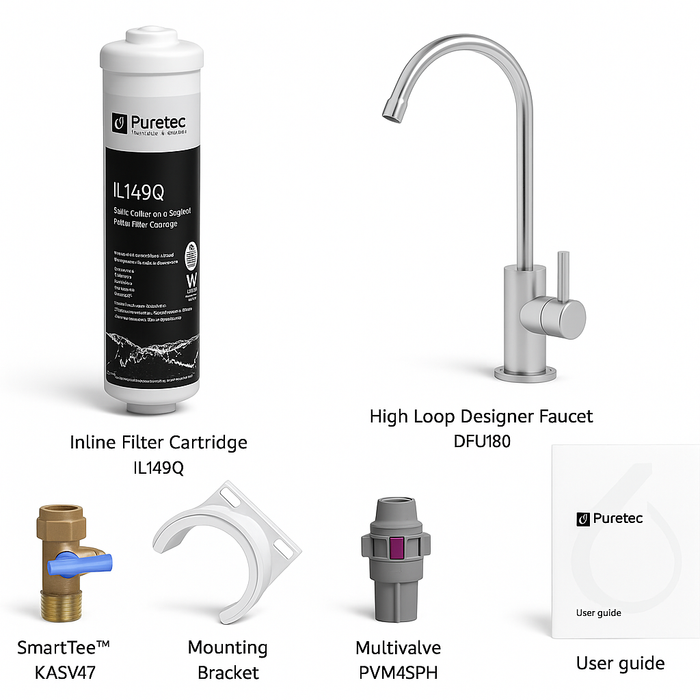

INCLUSIONS

• Inline filter cartridge (IL149Q)

• High-loop designer faucet (DFU180)

• SmartTee™ adaptor (KASV47)

• Multifunction valve (PVM45PH)

• Mounting bracket

• User guide

• All required installation fittings
