Advanced 1-Micron Inline Filtration for Mains, Rain, Harsh & Rural Water

The Puretec X4 is a premium inline undersink water filtration system designed to provide clean, fresh, great-tasting drinking water from a dedicated high-loop designer faucet. Unlike basic carbon filters, the X4 uses advanced multi-stage filtration technology to reduce chlorine, sediment, bad taste, odours and heavy metals while retaining essential minerals and fluoride — delivering water that is both healthier and better tasting.

With its slimline 10" inline cartridge (IL150Q), the X4 fits easily under modern kitchen benches and can be mounted either vertically or horizontally. According to the specification notes, the X4 system is suitable for mains, rainwater, harsh and rural water supplies, making it one of the most versatile undersink filters in the Puretec lineup.

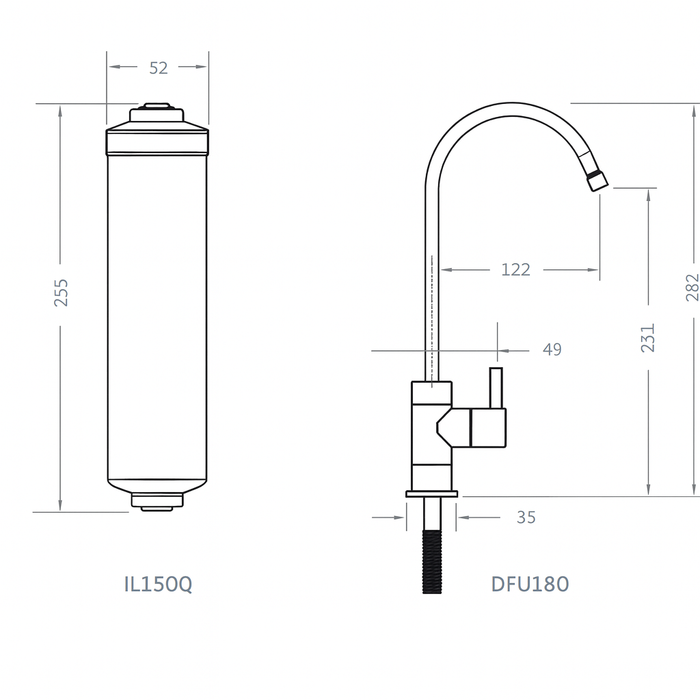

Installation is fast and straightforward thanks to the included PVM45PH multivalve, SmartTee™ adaptor, and full plumbing kit. The designer DFU180 faucet shown on the diagram delivers purified water with a modern aesthetic and minimal bench clutter. Backed by Puretec’s 10-year warranty, the X4 is built for long-term reliability.

FEATURES

• Inline slimline 10" filtration system for compact under-sink installation
• Reduces chlorine, sediment, taste, odours & heavy metals
• Retains essential minerals and fluoride
• Suitable for mains, rain, harsh & rural water supplies
• Includes premium high loop designer faucet (DFU180)
• Multifunction PVM45PH multivalve for pressure reduction and installation safety
• Easy vertical or horizontal mounting
• Full plumbing installation kit — no additional fittings required
• 10-year Puretec warranty (1 year parts & labour + 9 years parts only)

SPECIFICATIONS

• Model: X4
• Cartridge: IL150Q
• Micron Rating: 1 micron nominal
• Flow Rate: 1.9 L/min
• Temperature Range: 0–38°C
• Pressure Range: 100–500 kPa
• Connection: ¼" Quick Connect
• Cartridge Size: 10"
• Compliance: AS 3497 – WM 74617
  • Mounting Space Requirements:
  • Vertical: 350 mm (H) × 120 mm (W)
• Horizontal: 120 mm (H) × 350 mm (W)
• Tap Hole Size: 12.5 mm

APPLICATIONS

• Kitchen drinking water (mains or alternative water supplies)
• Chlorine & heavy metal reduction
• Homes using rural, tank or harsh water that needs clarity improvement
• Drinking water for cooking, beverages & daily hydration

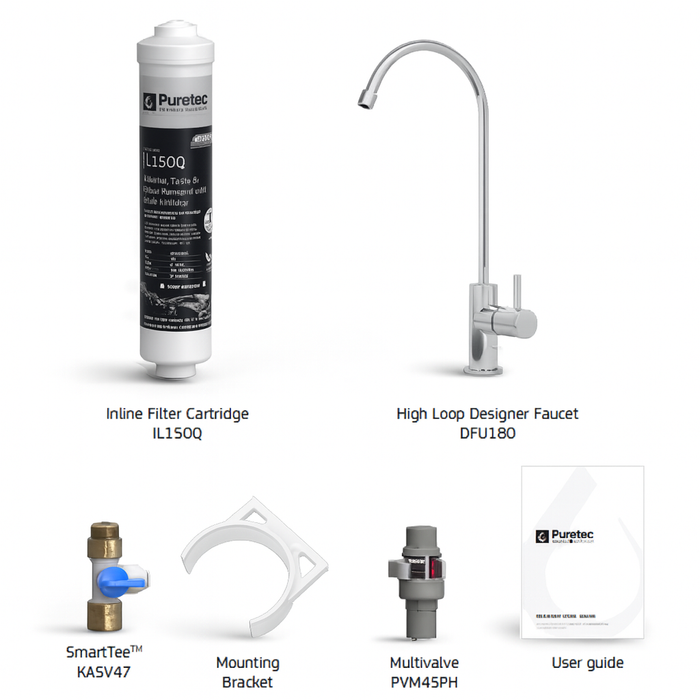

INCLUSIONS

• IL150Q Inline Filter Cartridge

• DFU180 High Loop Designer Faucet

• SmartTee™ Adaptor (KASV47)

• Mounting Bracket

• PVM45PH Multivalve

• User Guide

• Full plumbing installation kit (no extras required)
