Multi Level Float Trees - 3 Floats (for submersible pump application)

The Matelec Multi-Level 3-Float Tree is a preassembled, tangle-resistant float switch solution designed to simplify pump control in wastewater and sewage applications. Engineered for fast and accurate level sensing, it eliminates the hassles of traditional float installations—no more tangled cords, conduit work, or guesswork tracing individual wires.

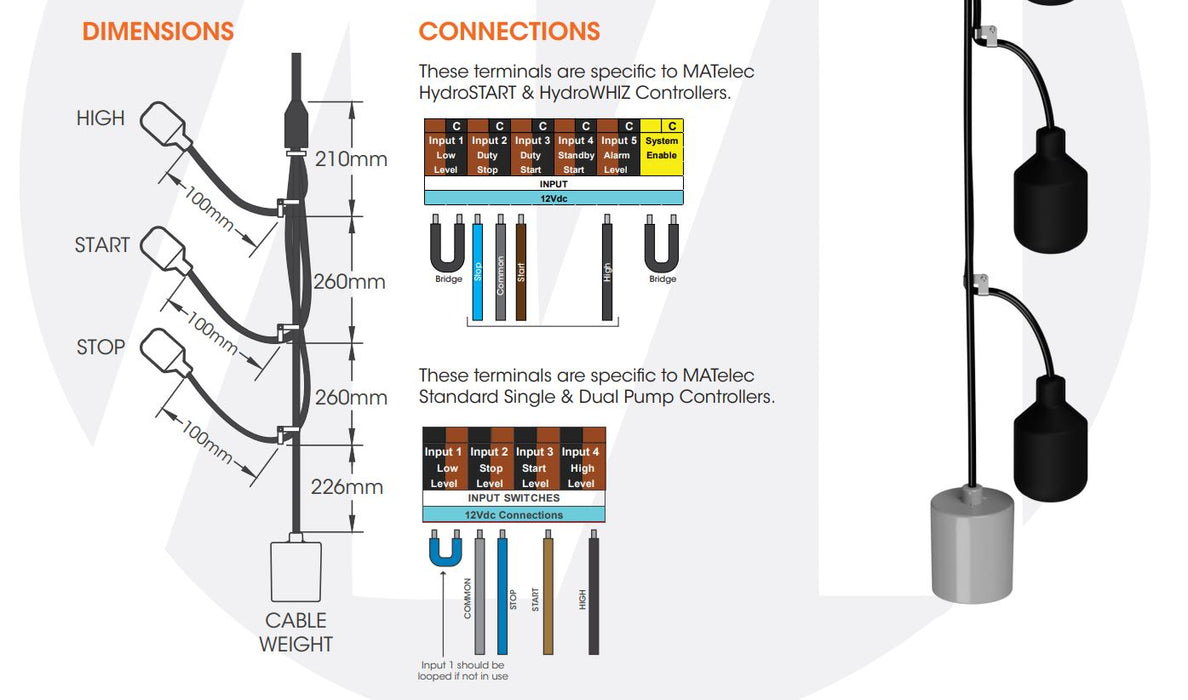

This fully submersible, resin-filled system features three mechanically activated floats mounted on a weighted tree with a horizontal pivot point for enhanced switching precision and stability, even in turbulent conditions. Each float operates independently, providing high, low, and stop/start control for pumps—ideal for sewage pump stations, stormwater pits, greywater systems, and other multi-point level monitoring applications.

With plug-and-play simplicity and robust construction, the Matelec Float Tree is a superior alternative to conduit-mounted float setups.

FEATURES

• Preassembled 3-Float System – Saves setup time and eliminates wiring confusion
• Weighted Tangle-Free Design – Prevents float entanglement and drift in high-flow conditions
• Horizontal Pivot Points – Improves switching accuracy and consistency
• Fully Submersible (IP68) – Resin-filled for long life in harsh liquid environments
• Mechanically Activated Contacts – Snap-action, normally open (NO) switches close on rise
• No Conduit Required – Designed for quick deployment with no float wire routing

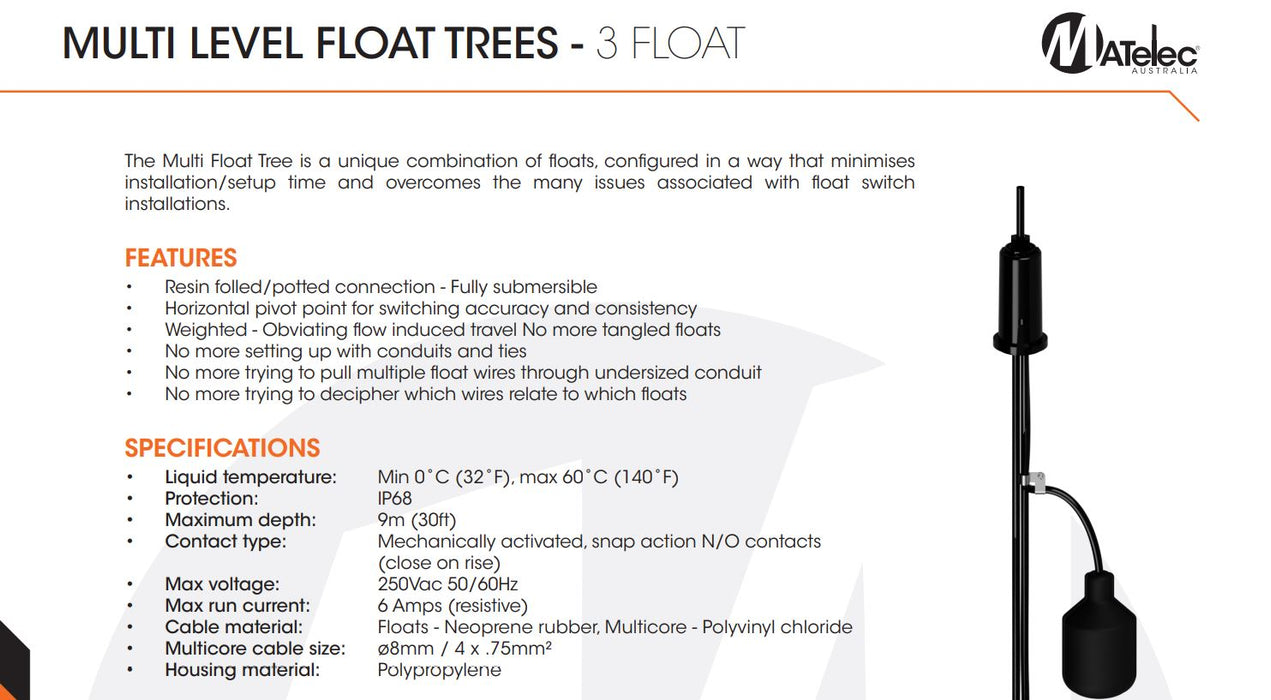

SPECIFICATIONS

• Max Voltage: 250 VAC (50/60 Hz)
• Max Current: 6 A resistive
• Contact Type: Snap-action NO (closes on rise)
• Protection Rating: IP68
• Max Depth: 9 m
• Temperature Range: 0–60 °C
• Float Housing: Polypropylene
• Cable: Neoprene float cables, PVC multicore (8 mm Ø, 4 × 0.75 mm²)
