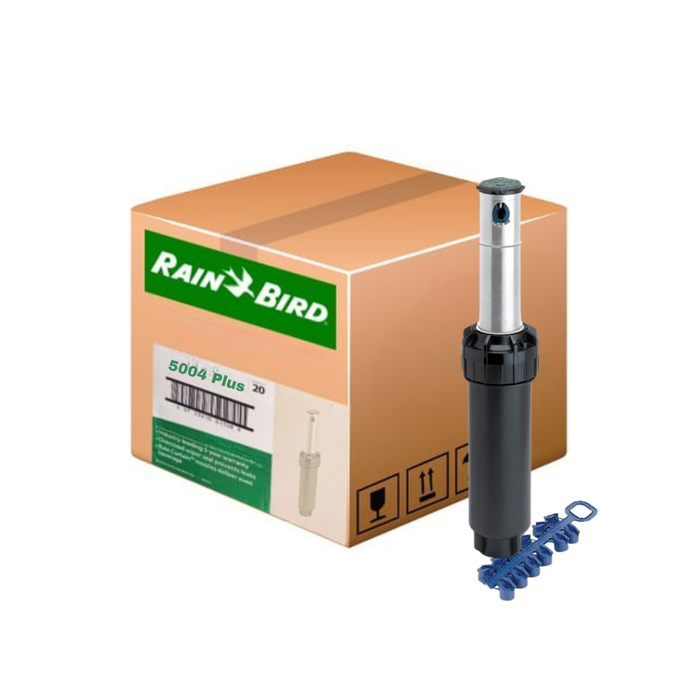

Rain Bird 5004 PLUS 100mm Adjustable Gear Drive Sprinklers with Flow Stop Capability (10-15m / 20mm BSP) Box of 20

The Rain Bird 5004 PLUS Rotor is one of the most trusted irrigation heads in the world — now available in a bulk box of 20 for efficient large-scale installations. Covering distances from 7.6 to 15.2 metres, the 5004 PLUS delivers professional-grade results for residential, commercial, and municipal applications. Featuring Rain Curtain™ nozzle technology, it provides exceptional water uniformity, larger wind-resistant droplets, and gentle close-in watering that keeps turf lush and healthy while conserving water.

Built for professionals, the 5004 PLUS incorporates Rain Bird’s exclusive flow shut-off “Green Top” feature, allowing you to stop water flow at individual heads for quick servicing, nozzle changes, or system testing — no need to return to the controller. Its self-flushing arc adjustment port prevents debris buildup, while the oversized wiper seal protects against leaks and ensures reliable retraction. The result is a robust and easy-to-maintain sprinkler that performs consistently under the toughest conditions.

Ideal for irrigation contractors, landscapers, and councils managing large turf areas, this box of 20 sprinklers offers cost-effective coverage and reduced installation time. Whether used in residential developments, sports facilities, or public parks, Rain Bird’s 5004 PLUS Series guarantees precise, even watering and long-term reliability — all backed by a five-year trade warranty.

FEATURES

• Bulk pack: 20 units per box for large-scale installations.
• Flow shut-off “Green Top” for individual rotor control.
• Rain Curtain™ nozzles ensure uniform distribution and wind resistance.
• Oversized wiper seal prevents leaks and protects internals.
• Self-flushing arc adjustment port resists clogging.
• Full- and part-circle adjustment (40°–360°).
• Proven durability tested in millions of installations.
• Backed by a five-year trade warranty.

SPECIFICATIONS

• Precipitation rate: 5 to 38 mm/h (0.20 to 1.50 in/hr)
• Radius: 7.6 to 15.2 m (25 to 50 feet)
• Radius may be reduced up to 25% with radius reduction screw
• Pressure: 1.7 to 4.5 bar (25 to 65 psi)
• Flow Rate: 3.0 to 36.6 l/m (0.76 to 9.63 gpm; 0.17 to 2.19 m3/h)
• Reversing full- and part-circle adjustment from 40° - 360°
• Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
• Optional Features
• Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
• PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
• SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
• Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6" models)

APPLICATIONS

• Residential housing estates – ideal for consistent coverage across new developments.
• Commercial landscapes – schools, resorts, shopping centres, and office complexes.
• Sports grounds & recreation fields – even, controlled watering for superior turf quality.
• Council & municipal installations – parks, greenbelts, and roadside verges.
• Bulk contractor projects – cost-effective irrigation system builds and replacements.

DIMENSIONS

• Pop-up height: Shrub; 10,2 cm (4")
• Overall body height: Shrub: 19,7cm (7 3/4")
• Exposed surface diameter: 4,1 cm (1 5/8")
