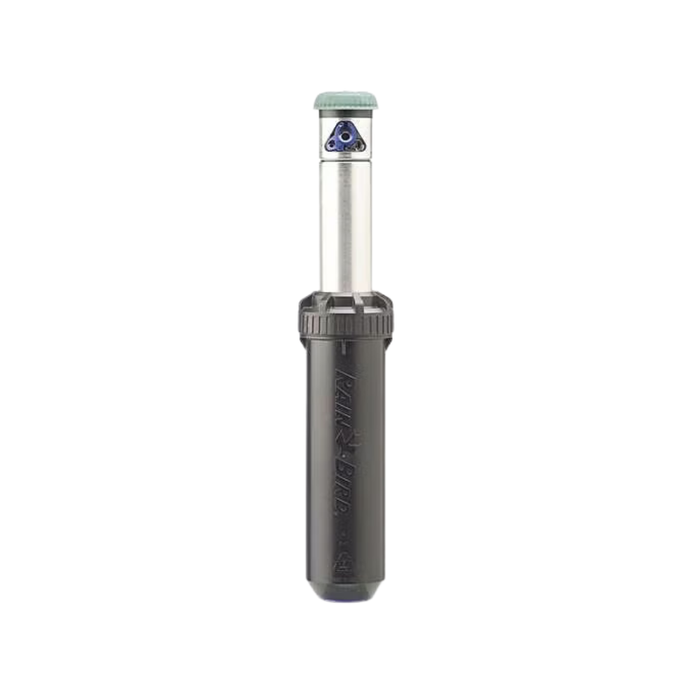

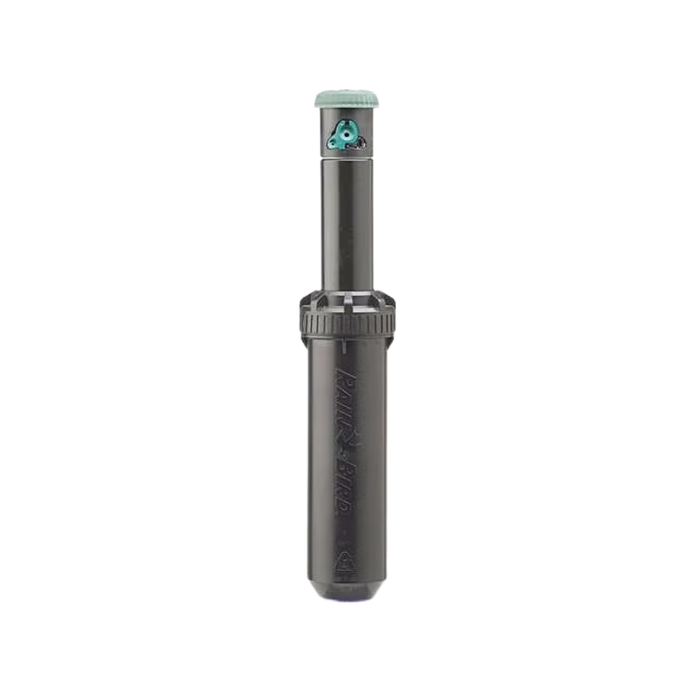

Rain Bird 8005 125mm Adjustable Gear Drive Sprinklers (12-24m / 25mm BSP)

Rain Bird 8005 125mm Adjustable Gear Drive Sprinklers (12-24m / 25mm BSP)

by Rain Bird
PN: B81200
$142.65 - $1,839.87
$142.65
$142.65 - $1,839.87
$142.65

Rain Bird 8005 125mm Adjustable Gear Drive Sprinklers (25mm BSP)

DOWNLOAD PRODUCT BROCHURE DOWNLOAD SPECIFICATION SHEET

The Rain Bird® 8005 Rotor is engineered with durability in mind to withstand the rigors of commercial rotor applications, including harsh conditions and potential vandalism. Rigorously designed and tested to meet the high reliability standards of today's market, it offers unparalleled performance and longevity.

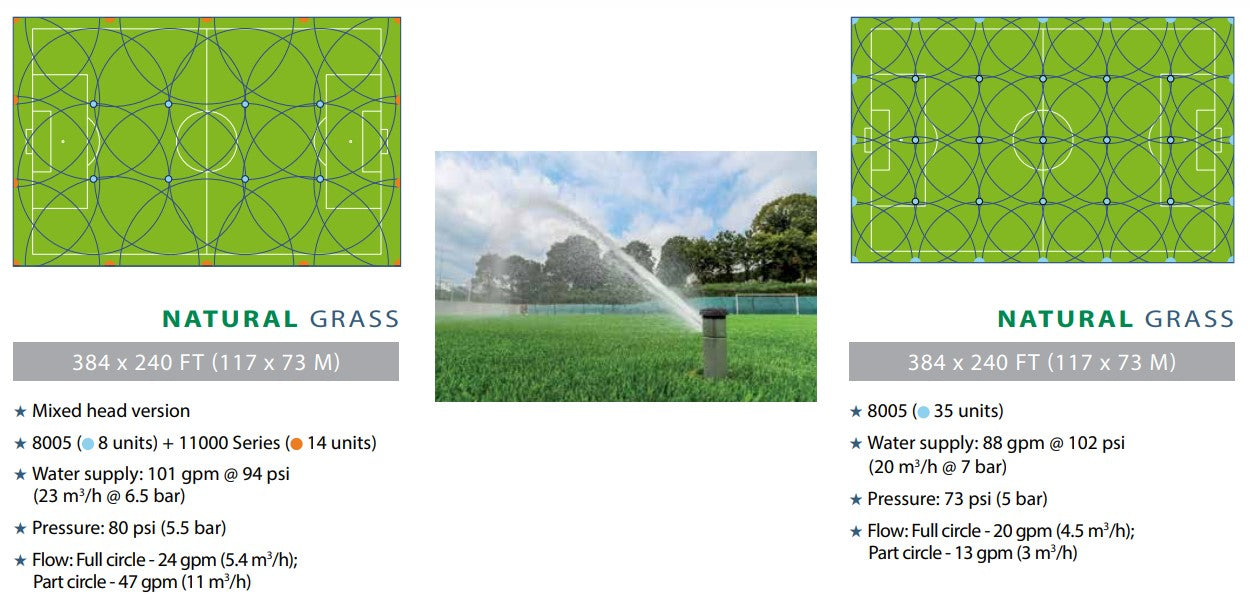

Featuring extensive customer-identified features, the Rain Bird® 8005 Rotor is incredibly versatile, catering to a wide range of applications. With an impressive radius of up to 25m meters, it is particularly well-suited for watering sports fields, parks, and other large turf areas. Whether it's for irrigating expansive sports complexes or maintaining vast green spaces, the Rain Bird® 8005 Rotor delivers unmatched performance and durability.

FEATURES

  • Vandal resistance, brass reinforced turret for increased side impact durability

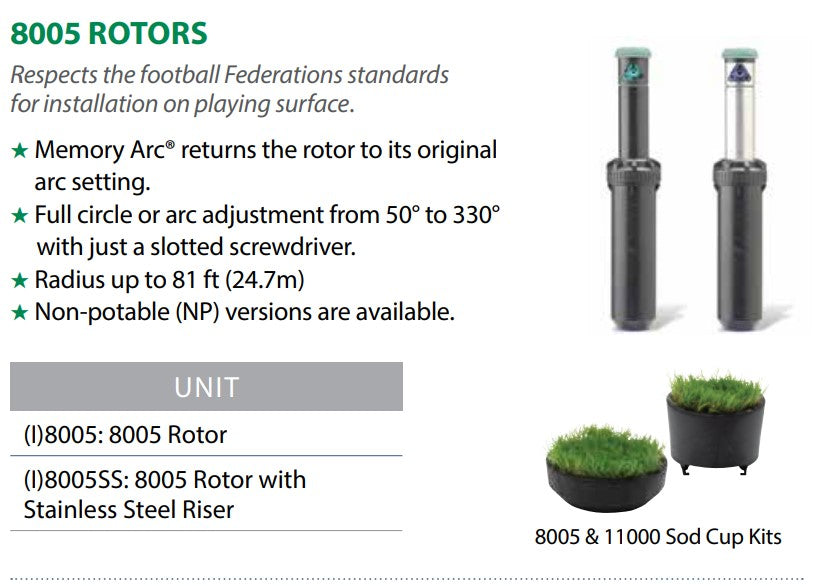

  • Memory Arc® returns the rotor to its original arc setting
  • Non-strippable drive mechanism prevents damage from vandals

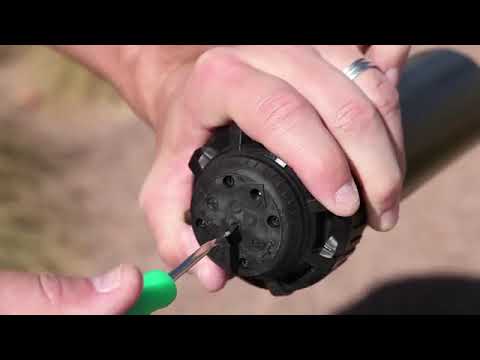

  • Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit
  • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
  • SAM Seal-A-Matic check valve
  • 3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering
  • 5 year warranty

SPECIFICATIONS

  • Radius: 39 to 81 feet (11.9 to 24.7 m)
  • Precipitation rate: 0.48 to 1.23 inches per hour (12 to 31 mm/h)
  • Pressure: 50 to 100 psi (3.5 to 6.9 bar)
  • Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)
  • 1" NPT or BSP female threaded inlet
  • SAM Seal-A-Matic™ check valve holds up to 10 feet (3.1 m) of elevation change
  • Nozzle outlet trajectory is 25º
  • Rain Curtain™ Nozzles: Included with rotor, other sizes available upon request; 10-grey, 12-beige, 14-light green, 16-dark brown, 18-dark blue

DIMENSIONS

  • Exposed diameter: 1 7/8" (4,8 cm)
  • Overall diameter: 3 1/8" (7,9 cm)
  • Overall height: 10 1/8" (25,7 cm)
  • Pop-up height: 5" (12,7 cm)
  • Note: Pop-up height is measured from cover to the primary nozzle port. Overall body height is measured popped down
