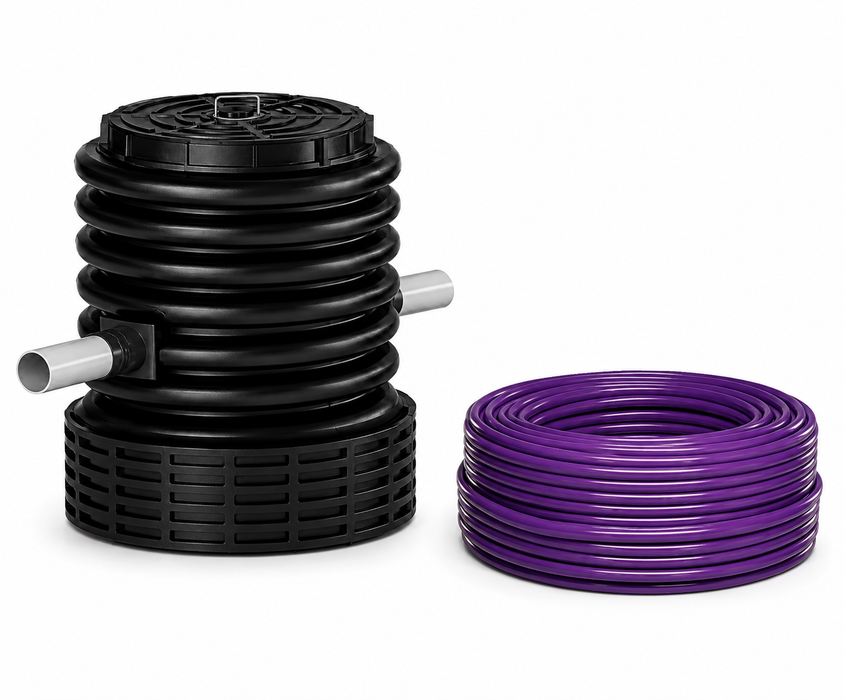

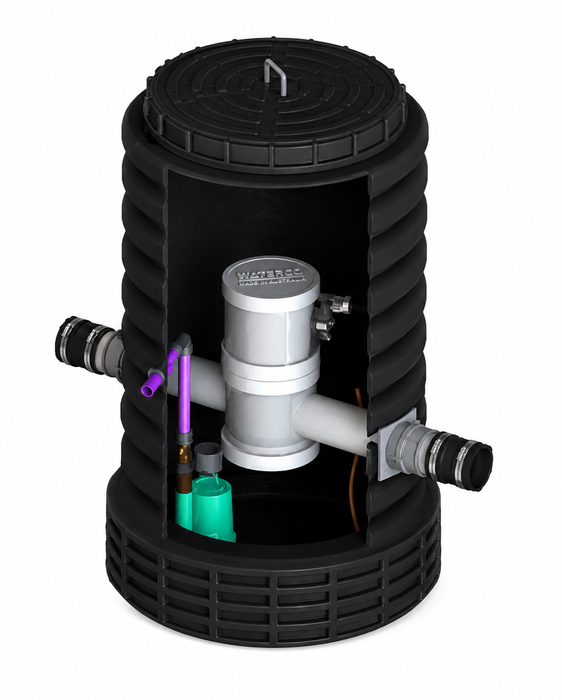

EZGREY GFPRO-A 100L Below Ground Grey Water Reuse System for Blocks More than 400sqm (100mm Inlet)

The EZGREY GFPRO-A 100L Below Ground Grey Water Reuse System is an advanced domestic grey water diversion solution designed for homes on blocks larger than 400sqm. Engineered for both new home installations and retrofit applications, this compact below-ground system captures and reuses grey water from showers, basins, washing machines, and air conditioning systems to reduce mains water consumption and improve garden irrigation efficiency. Featuring a robust underground polyethylene pit, automatic backflush filtration system, and low-maintenance operation, the GFPRO-A provides an environmentally responsible and cost-effective way to recycle household grey water for subsurface irrigation applications.

The system is designed with a 100mm inlet and outlet connection for high-flow residential applications and incorporates a self-cleaning filtration mechanism to minimise maintenance requirements. The underground installation keeps the system discreet while protecting components from weather exposure. With multiple pump configurations available, the EZGREY GFPRO-A range can be tailored to suit varying irrigation demands, property layouts, and discharge requirements. The Grey Flow Pro system is WaterMark approved and capable of helping households save up to 200,000 litres of water annually when used correctly.

FEATURES

• Suitable for residential blocks larger than 400sqm
• Designed for below-ground grey water reuse applications
• Automatic self-cleaning filtration system
• Plug-and-play installation design
• 100mm inlet and overflow connections
• Heavy-duty corrugated polyethylene underground pit
• Adjustable tank height for installation flexibility
• Low-maintenance operation with extended cleaning intervals
• WaterMark approved grey water reuse system
• Suitable for new homes and retrofit installations
• Reuses grey water from showers, basins, washing machines, and air conditioning systems
• Designed for subsurface irrigation applications
• Automatic backflush cleaning mechanism
• Manual isolation/shut-off functionality
• Helps reduce household water consumption and sewer discharge

PUMP CONFIGURATIONS

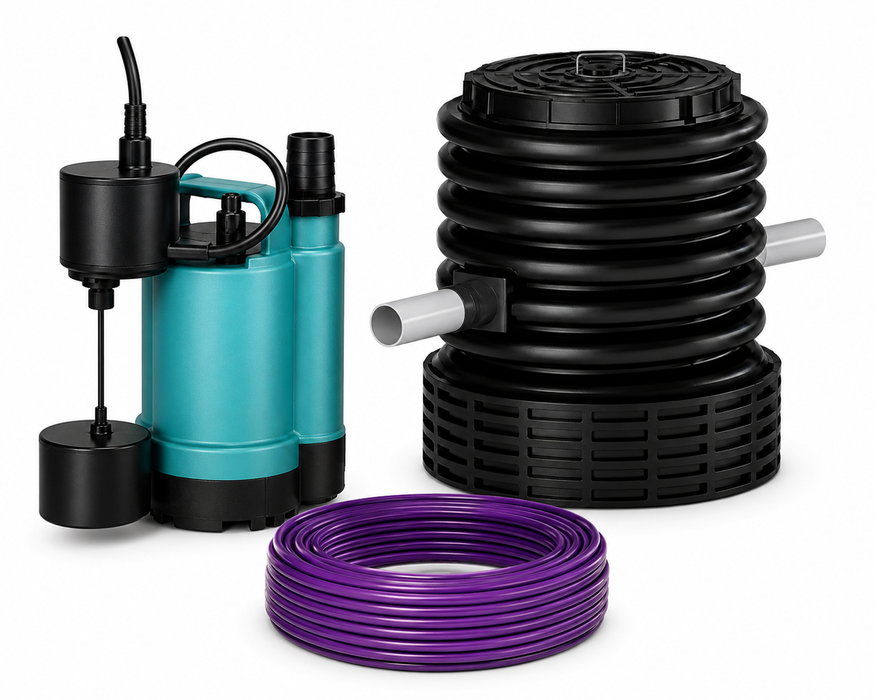

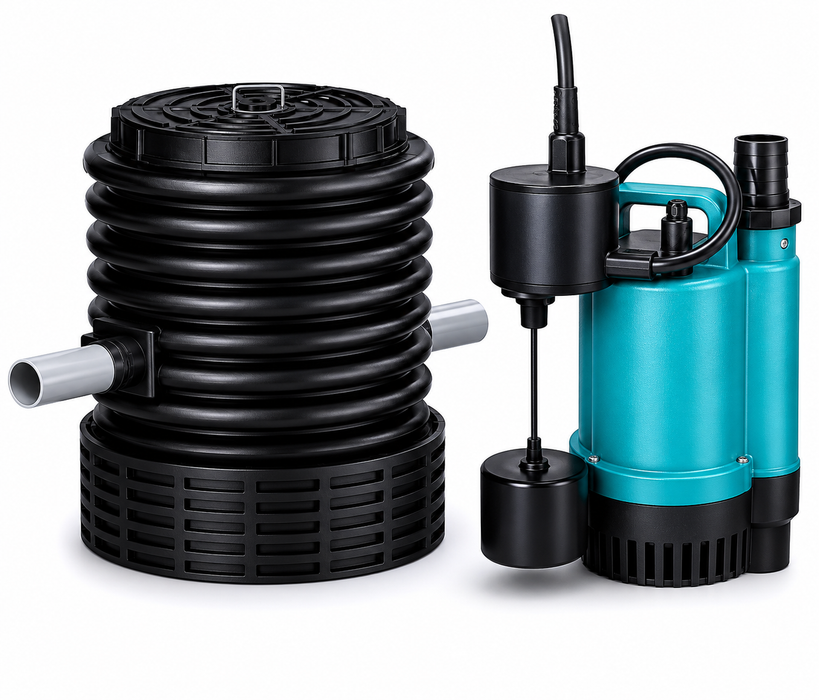

M1 Pump Option

• 100W submersible pump
• Maximum flow: 70LPM
• Maximum head: 6.5 metres

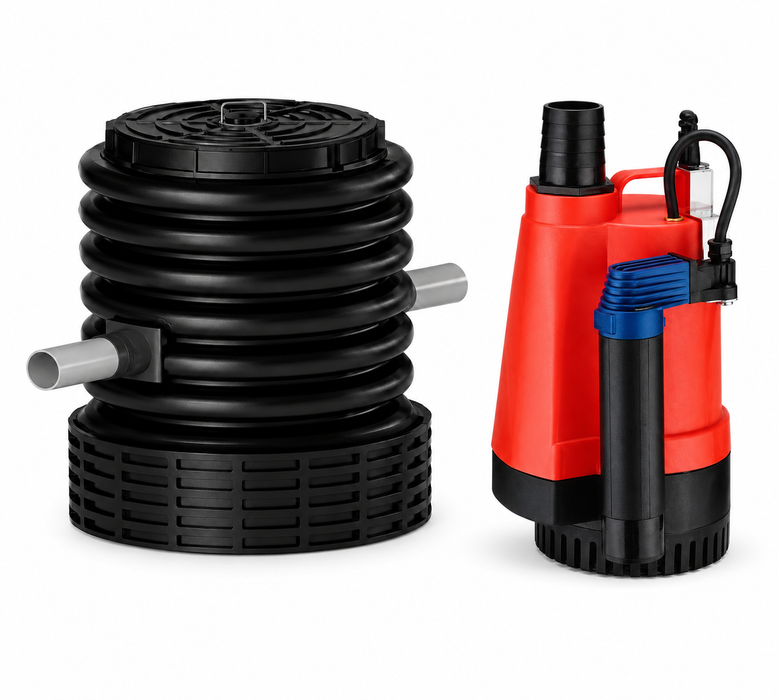

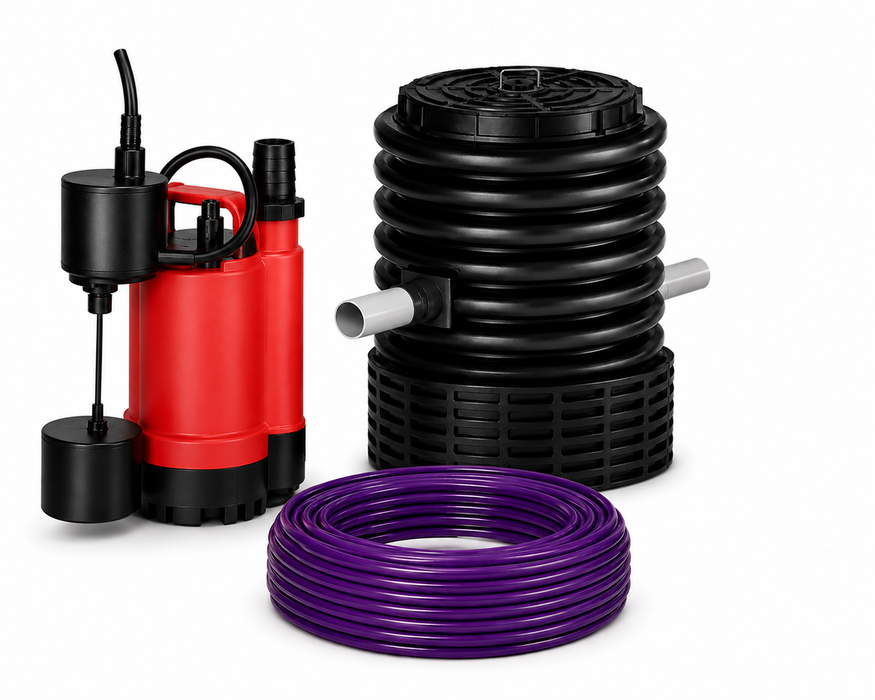

M3 Pump Option

• 300W submersible pump
• Maximum flow: 180LPM
• Maximum head: 8 metres

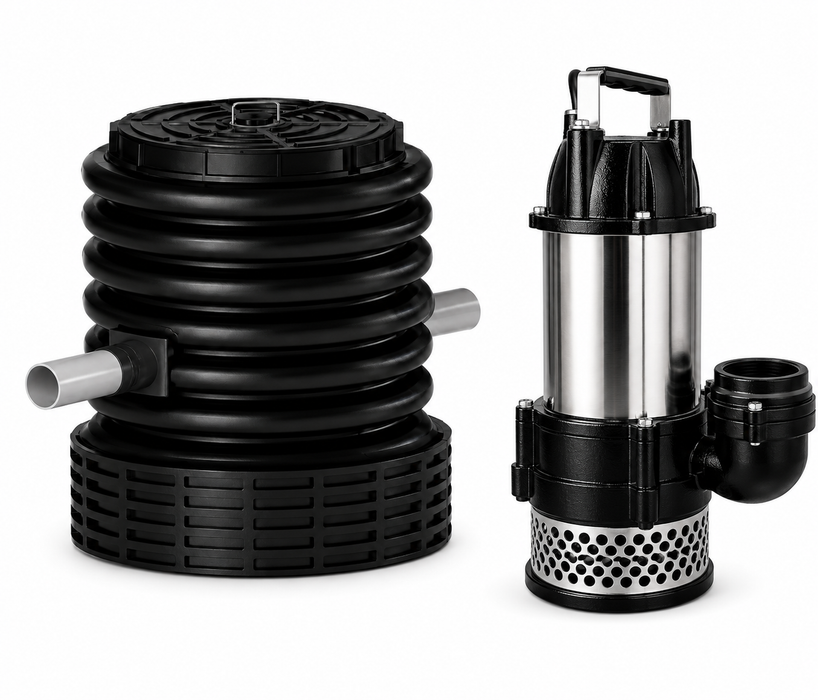

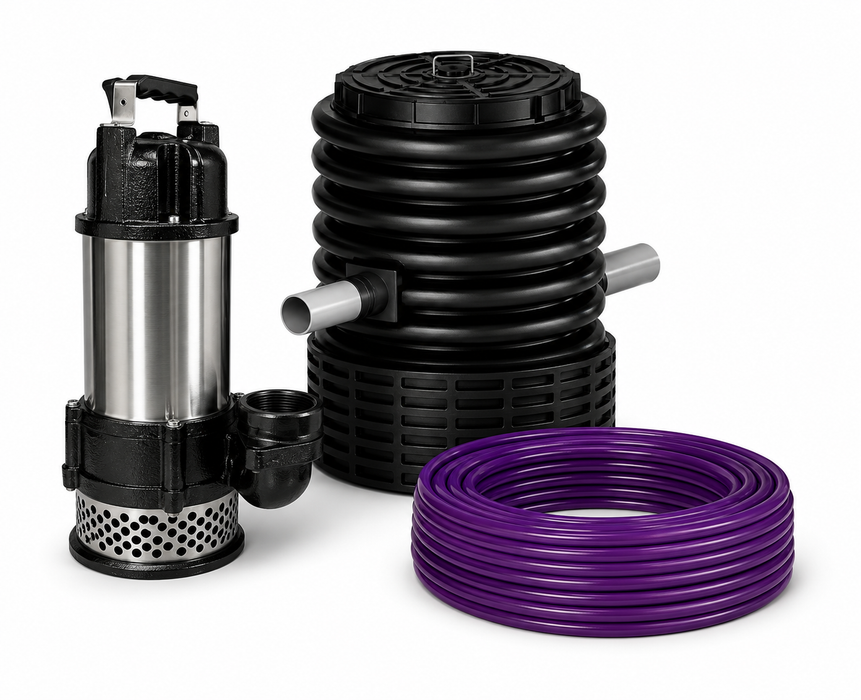

M4 Pump Option

• 400W submersible pump
• Maximum flow: 180LPM
• Maximum head: 21 metres

AVAILABLE MODELS

• EZGREY GFPRO-A 100L Below Ground Grey Water Reuse System for Blocks More than 400sqm (100mm Inlet)	GFPRO
  Grey FlowPRO system with 100W pump	GFPSPRO-GFPS-B-M1
  Grey FlowPRO system with 300W pump	GFPSPRO-GFPS-B-M3
  Grey FlowPRO system with 400W high-head pump	GFPSPRO-GFPS-B-M4
  Grey FlowPRO system with diversion lock kit	GFPRO-GFDL-CK
  M1 pump system with diversion lock kit	GFPRO-GFPS-B-M1-GFDL-CK
  M3 pump system with diversion lock kit	GFPRO-GFPS-B-M3-GFDL-CK
  M4 pump system with diversion lock kit	GFPRO-GFPS-B-M4-GFDL-CK

APPLICATIONS

• Residential grey water reuse systems
• Garden and landscape irrigation
• Sustainable water management systems
• New home water-saving installations
• Retrofit grey water diversion systems
• Large residential blocks over 400sqm
• Subsurface irrigation systems

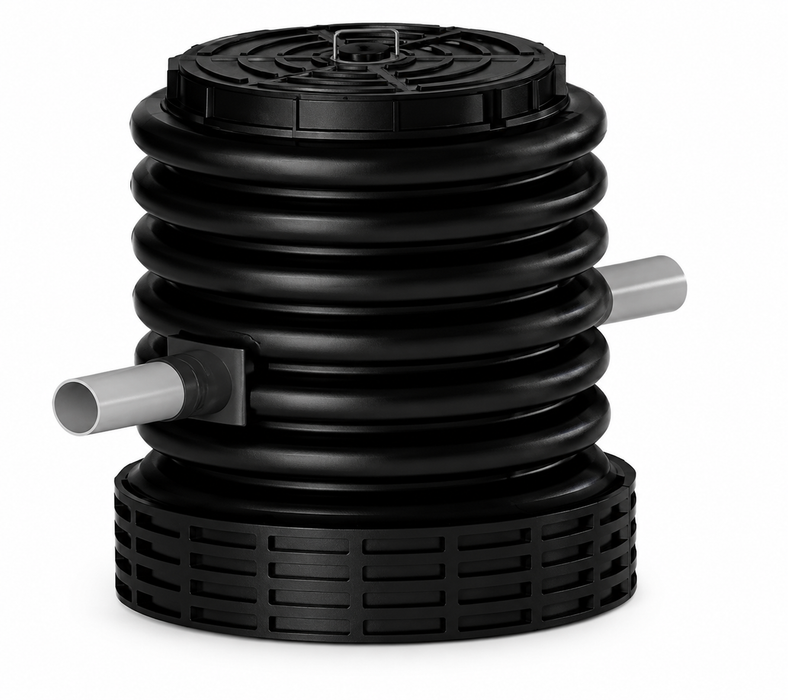

CONSTRUCTION

• Corrugated polyethylene underground pit
• Integrated filter chamber
• Self-cleaning filtration controller
• Rubber 100mm pipe joiners
• Submersible pump configurations available
• Underground sealed installation design
