Grundfos SQF 1.2-2N 3" Submersible Solar Helical Rotor Bore Pump for High Head/Low Flow Kit Complete with Panels (Max 25LPM/1200kPa)
Grundfos SQF1.2-2N 3" Submersible Solar Pump Kit Complete with Panels (25LPM/1200kPa)

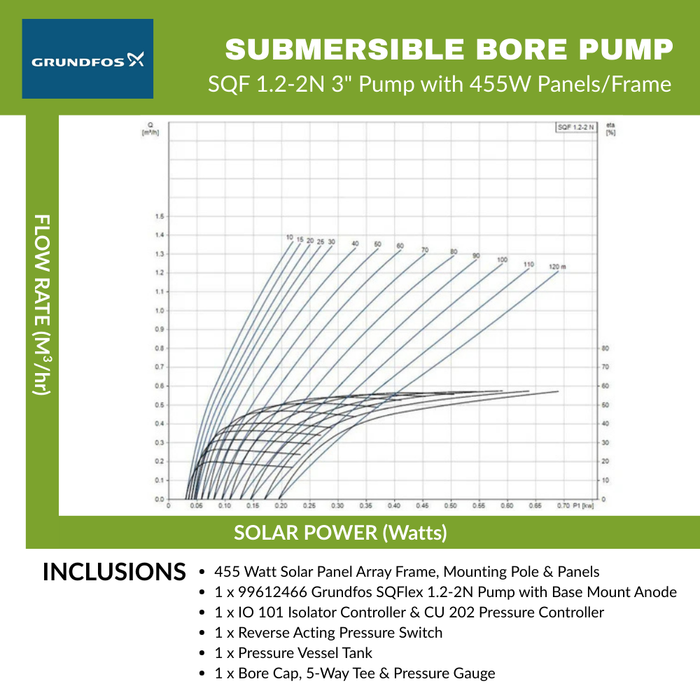

| DOWNLOAD PUMP SPECIFICATIONS |
The Grundfos SQFlex Solar Solutions Kit is a fully integrated, off-grid water pumping solution designed to deliver reliable and energy-efficient water supply wherever mains power is unavailable. Ideal for remote properties, agricultural sites, and livestock watering, this system includes the high-performance SQF 1.2-2N 3" centrifugal solar pump and all essential solar components for a true plug-and-play installation.
Powered entirely by solar energy, the SQFlex system is engineered to operate efficiently under varying sunlight conditions using built-in Maximum Power Point Tracking (MPPT), ensuring optimal pump performance throughout the day. With dry-run protection, voltage fluctuation protection, and overload safeguards, the system offers peace of mind and low maintenance operation even in the most remote environments.
Designed for flexibility and ease of use, the Grundfos SQF 1.2-2N kit includes everything you need to get up and running — from solar panels and array frames to control boxes, fittings, and pressure components. Whether you’re setting up a bore-fed tank system, irrigating a small crop area, or supplying water to troughs on a large grazing property, this package delivers consistent pressure, dependable daily flow rates, and industry-leading build quality backed by Grundfos support.

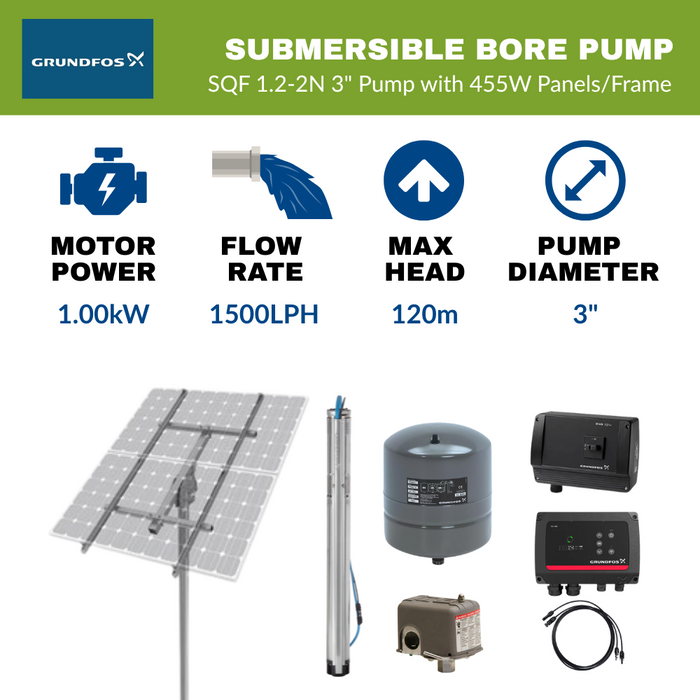

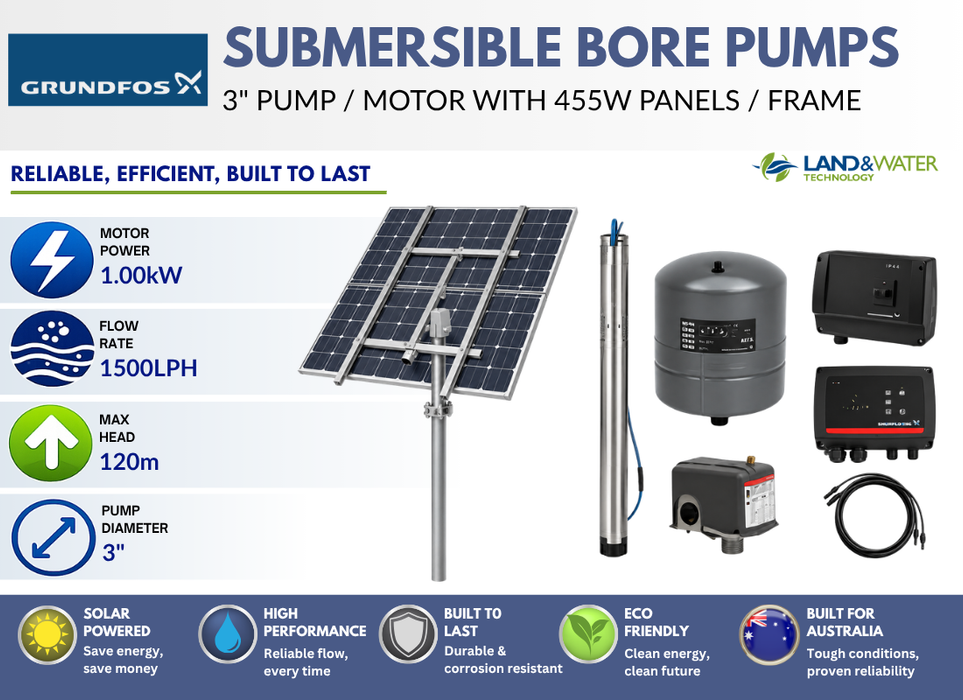

PACKAGED SYSTEM INCLUDES
- 99612466 SQF1.2-3N Flex pump with base mount anode
- 455W Solar Panels (premium-grade)
- Array mounting frame and mounting pole(s)
- Cable Gaurds
- Plug & Play Connections
- IO 101 (Isolators & Generator Interface)
-
CU 202 (Status & arrows for pressure switch/float switch connection)
- 5-Way tee
- Bore Cap with 5-way tee
- Reverse Acting Pressure Switch – for tank-level or irrigation control
- Pressure Gauge – mounted for easy monitoring
- 18 Litre pressure tank
- Earth Stake – for safe system grounding
- Free Shipping Australia-Wide
SPECIFICATIONS
- Max Flow: 25 LPM
- Max Head: 1200 kPa (120 m)
- Pump Type: Centrifugal
- Voltage Range: 30–300 V DC / 90–240 V AC
- Built-in Protections: Dry-run, overload, over/under voltage
- MPPT Algorithm: Yes – ensures optimal power extraction from solar
APPLICATIONS
- Off-grid remote properties
- Agricultural irrigation
- Livestock watering
- Bore water transfer to storage tanks
- Sustainable solar-only installations
WARRANTY
- 25-Year Solar Module Warranty
- 10-Year Solar Frame Warranty
- 2-Year Warranty on Pump and Remaining Components
- Free Shipping Australia-Wide
- Technical support and spare parts available locally
