Grundfos SQF 1.2-3N 3" Submersible Solar Helical Rotor Bore Pump for High Head/Low Flow Kit Complete with Panels (Max 23LPM/2500kPa)
Grundfos SQF 1.2-3N 3" Submersible Solar Pump Kit Complete with Panels (23LPM/2500kPa)
| DOWNLOAD PUMP SPECIFICATIONS |
The Grundfos SQF 1.2-3N Complete Solar Pump Kit is a high-head, low-flow off-grid water solution built for deep boreholes, high elevation tank fills, or pressurised water systems in remote areas. This system features the industry-leading SQF 1.2-3N submersible solar pump with a helical rotor (positive displacement) design, capable of reaching heads up to 250 metres while delivering consistent flows up to 23 LPM.
Designed for total off-grid independence, this package includes all components required for a professional-quality solar pumping installation — including premium solar panels, mounting frames, pressure control hardware, and smart Grundfos controllers. Built-in Maximum Power Point Tracking (MPPT) and wide voltage compatibility (30–300 V DC / 90–240 V AC) ensure the system maximises performance throughout the day, even during changing light conditions.
Whether you're pumping from a deep bore to a storage tank, providing reliable water to livestock, or running high-pressure delivery lines in remote terrain, the SQF 1.2-3N Solar Kit offers an ultra-efficient, plug-and-pump system designed to perform in Australia’s toughest environments.

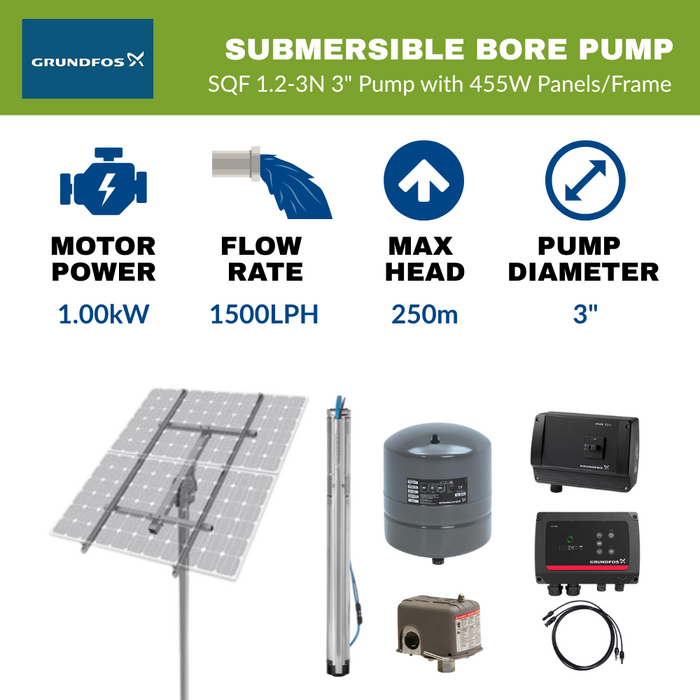

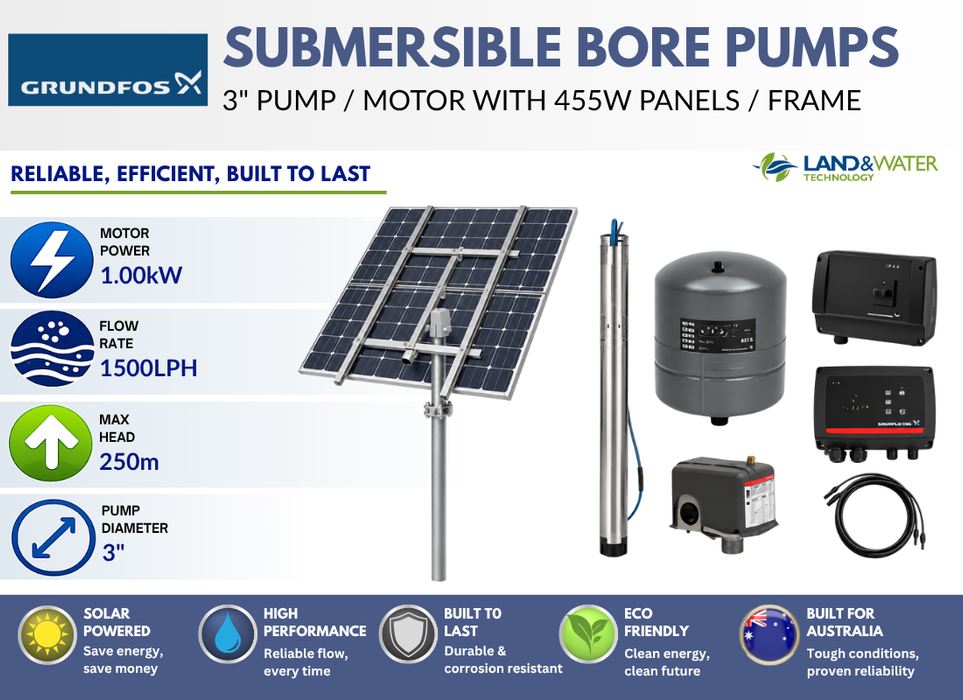

PACKAGE SYSTEM INCLUDES
- 99612470 SQ1.2-3N Flex pump with base mount anode
- Solar Panels - 455 Watts
- Stainless Steel Array Frame & Mounting Pole(s)
- Cable Guards
- Plug & Play Connections
- IO 101 (Isolators & Generator Interface)
- CU 202 (Status & arrows for pressure switch/float switch connection)
- Bore Cap with 5-Way Tee
- Reverse acting pressure switch
- Pressure gauge
- 18 Litre pressure tank
- Earth Stake
- Free Shipping Australia-Wide

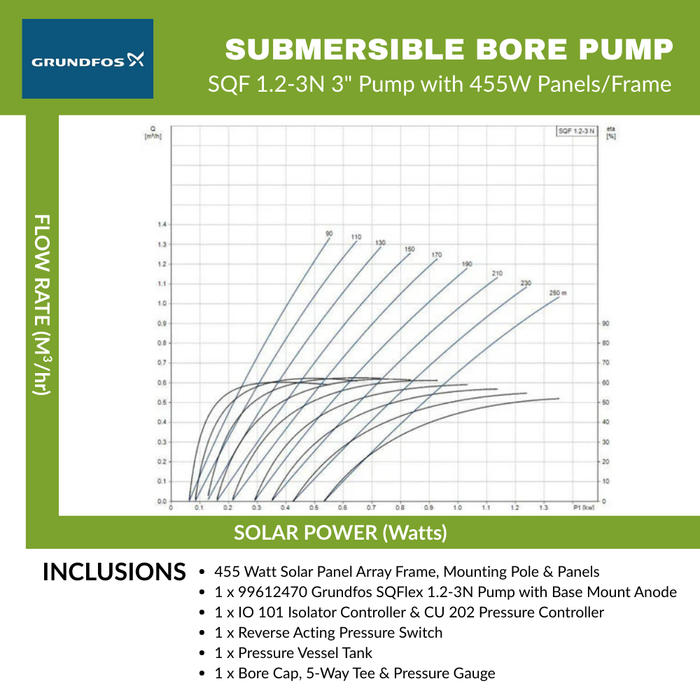

SPECIFICATIONS
- Max Flow: 23 LPM
- Max Head: 2500 kPa (250 m)
- Pump Type: Helical Rotor (Positive Displacement)
- Voltage Range: 30–300 V DC or 90–240 V AC
- Integrated MPPT for solar efficiency
- Built-in protections: Dry-run, overload, voltage fluctuation
- Ideal for: Deep bores, elevated tank fill, off-grid pressure systems
APPLICATIONS
- Deep bores with limited sunlight hours
- High-head stock watering or tank fill
- Off-grid homes, cabins, and remote farms
- Pressure systems with float switch or pressure switch automation
- Locations with unreliable grid access
WARRANTY
- 25-Year Solar Module Warranty
- 10-Year Frame Warranty
- 2-Year Warranty on Pump and Accessories
- Full Local Support + Grundfos Authorised Retailer
