Grundfos SQF 3A-10N 4" Submersible Solar Centrifugal Bore Pump for Shallow Head/High Flow Kit Complete with Panels (Max 83LPM/700kPa)
Grundfos SQF 3A-10N 4" Submersible Solar Pump Kit Complete with Panels (83LPM/700kPa)
| DOWNLOAD PUMP SPECIFICATIONS |
The Grundfos SQF 3A-10N Solar Pump Kit is a high-efficiency, solar-powered water supply solution engineered for sites needing consistent medium to high flow at moderate heads — perfect for off-grid farming, rural tank filling, and irrigation transfer applications. Built around the trusted Grundfos SQFlex platform, the 3A-10N centrifugal pump delivers up to 83 litres per minute at heads up to 70 metres, powered entirely by the sun.
This complete solar kit is ideal for shallow to mid-depth boreholes and comes pre-packaged with everything required for fast, reliable installation — including 455W solar panels, IO 101 interface, CU 202 controller, cable protection, fittings, and a pressure tank system.
The SQFlex system adapts automatically to varying sunlight conditions thanks to integrated MPPT (Maximum Power Point Tracking), while built-in protection features ensure dry-run, over/under voltage, and overload safety, even in demanding environments.

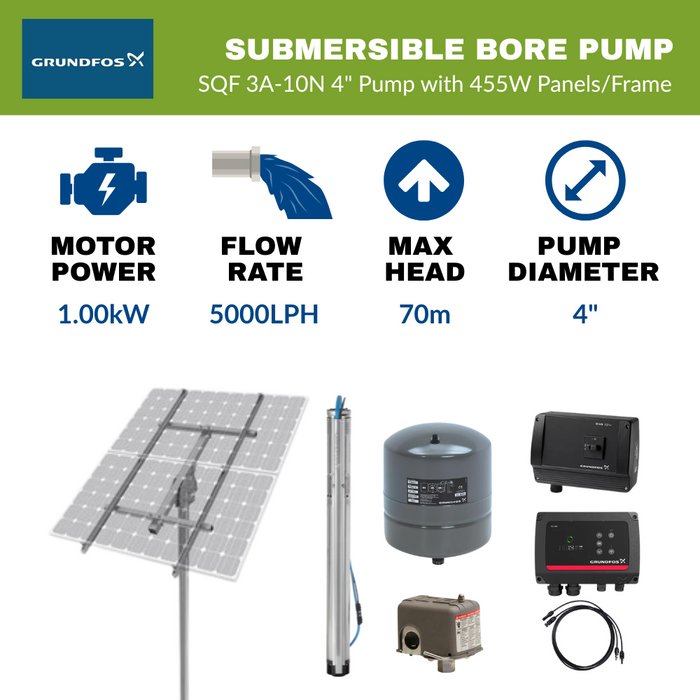

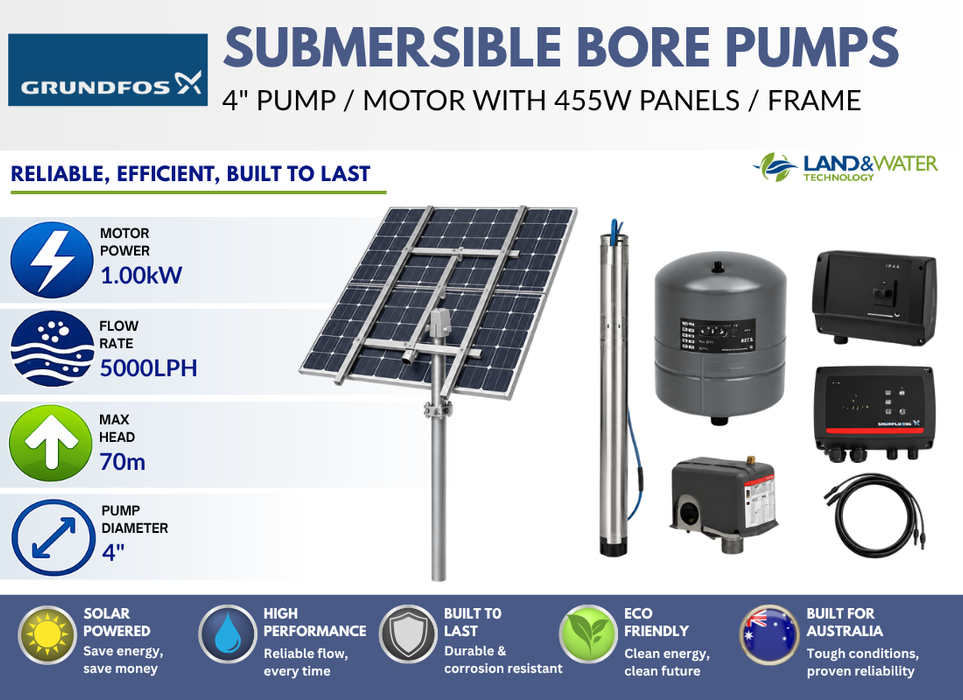

PACKAGED PUMP SYSTEM INCLUDES
- 99612499 SQ Flex 3a-10N 4" pump with base mount anode
- 455W Solar Panels (high-performance mono panels)
- Solar Array Frame & Mounting Pole(s)
- Cable Gaurds
- Plug & Play Connections
- IO 101 (Isolators & Generator Interface)
-
CU 202 (Status & arrows for pressure switch/float switch connection)
- Bore Cap with 5-Way Tee
- Reverse acting pressure switch
- Pressure gauge
- 18 Litre pressure tank
- Earth Stake for grounding
- Free Shipping Australia-Wide
SPECIFICATIONS
- Max Flow: 83 LPM
- Max Head: 700 kPa (70 m)
- Pump Type: Centrifugal
- Wide Voltage Range: 30–300 V DC or 90–240 V AC
- Built-in MPPT: Yes
- Protections: Dry-run, overload, over/under voltage
- Pump Material: Stainless steel 304
- Applications: Off-grid tank filling, medium irrigation loads, shallow bore transfers, homestead water supply
APPLICATIONS
- Large-volume tank filling
- Livestock watering at moderate elevations
- Off-grid horticulture and crop irrigation
- Shallow bore or dam water extraction
- Solar-powered water supply for farms or small communities
WARRANTY
- 25-Year Warranty on Solar Modules
- 10-Year Warranty on Array Frame
- 2-Year Warranty on Pump & Accessories
- Local Grundfos Support Available
