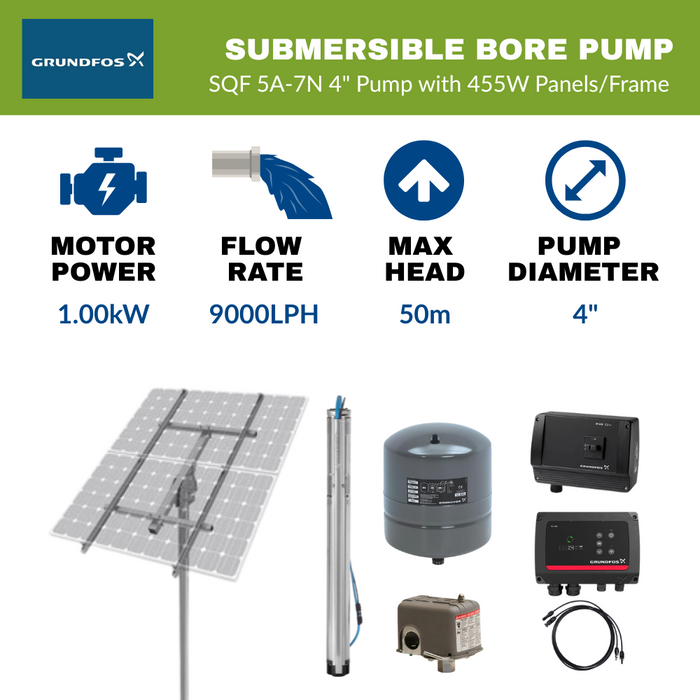

Grundfos SQF 5A-7N 4" Submersible Solar Centrifugal Bore Pump for Shallow Head/High Flow Kit Complete with Panels (Max 150LPM/500kPa)
Grundfos SQF5A-7N 4" Submersible Solar Pump Kit Complete with Panels (150LPM/500kPa)
| DOWNLOAD PUMP SPECIFICATIONS |
The Grundfos SQF 5A-7N Solar Pump Kit is a powerful and efficient off-grid water solution tailored for sites that require high flow rates at lower heads, such as shallow bores, dam transfers, irrigation supply, or large-volume tank filling. This system includes the robust 4" SQF 5A-7N centrifugal solar pump, capable of delivering up to 150 litres per minute at up to 50 metres of head, making it ideal for farms, rural properties, and off-grid installations where daily water volume is a priority.

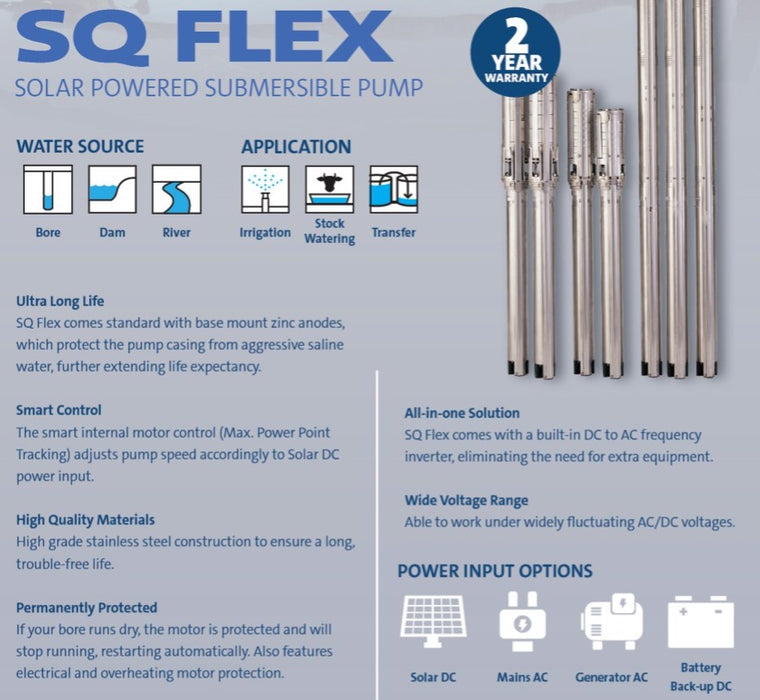

Built on the industry-leading SQFlex platform, the system features built-in MPPT (Maximum Power Point Tracking) for optimal solar harvesting, as well as built-in protections against dry running, overload, and voltage fluctuations. The result is a long-lasting, low-maintenance, and smart pumping solution that adjusts performance based on solar conditions throughout the day.
This plug-and-pump solar kit includes everything needed for a fully functional installation — from solar panels and mounting frames to electrical controllers, pressure accessories, and fittings — making setup quick, safe, and reliable for any Australian off-grid water application.

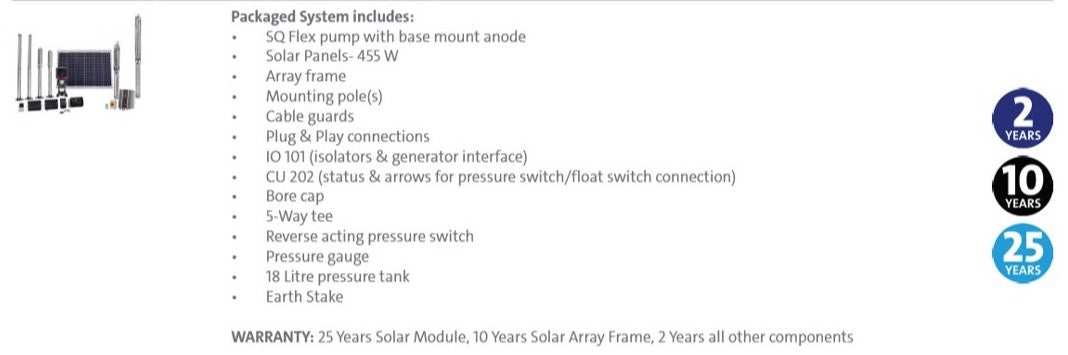

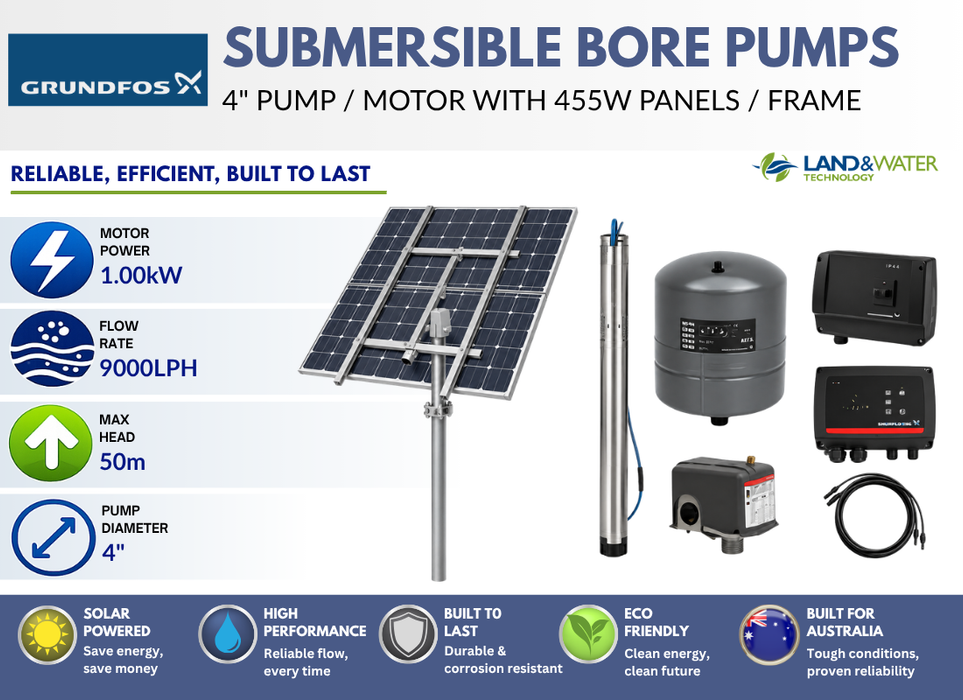

PACKAGED PUMP SYSTEM INCLUDES
- 99612834 SQ Flex 5A-7N 4" pump with base mount anode
- 455W Solar Panels (high-performance mono panels)
- Solar Array Frame & Mounting Pole(s)
- Cable Guards
- Plug & Play Connections
- IO 101 (Isolators & Generator Interface)
- Bore cap
- 5-Way tee
- Reverse acting pressure switch
- Pressure gauge
- 18 Litre pressure tank
- Earth Stake
- Free Shipping Australia-Wide

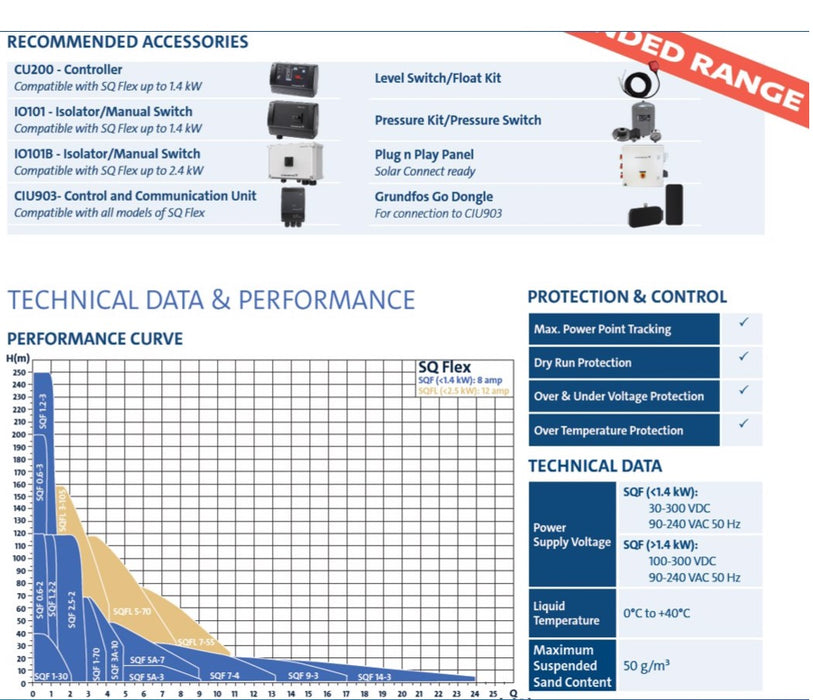

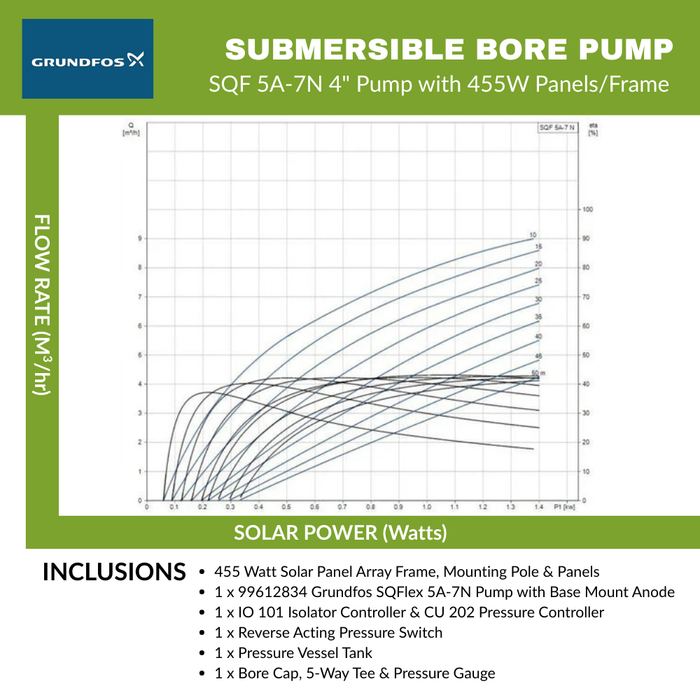

SPECIFICATIONS
- Max Flow: 150 LPM
- Max Head: 500 kPa (50 m)
- Pump Type: Centrifugal
- Voltage Range: 30–300 V DC or 90–240 V AC
- Construction: 304SS with corrosion-resistant components
- Protections: Dry-run, overload, over/under voltage
- Built-in MPPT: Yes
- Ideal for: High flow to tanks, shallow bore transfer, rural irrigation systems
APPLICATIONS
- Large-volume tank filling
- Livestock watering at moderate elevations
- Off-grid horticulture and crop irrigation
- Shallow bore or dam water extraction
- Solar-powered water supply for farms or small communities
WARRANTY
- 25-Year Warranty on Solar Modules
- 10-Year Warranty on Array Frame
- 2-Year Warranty on Pump & Accessories
- Local Grundfos Support Available
