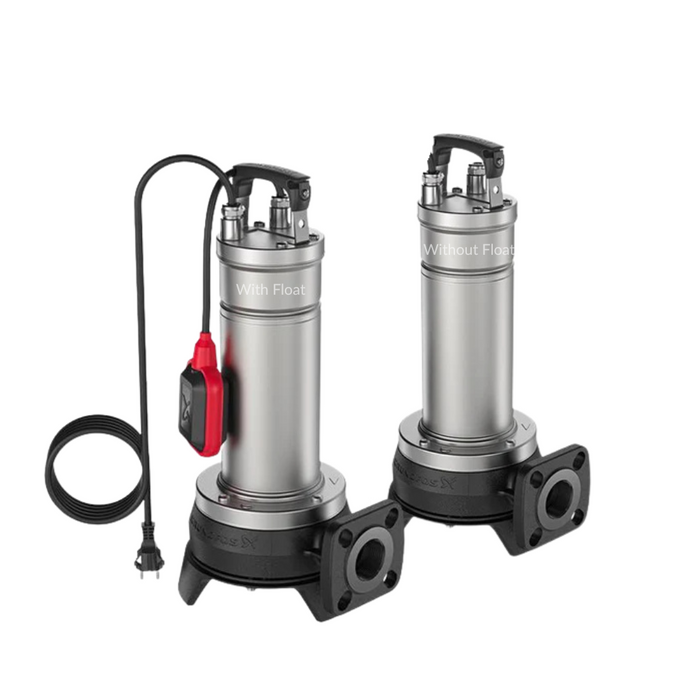

Grundfos Unilift APG.40.10.A1 Submersible Drainage Wastewater Macerator Pump 240v

The Grundfos Unilift APG.40.10.A1 is a compact, high-performance submersible grinder pump engineered to handle domestic wastewater and blackwater in pressure sewer systems. Designed for residential sewage applications, it features a powerful integrated grinder system that shreds solids into fine particles, allowing wastewater to be pumped through narrow-diameter discharge pipes — ideal for properties without access to traditional gravity sewer systems.

Built for reliability, the APG is constructed from robust cast iron and corrosion-resistant stainless steel, with a smooth exterior that prevents buildup of fats and solids. The wear-resistant grinder impeller is housed within a cast iron volute and powered by a high-speed 1.3 kW motor with thermal protection and IP68 submersible rating for long-term performance in challenging pit conditions.

The APG.40.10.A1 is supplied with a 10 m power cable, Schuko plug, and a DN32/DN40 threaded outlet for easy connection. It’s compatible with auto-coupling guide rail systems for hassle-free installation and removal — especially suited for retrofits and new builds in difficult terrain.

FEATURES

• Powerful integrated grinder system cuts solids into fine particles
• Ideal for pumping domestic blackwater and sewage in pressurised systems
• Suitable for homes without access to gravity sewer connections
• Quiet, high-efficiency single-phase 240 V motor (1.3 kW P1 / 1 kW P2)
• Compact design with DN32/40 discharge and 10 m power cable
• Auto-coupling compatible for fast pit serviceability
• IP68-rated motor enclosure with Class F insulation
• Durable cast iron pump housing and motor casing
• Smooth pump surface to reduce dirt and fat build-up
• Low clogging risk — handles solids up to 40 mm
• Designed for submerged installation up to 7 m depth

APPLICATIONS

• Single-family and dual-occupancy homes
• Off-grid or remote domestic sewage systems
• Properties with low-lying bathrooms or basements
• Pressure sewer pumping from septic tanks or pits
• Areas with large terrain-level differences

TECHNICAL DATA

MATERIALS

INSTALLATION

ELECTRICAL DATA
