Hunter Node 100BT DC Battery Operated Irrigation Controller with PGV-101G-B and DC Coil with Bluetooth Connection

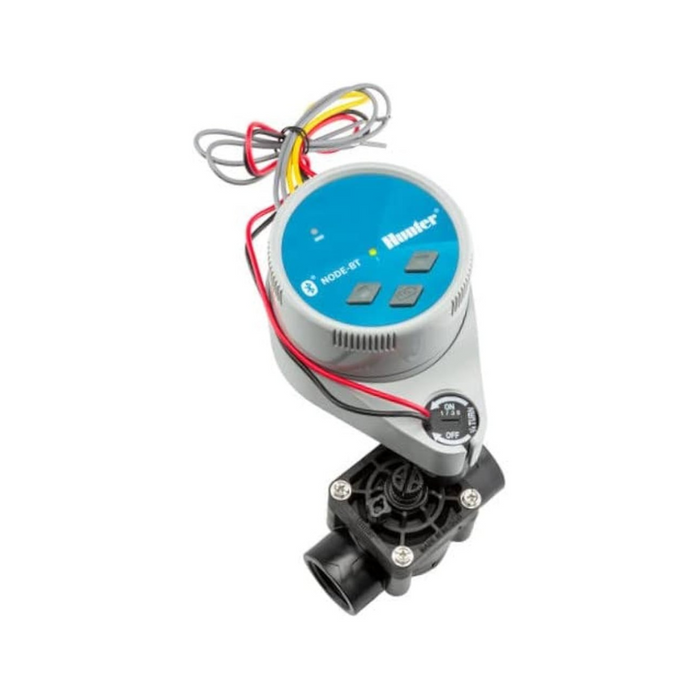

Includes Hunter Node 100 1 Station & PGV100DC Valve

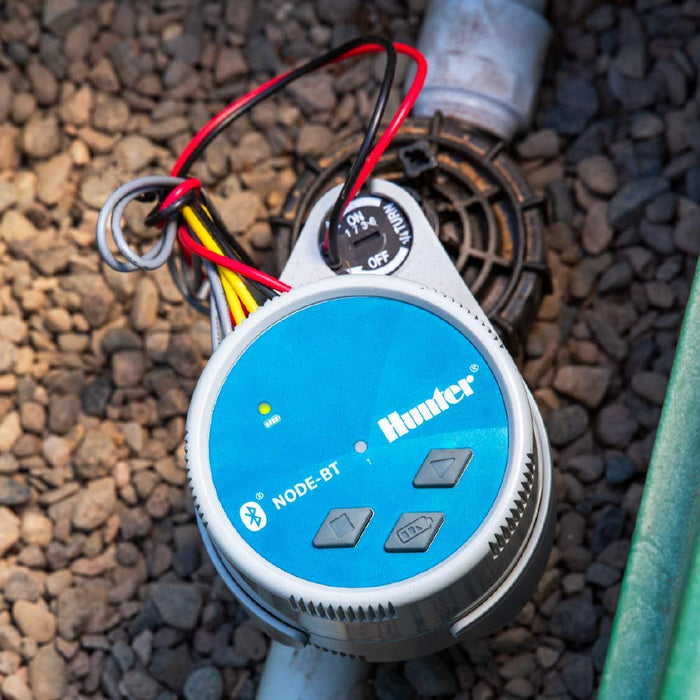

Take full control of your irrigation system without ever opening a valve box. The Hunter Nodebt 100BT is a single-station, battery-powered controller equipped with Bluetooth® connectivity, allowing for fast, wireless programming via your smartphone. This package includes the Hunter PGV-101G-B 25mm FBSP solenoid valve with a factory-installed DC latching coil—perfect for areas without access to AC power.

Designed with rugged, waterproof construction (IPX6 rated), the Node-BT is ideal for remote, hard-to-access, or power-limited sites such as parks, medians, greenhouses, and temporary installations. Easily mounted on a valve, pipe, flat surface, or inside a valve box, it offers flexible installation in virtually any location.

The Node-BT pairs with Hunter’s smartphone app, allowing you to manage an unlimited number of controllers, schedule run times, receive battery alerts, and even configure programs offline for future deployment. A built-in button also allows for quick manual operation and status checks in the field—no phone required.

FEATURES

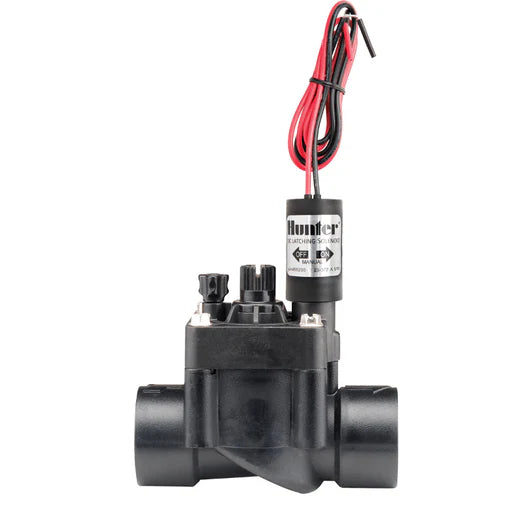

• Includes Hunter PGV-101G-B 25mm FBSP valve with DC latching solenoid
• Bluetooth®-enabled for wireless control via smartphone (up to 15 m line-of-sight)
• Operates on 2 x AA 1.5V alkaline batteries (included)
• 1 station, with 3 programs and 8 start times per program
• Adjustable run times from 1 second to 12 hours
• Active station and battery-life LED indicators
• Waterproof design (IPX6) for outdoor valve box installations
• Manual push-button operation without a phone
• Passcode protection to prevent unauthorized changes
• Mounts in 5 ways: valve solenoid, pipe, flat surface, inside valve box, or controller stake
• Suspend irrigation up to 99 days during off-seasons
• Cycle and Soak mode prevents runoff in compact or sloped areas
• Delay Between Stations setting for slow-closing valves or pump recharge times
• Compatible with soil moisture sensors for LEED or precision agriculture applications
• Monthly and global seasonal adjustment for fast schedule changes
• 2-year warranty


APPLICATIONS

• Agricultural landscapes

• Construction sites

• Greenhouses and hydroponics

• Highway and street landscapes

• LEED buildings and green roofs

• Mitigation projects

• Nurseries and parks

• Raised landscapes

• Temporary irrigation

OPERATING SPECIFICATIONS

• Two 1.5V AA alkaline batteries (included)
• Flow rate: 0.031 to 64 LPM (1.9 to 3,860 LPH)
• Recommended pressure: 0.5 to 8 bar (50 to 800 kPa)
• Approvals: Plastic IPX6, Bluetooth 4.2 BLE, UL, c-UL, FCC, CE, RCM
• Warranty period: 2 years

APP SPECIFICATIONS

• iOS® 9.0 or above
• Android™ 5.0 or above
• Maximum communication distance: 10 m
