Dorot S100 B Series Cast Iron Basic Hydraulic Angle Valves with 3-Way Selector

The Dorot S100 B Series Cast Iron Angle Valve with 3-Way Selector is a heavy-duty hydraulic valve designed for on/off or modulating flow control in agricultural irrigation systems, water distribution networks, and filtration stations. Its 90° angle-pattern body offers a compact footprint and eliminates the need for additional elbows—making it ideal for tight installations and minimizing pressure losses.

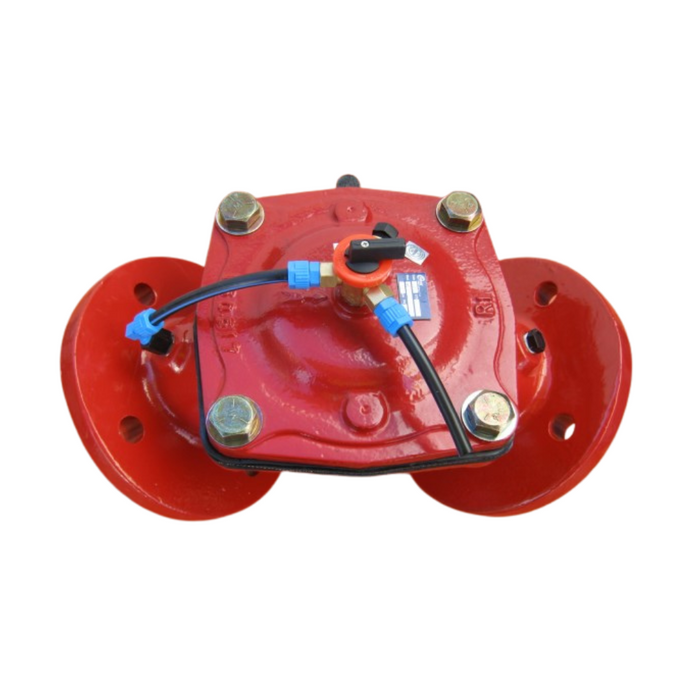

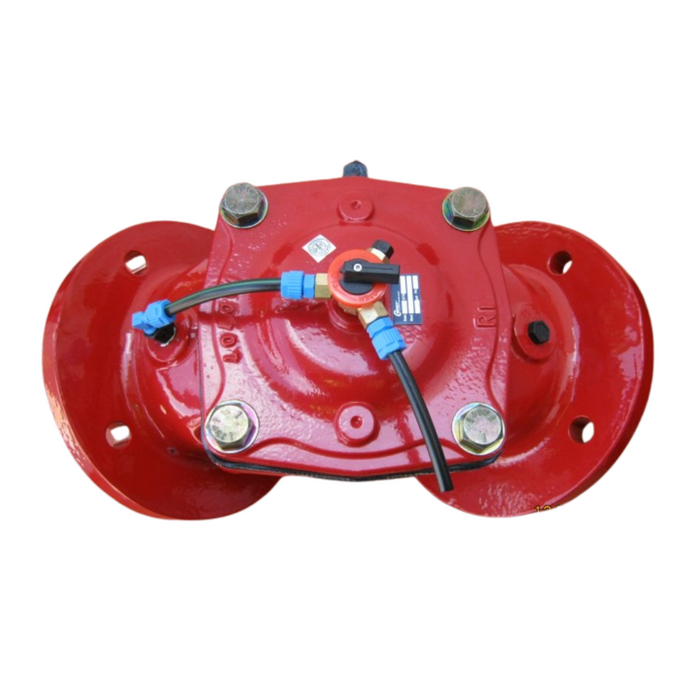

This model is equipped with a built-in 3-way manual selector, allowing operators to easily switch between automatic, manual open, and manual close modes. This feature enables quick manual operation in the field—ideal for commissioning, testing, or override during maintenance or power outages—without needing disassembly or external tools.

Manufactured from rugged cast iron and built around Dorot’s proven diaphragm-sealing technology, the valve ensures reliable, tight shut-off and long-term performance in challenging environments, including systems with sediment or aggressive water chemistry.

FEATURES

• Function: Hydraulic On/Off Control with Manual 3-Way Selector
• Body Design: Angle-pattern body for compact installation and reduced pressure loss
• Available Sizes: DN50 to DN150 (2" – 6")

• Control Chamber Volume: 70 cc to 1800 cc depending on size
• Max Fluid Temperature: 60°C (140°F)
• End Connections: Threaded, Flanged
• Body Material: Cast Iron
• Bonnet: Cast Iron
• Diaphragm: Reinforced Natural Rubber (optional: NBR, EPDM, Neoprene)
• Spring: Stainless Steel 302
• Coating: Polyester Epoxy, Rubber, or Nylon

BENEFITS

• Built-in 3-way selector for easy manual override and field control
• No electrical power required for switching between modes
• Direct-sealing diaphragm ensures tight shut-off and minimal leakage

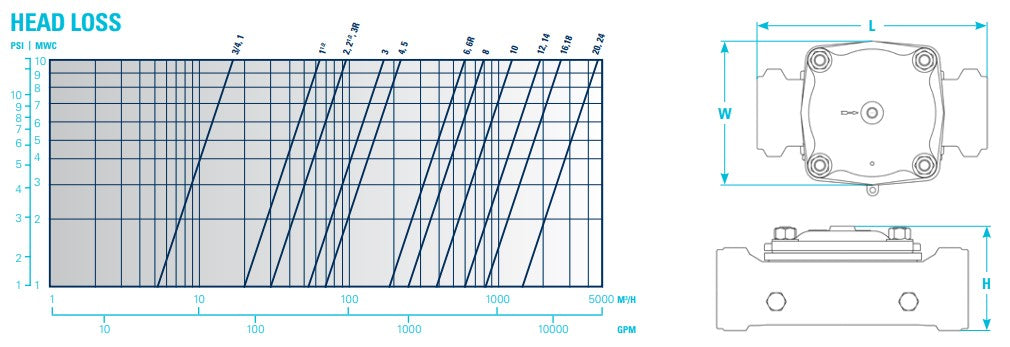

• Outstanding flow rates with ultra-low head losses
• Heavy-duty cast iron construction for durability in harsh environments
• Maintenance-friendly design with no internal shafts or seals
• Suitable for open-field irrigation, filtration systems, and remote water delivery points
